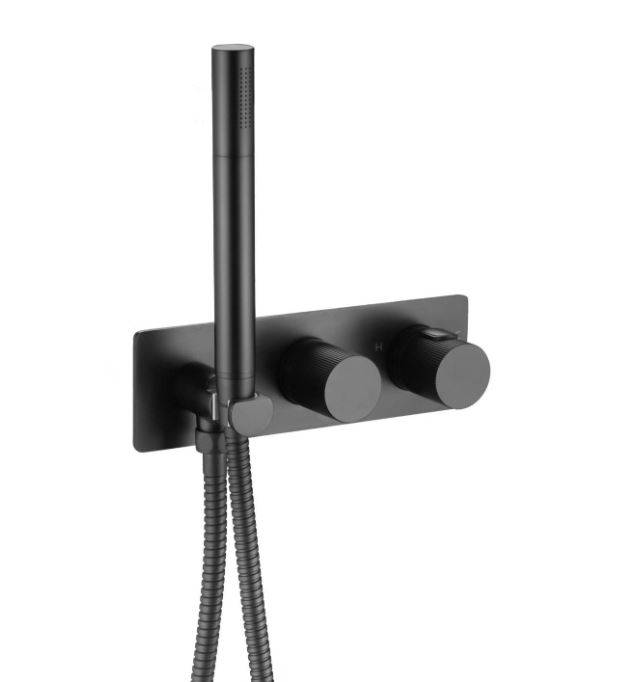

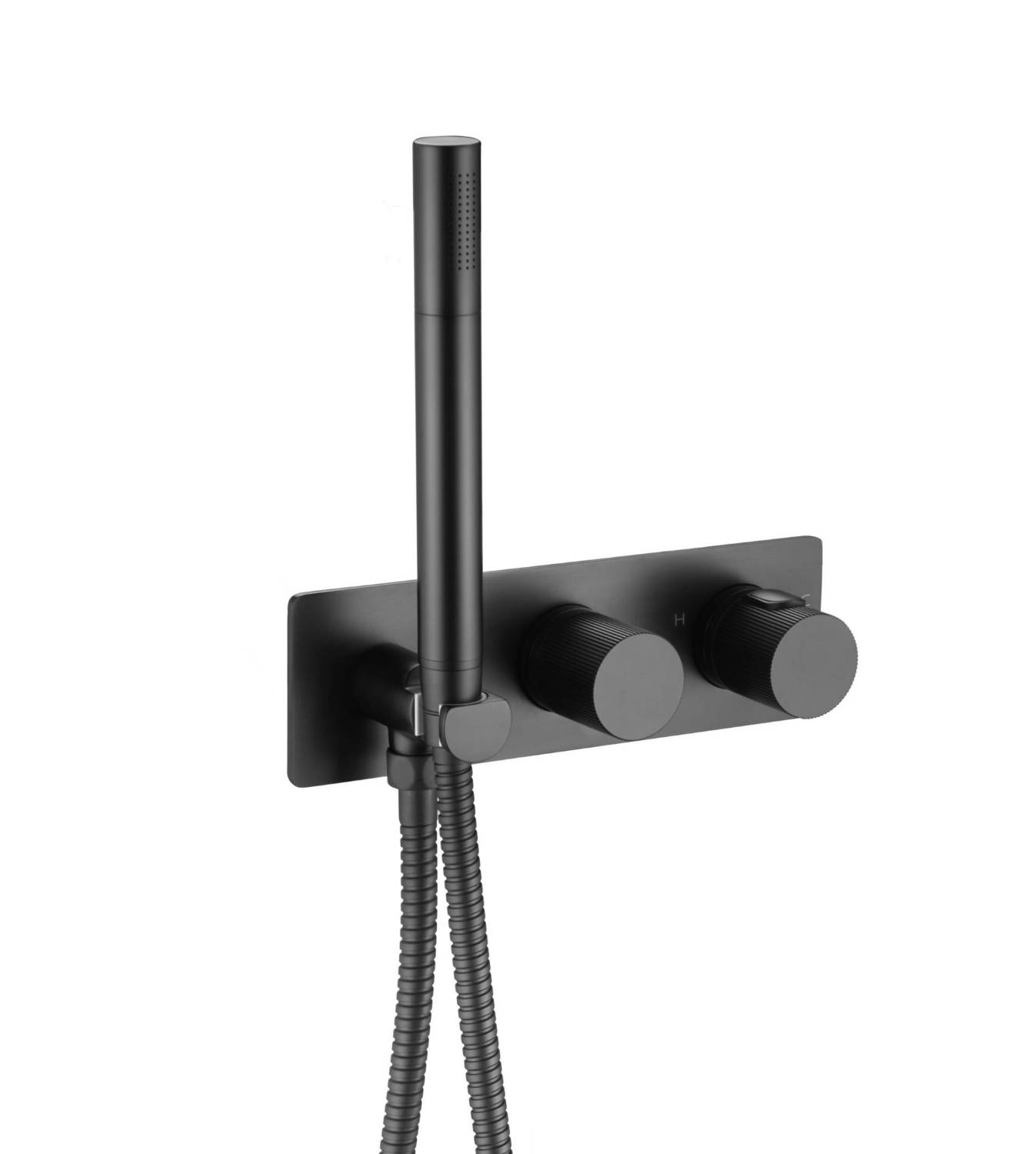

EVO Thermostatic Concealed 2 Outlet Shower Valve with Attached Handset

Name: EVO Thermostatic Concealed 2 Outlet Shower Valve with Attached Handset
Brand: JTP UK
SKU: 3TsBZ7NdMH4upb8o3Yt6PU

Verified by manufacturer 17 days ago

Matt Black Finish – 68868MB

JTP UK

EVO concealed two outlet thermostatic shower valve with hand shower.

Jump to:

+44 1895 442211 Website

Application

Suitable for wall mounting for showers.

Description

EVO Thermostatic Concealed 2 Outlet Shower Valve is a mixing valve concealed behind a control plate with various finishes with two outlets and an integrated hand shower.

Features and benefits:

Two outlets.
Optional finishes.
Concealed valve.
Hand shower.

General information

Color	Black Gold Silver Bronze
Finish	Matt Brushed Chrome Bronze
Material	Brass
Shape	Rectangle
Length	240 mm
Width	149 mm
Height	75 mm
Warranty description	Five year Guidance for specification option: Cartridges warranty period. 15 year Guidance for specification option: Product warranty period.

Uniclass	Pr_40_20_87_81 Shower thermostatic water supply setsPrimary
CAWS	N13/42 Shower mixer valves N13/40 Shower units N13/375 Shower units

Specification data - Shower thermostatic water supply sets

Approvals	Water Regulations Approval Scheme (WRAS)-approved.
Form	Concealed wall-mounted thermostatic shower mixer valve with integrated hand shower.
Materials	-
Body	Brass.
Finish and colour	Electroplated, matt black.
Flow rate (maximum)	Hand shower: 17.3 L/min at 5 bar. Outlet: 25.1 L/min at 5 bar. Guidance for specification option: See manufacturers literature for flow rates at lower pressures.
Water supply temperature (maximum)	User-controlled.
Integral accessories	Hand shower with integrated holder.
