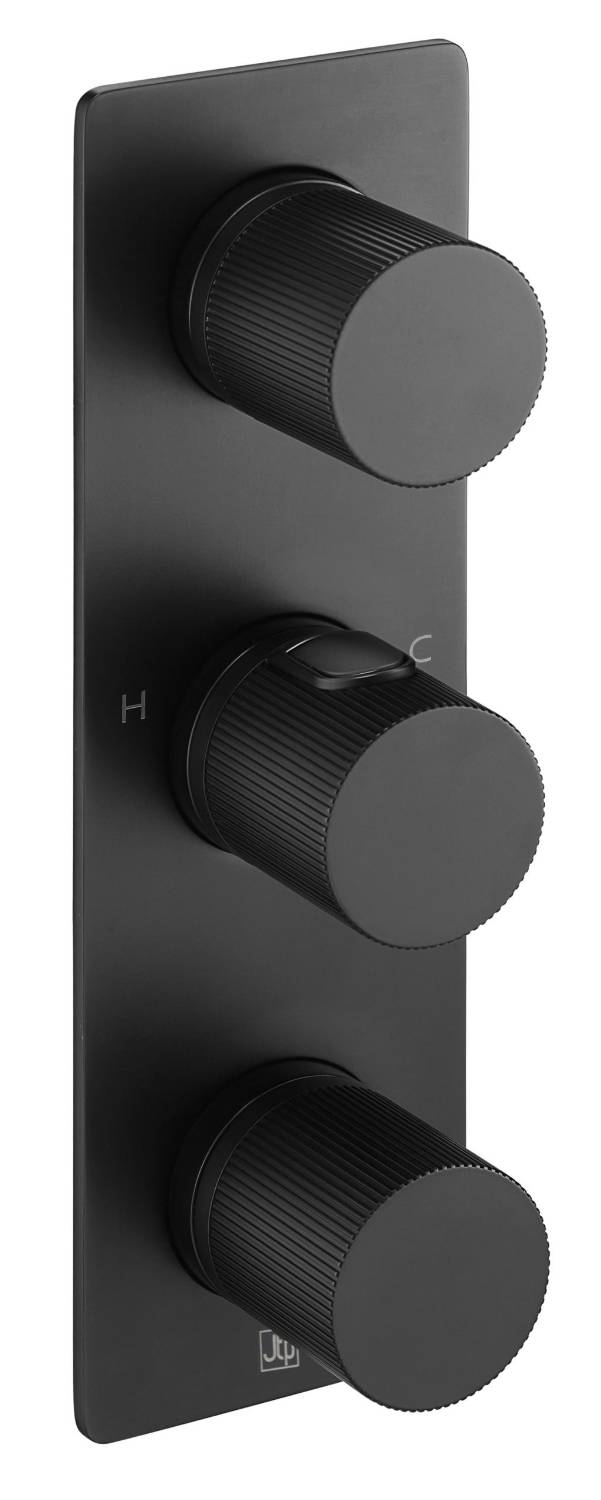

EVO Thermostatic Concealed 3 Outlet Shower Valve

Name: EVO Thermostatic Concealed 3 Outlet Shower Valve
Brand: JTP UK
SKU: uxEbAbNADMp6DPiWvtyzZE

Verified by manufacturer 17 days ago

Matt Black Finish – 68691MB

JTP UK

EVO concealed three outlet shower valve.

Jump to:

+44 1895 442211 Website

Application

Suitable for showers.

Description

EVO Thermostatic Concealed 3 Outlet Shower Valve is a mixing valve concealed behind a control plate with various finishes and the valve also has three outlets.

Features and benefits:

Three outlets.
Optional finishes.
Concealed valve.

General information

Color	Bronze Black Silver Gold
Finish	Brushed Matt Chrome Bronze
Material	Brass
Shape	Rectangle
Length	75 mm
Width	90 mm
Height	240 mm
Warranty description	Five year 15 year

Uniclass	Pr_40_20_87_81 Shower thermostatic water supply setsPrimary
CAWS	N13/42 Shower mixer valves N13/40 Shower units N13/375 Shower units

Specification data - Shower thermostatic water supply sets

Approvals	Water Regulations Approval Scheme (WRAS)-approved.
Form	Concealed wall-mounted thermostatic shower mixer valve.
Materials	-
Finish and colour	Powder-coated, matt black.
Flow rate (maximum)	Diverter side: 24.8 L/min at 5 bar. On-Off Side: 25.8 L/min at 5 bar. Guidance for specification option: Adjustable, flow rates at other pressures: Diverter side: 22 L/min at 4 bar. 19.2 L/min at 3 bar. 16.5 L/min at 2 bar. 12.3 L/min at 1 bar. 10.8 L/min at 0.5 bar. On-Off side: 22.9 L/min at 4 bar. 19.8 L/min at 3 bar. 16.2 L/min at 2 bar. 12.3 L/min at 1 bar. 10.9 L/min at 0.5 bar.
Water supply temperature (maximum)	User-controlled.
