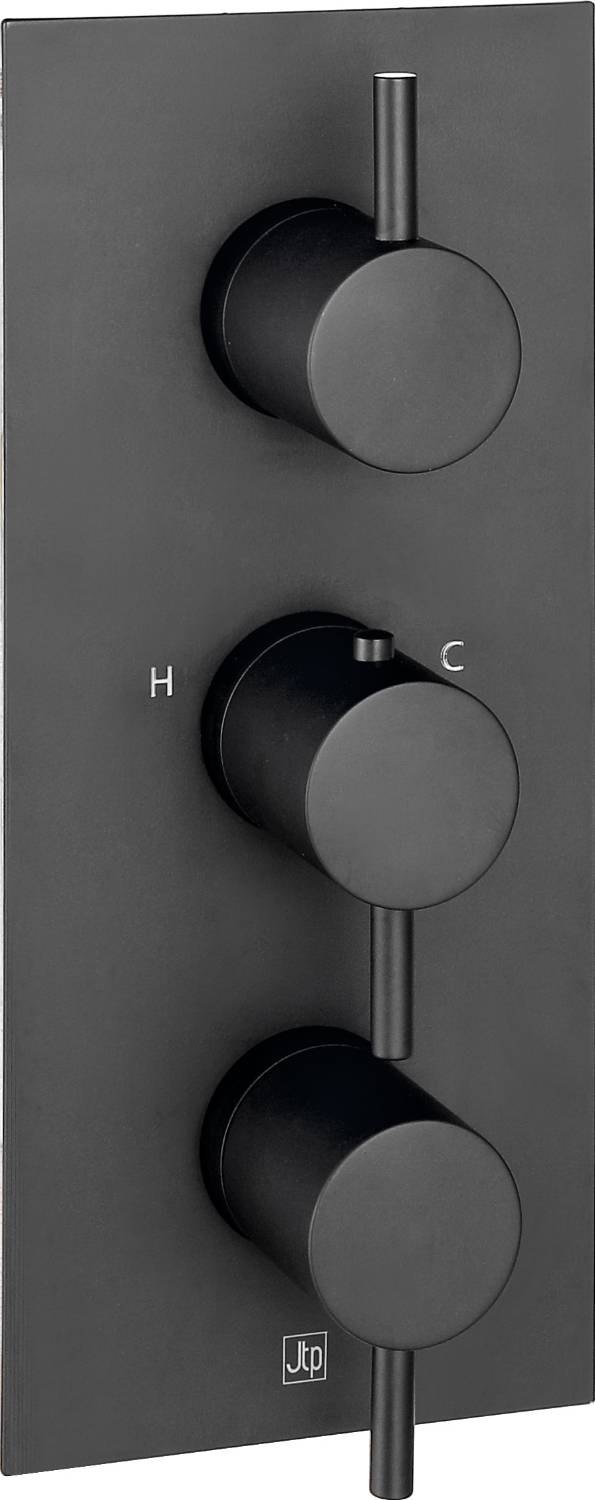

VOS Thermostatic Concealed 3 Outlet Shower Valve Vertical

Name: VOS Thermostatic Concealed 3 Outlet Shower Valve Vertical
Brand: JTP UK
SKU: aEnJauLruqwwJVz1xTJNir

Verified by manufacturer 17 days ago

Matt Black Finish – 28691AMB

A concealed three outlet vertical shower valve.

Jump to:

Application

Suitable for wall mounting in showers.

VOS Thermostatic Concealed 3 Outlet Shower Valve is a vertical mixing valve concealed behind a control plate with various finishes and three outlets.

Features and benefits:

Color	Black Gold Bronze
Finish	Matt Brushed
Material	Brass
Shape	Rectangle
Length	120 mm
Width	153 mm
Height	275 mm
Warranty description	Five year Guidance for specification option: Cartridges warranty period. 15 year Guidance for specification option: Product warranty period.

Uniclass	Pr_40_20_87_81 Shower thermostatic water supply setsPrimary
CAWS	N13/42 Shower mixer valves N13/40 Shower units N13/375 Shower units

Approvals	Water Regulations Approval Scheme (WRAS)-approved.
Form	Concealed wall-mounted thermostatic shower vertical mixer valve with three outlets.
Materials	-
Body	Brass.
Finish and colour	Powder-coated, matt black.
Flow rate (maximum)	Diverter side: 28.5 L/min at 3 bar. On-off side: 36 L/min at 3 bar. Guidance for specification option: Variable, see manufacturer literature for flow rates at lower pressures.
Water supply temperature (maximum)	User-controlled.
