FiberTite® TuffTrac Protection Membrane - Walkway Membrane
Verified by manufacturer 3 months ago

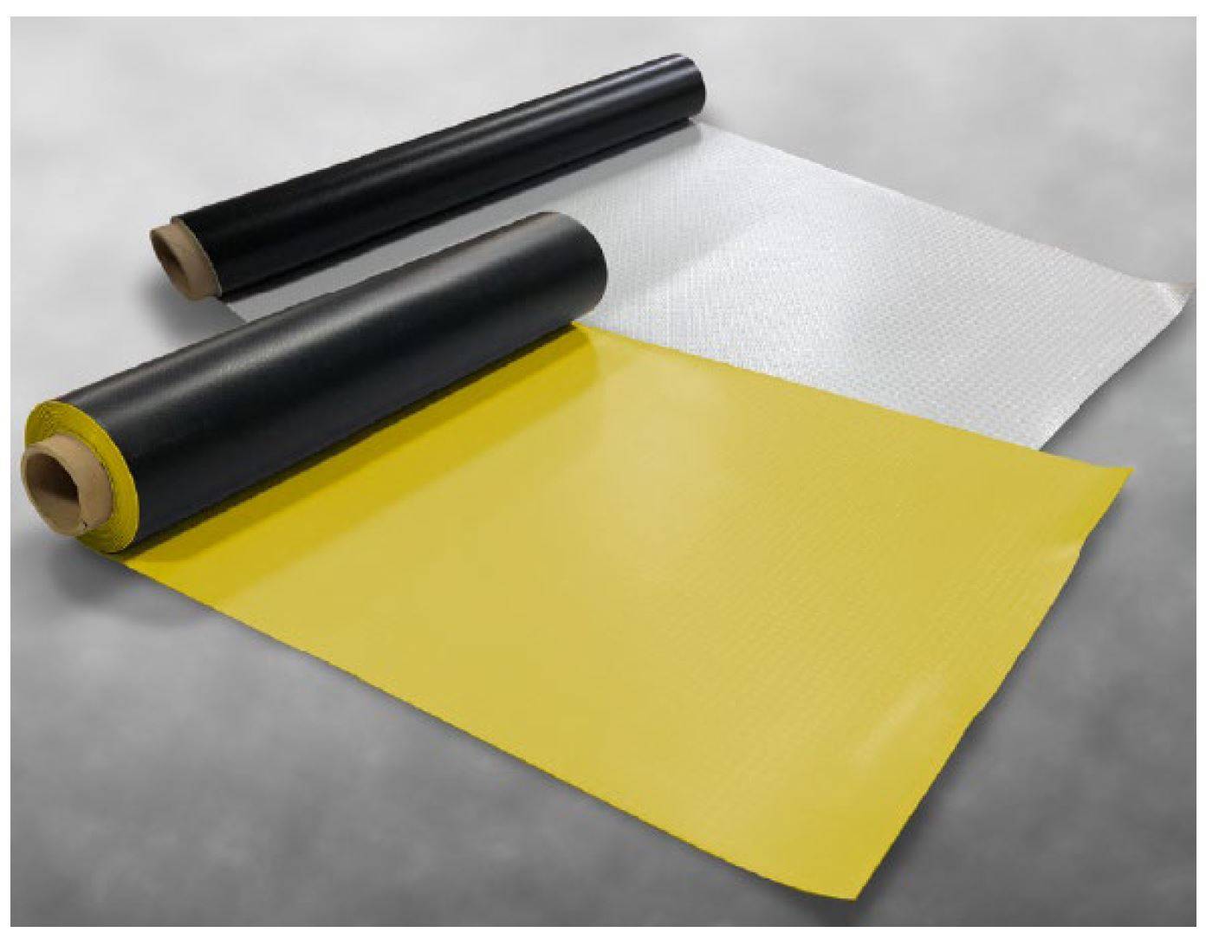

Protection membrane.
Application
FiberTite TuffTrac is used purely as a detail item within a FiberTite roof assembly.
TuffTrac can be used to provide additional protection in areas where there is increased risk of damage from regular servicing, maintenance and repairs of roof top plant and equipment.
Rolls of TuffTrac Protection membrane can easily be cut to various shapes or sizes to facilitate most applications.
The material is also designed to be continuously welded directly to the FiberTite roofing membrane using appropriate hot air welding equipment, set at the correct welding temperature.
Description
FiberTite® TuffTrac Protection membrane is designed to offer additional protection from potential damage caused by additional foot traffic, dropped tools and/or mishandled equipment.
FiberTite KEE TuffTrac is a high strength, textile-reinforced protection membrane featuring ELVALOY™ Ketone Ethylene Ester (KEE) formulation.
Available in high visibility yellow it can be used as a demarcation membrane to help provide warning at roof steps or perimeter edges. CE marked.
General information
Color | Yellow |
Finish | Embossed |
Material | Plastic |
Shape | Rectangle |
Length | 30480 mm |
Width | 760 mm |
Height | 1.52 mm Guidance for specification option: Thickness. |
Warranty description | Manufacturer guidance15, 20 or 25 years. Part of the MOY FiberTite System Warranty. |
Uniclass | |
CAWS | J42/380 Protection layer |
Specification data - Plastics sheets
Material | ELVALOY™ Ketone Ethylene Ester (KEE). |
Purpose | Protection layer. |
Physical properties | |
Colour | Grey.Yellow. |
Weight (minimum) | 1.7 kg/m². |
Dimensions | |
Thickness (minimum) | 1.52 mm. |
Width (minimum) | 0.76 m. |
Roll length (minimum) | 30.48 m. |
Dimensional stability | 0.5% (maximum). |
Puncture resistance | 56.7 kg. |
Sustainability data
Contains Red List materials | Yes |
Country of material origin | United States |
Country of product manufacture | United States |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | Manufacturer guidanceSynthetics generally: 120 MJ/kg (University of Bath) |
Recyclability | The by-products of the manufacturing process could be recycled internally. Where membranes have become contaminated by external agents during service, they may be downcycled into other products or utilised in roof overlays. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 6 % |
Literature
FiberTite® Brochure
FiberTite® TuffTrac Protection TDS
