Fingersafe® MK1A and MK1B Door Guard Set - Set of door finger guards

Verified by manufacturer 6 months ago

Fingersafe® Group

Door finger protection pack to protect both sides of a conventional standard door frame.

Jump to:
BOS
+44 (0)1268 777733 Website

Application

  • Standard and heavy door types.
  • For both sides of a conventional standard door frame.
  • Can be used for classroom doors.

Description

Inconspicuous and easy to install finger pinch protector guards for both sides of door hinges designed to prevent fingers being trapped in opening and closing doors.


The pack features the Fingersafe® MK1A for the push side, hinge opening (the larger gap) and the Fingersafe® MK1B for the pull hinge pin side (rear or back of the door).


Features and benefits:

  • Quick and easy installation.
  • Multiple colours available.
  • Opening angle of up to 180°.
  • Will fit wood, aluminium and metal that have a standard type frame and will allow the door to open 180 degrees and folds flat against the full length of the frame on butt hung doors to a maximum opening of 12.5 cm (5 in). Blending in neatly with existing door hardware.
  • Will work on rise and fall hinges.
  • Can be trimmed to fit all sizes up to 2032 mm.
  • High impact resistance and easily cleaned with common household cleaners.
  • Approved for use in any four-hour fire-rated door assembly and UL classified.
  • Can be retrofitted to create a safe hinge on the door cavity gap.
  • Full installation instructions, screws and fixing strips are included.
  • This door safety pack guards, shields and prevents serious injury every time.
  • Can prevent children and adults from the suffering caused by door hinge trapping of fingers.

General information

Color

Material

PVC-U

Length

2032 mm

Warranty description

Two year

Uniclass

Pr_30_36_36_04 Anti-finger trap stilesPrimary

CAWS

L20/55 Doorsets

L20/480 Doorsets

Specification data - Anti-finger trap stiles

Material

PVC-U and TPE.

Colour

Brown.

Grey.

White.

Caramel.

Yellow.

Black.

Length

2032 mm.

Form

Continuous removable full length doorstop.

FireRating

UL25KL.

Sustainability data

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit

Revit 2015

2

IFC

IFC2X3

2

Literature

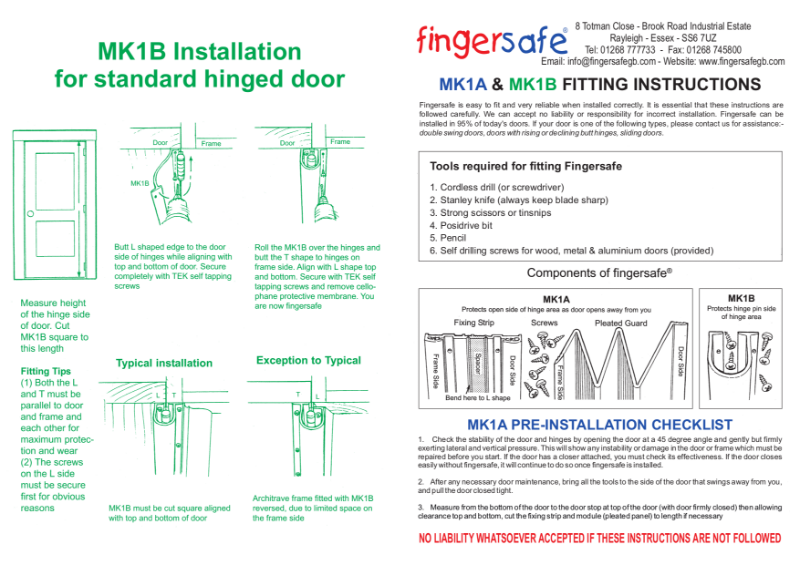

Fingersafe® MK1A and MK1B Fitting Instructions

Fingersafe® MK1A and MK1B Fitting Instructions

Fingersafe®  Product Brochure

Fingersafe® Product Brochure
