Fingersafe® MK1C uPVC Door Guard - Finger Guard - uPVC, Metal and Flush Fit

Verified by manufacturer 4 months ago

Fingersafe® Group

Door guard for PVC-U doors.

Jump to:
BOS
+44 (0)1268 777733 Website

Application

Commercial and domestic doors.

Description

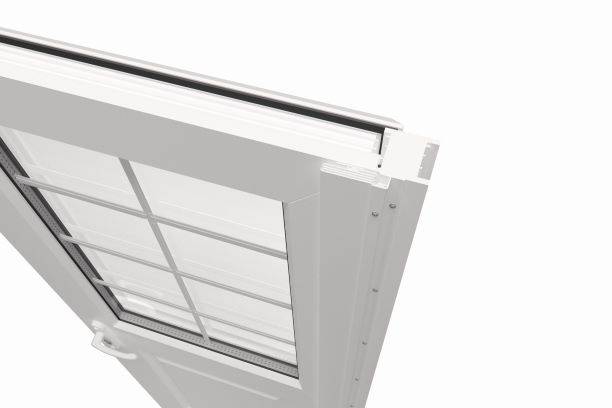

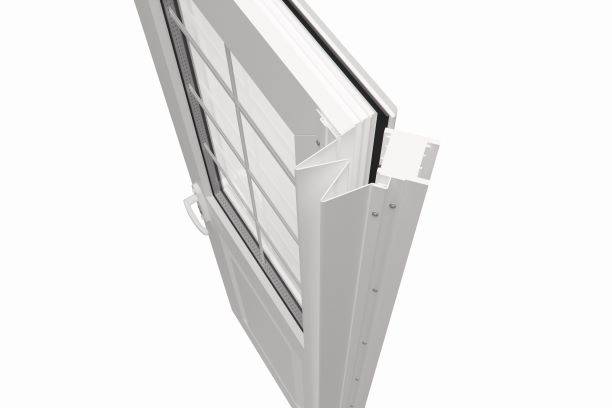

An easy to install finger guard for door hinges (including those equipped with flag and cylinder type) designed to prevent trapping injuries in the opening and closing of a uPVC door with a wider opening.


Features and benefits:

  • Quick and easy installation.
  • Multiple colours available.
  • Opening angle of up to 90°.
  • Can be trimmed to fit all sizes up to 2032 mm.
  • Has a unique fixing strip which keeps the product flat against the door and protects fingers every time.
  • Offers no resistance or restriction to the door operation.
  • Prevents finger entrapment in the opening hinge side of a door and is fit for purpose.
  • The finger guards are installed via a fixing strip which allows easy access to the hinge for maintenance.
  • High impact resistance and easily cleaned with common household cleaners.
  • Full installation instructions, screws and fixing strips are included with every order.
  • Piano hinge compatible.

General information

Color

Black

White

Grey

Brown

Material

PVC-U

Guidance for specification option:

Unplasticized polyvinyl chloride.

Length

2032 mm

Warranty description

Two year

Uniclass

Pr_30_36_36_04 Anti-finger trap stilesPrimary

CAWS

L20/55 Doorsets

L20/480 Doorsets

Specification data - Anti-finger trap stiles

Material

PVC-U.

Colour

Black.

Guidance for specification option:

768114953024.

White.

Guidance for specification option:

768114953277.

Dark grey.

Guidance for specification option:

768114953130.

Light grey.

Guidance for specification option:

76811495317.

Brown.

Guidance for specification option:

768114953055.

Execution

Fasteners for hardware.

Length

2032 mm.

Form

Continuous removable full length doorstop.

FireRating

UL25KL.

Sustainability data

Country of product manufacture

United Kingdom

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC

IFC2X3

2

Revit

Revit 2015

2
