Fingersafe® MK1A Door Guard

Verified by manufacturer 6 months ago

Fingersafe® Group

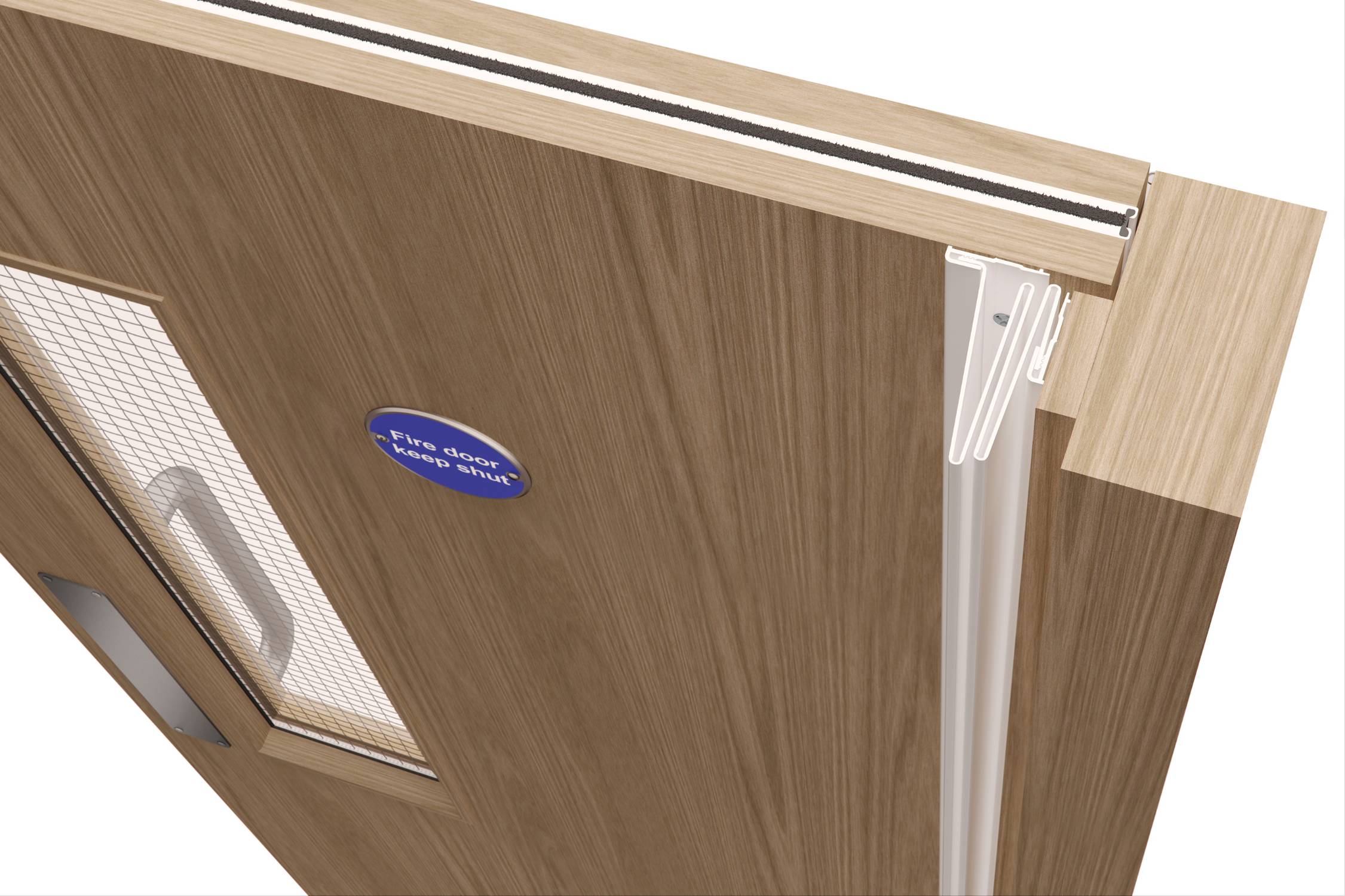

Door finger protection guard for push side of a standard door.

Jump to:
BOS
+44 (0)1268 777733 Website

Application

Heavy door types.

Description

An inconspicuous and easy to install finger pinch protector guard for door hinges designed to prevent fingers being trapped in opening and closing doors.


Features and benefits:

  • Quick and easy installation.
  • Multiple colours available.
  • Opening angle of up to 180°.
  • Will fit wood, aluminium and metal that have a standard type frame and will allow the door to open 180 degrees and folds flat against the full length of the frame on butt hung doors to a maximum opening of 12.5 cm (5in). Blending in neatly with existing door hardware.
  • Will work on rise and fall hinges.
  • Can be trimmed to fit all sizes up to 2032 mm.
  • High impact resistance and easily cleaned with common household cleaners.
  • Approved for use in any four-hour fire rated door assembly and UL classified.
  • Can be retrofitted to create a safe hinge on the door cavity gap.
  • Full installation instructions, screws and fixing strips are included.

General information

Color

Material

PVC-U

Guidance for specification option:

Polyvinyl chloride.

Length

2032 mm

Warranty description

Two year

Uniclass

Pr_30_36_36_04 Anti-finger trap stilesPrimary

CAWS

L20/55 Doorsets

L20/480 Doorsets

Specification data - Anti-finger trap stiles

Material

PVC.

Colour

Black.

Brown.

Caramel.

Cream/ivory.

Dark blue.

Dark grey.

Light grey.

Red.

White.

Yellow.

Execution

Fasteners for hardware.

Length

1930 mm.

2032 mm.

Form

Continuous removable full length doorstop.

FireRating

UL25KL.

Sustainability data

Country of product manufacture

United Kingdom

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit

Revit 2015

2

IFC

IFC2X3

2
