Flat Soffit - Soffit System

Verified by manufacturer 1 month ago

Seamless Aluminium Group Third party certifications:
  • ISO 9001 Quality Management

    Certificate type

Soffit systems designed and manufactured to provide the essential architectural features appropriate to any designed building.

Jump to:
+44 (0) 121 765 4355 Website

Application

Suitable for providing the essential architectural features appropriate to any designed building.

Description

Seamless Aluminum Groups Soffit Systems are designed and manufactured to provide the essential architectural features appropriate to any designed building.


Features and benefits:

  • Can be mounted horizontally or vertically, tongue and groove design.
  • Available in a range of shapes and sizes and are all manufactured on site in Ballyshannon, Co Donegal in marine grade aluminium to ensure its high quality.
  • Life expectancy of 40 years or more in under rural and suburban conditions and in excess of 25 years in industrial and marine conditions.
  • Special requirements can be accommodated.
  • Matching fascia available, specified separately.

General information

Color

Finish

Mill

Powder-coated

Material

Aluminium

Guidance for specification option:

Grade EN AW-1050A H14.

Shape

Rectangle

Length

Bespoke

Width

20 mm

Guidance for specification option:

Minimum.

1500 mm

Guidance for specification option:

Maximum.

Bespoke

Height

0.7 mm

0.9 mm

1 mm

2 mm

3 mm

Warranty description

20 year

Uniclass

Pr_65_50_35_02 Aluminium combined fascias, soffits and guttersPrimary
Pr_35_90_30_01 Aluminium flashings

CAWS

R10/13 Combined fascia, soffit and gutter

R10/321 Combined fascia, soffit and gutter

Specification data - Aluminium combined fascias, soffits and gutters

Form

Soffit.

Soffits

-

Profile

Rectangular, smooth.

Rectangular, smooth with central perforated section.

Guidance for specification option:

11.7 mm continuous air flow.

Size

-

Manufacturer guidance

Insert requirements.

  • Length: up to 3000 mm.
  • Width: 20–1500 mm.

Thickness or gauge

0.7 mm.

0.9 mm.

1 mm.

2 mm.

3 mm.

Finish

Mill finish.

Powder coating to BS EN 12206-1.

Colour

Natural.

RAL 9016 Traffic White.

RAL 9005 Jet Black.

RAL 7015 Slate Grey.

RAL 7016 Anthracite Grey.

Seamless Brown.

RAL, other.

Guidance for specification option:

Consult manufacturer for options and insert requirements.

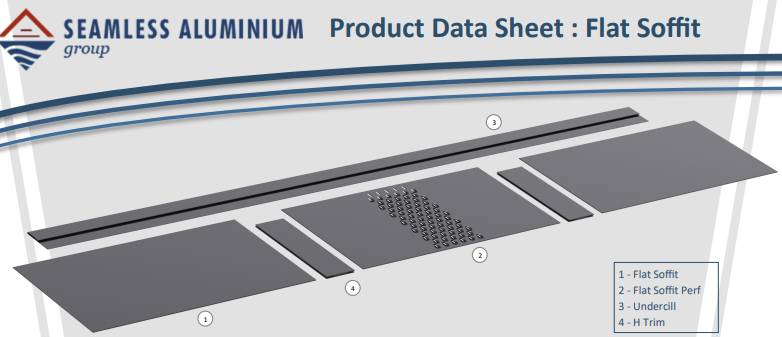

Integral accessories

Not required.

Heavy duty undercill.

H trim.

Undercill.

Fire rating

To EN 13501-1:2007 + A1:2009.

Manufacturer guidance

Non-combustible.

Sustainability data

Contains Red List materials

No

Country of material origin

Norway

Country of product manufacture

Ireland

Material

Aluminium

Guidance for specification option:

Grade EN AW-1050A H14.

Manufacturing plant location

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %

Expected Life

40 year

Guidance for specification option:

  • 40 years in rural and suburban conditions.
  • In excess of 25 years in industrial and marine conditions.

Third party certifications

ISO 9001 Quality Management

ISO 9001 Quality Management

iso cert
