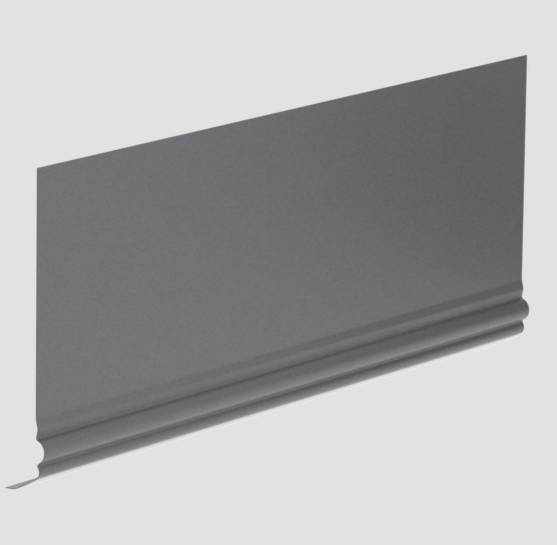

Ogee Fascia - Fascia System
Verified by manufacturer 5 months ago
ISO 9001 Quality Management
Certificate type
Ogee fascia system designed and manufactured to provide the essential architectural features appropriate to any designed building.
Application
Fascia systems designed and manufactured to provide the essential architectural features appropriate to any designed building.
Description
Seamless Aluminum Groups Fascia Systems are designed and manufactured to provide the essential architectural features appropriate to any designed building.
Features and benefits:
- Available in a range of shapes and sizes.
- Manufactured on site in Ballyshannon, Co Donegal in marine grade sheet aluminium to ensure its high quality.
- Life expectancy of 40 years or more (under rural and suburban conditions).
- Special requirements can be accommodated.
General information
Color | Silver White Black Grey Other |
Finish | Powder-coated Coated Guidance for specification option: Coil coating. |
Material | Aluminium |
Shape | Rectangle Other |
Length | Bespoke |
Height | Bespoke |
Warranty description | 20 year |
Uniclass | |
CAWS | R10/321 Combined fascia, soffit and gutter R10/13 Combined fascia, soffit and gutter |
Specification data - Aluminium combined fascias, soffits and gutters
Form | Fascia. |
Fascias | |
Profile | Rectangular with Ogee moulding. |
Size | Guidance for specification option: Insert requirements:
Manufacturer guidanceAngled lower edge: 28 mm deep. |
Thickness or gauge | 0.7 mm. |
Finish | Coil coating.Powder coating to BS EN 12206-1.Guidance for specification option: Insert colour requirements below. Matt as standard; consult manufacturer and insert requirements if alternative finish is required. |
Colour | RAL 9016 Traffic White.Guidance for specification option: Standard colour. RAL 9005 Jet Black.Guidance for specification option: Standard colour. RAL 7015 Slate Grey.Guidance for specification option: Standard colour. RAL 7016 Anthracite Grey.Guidance for specification option: Standard colour. RAL 9005 Ripple Black.Guidance for specification option: Standard colour. RAL, other.Guidance for specification option: To any RAL or Classic BS colour. Consult manufacturer for options and insert requirements. Manufacturer guidanceNote that all standard colours are available at a length of up to 3.6 m; bespoke colours only available in lengths of up to 3 m. |
Film thickness (minimum) | Manufacturer's standard. |
Integral accessories | Internal mitres.External mitres.Undercill.Gable ends, left-hand side.Gable ends, right-hand side.Manufacturer guidanceOmit as required. |
Fire rating (to BS EN 13501) | Non-combustible to EN 13501-1:2007 + A1:2009. Guidance for specification option: Coefficient for thermal expansion: -0.000023°C. Melting point approximately 660°C. |
Grade | Aluminium EN AW-1050A H14. Guidance for specification option: Manufactured from sheet aluminium to EN 15088:2005, EN 485 and EN 1396. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | Ireland |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
Third party certifications
ISO 9001 Quality Management
iso cert
Literature
Colour Chart
