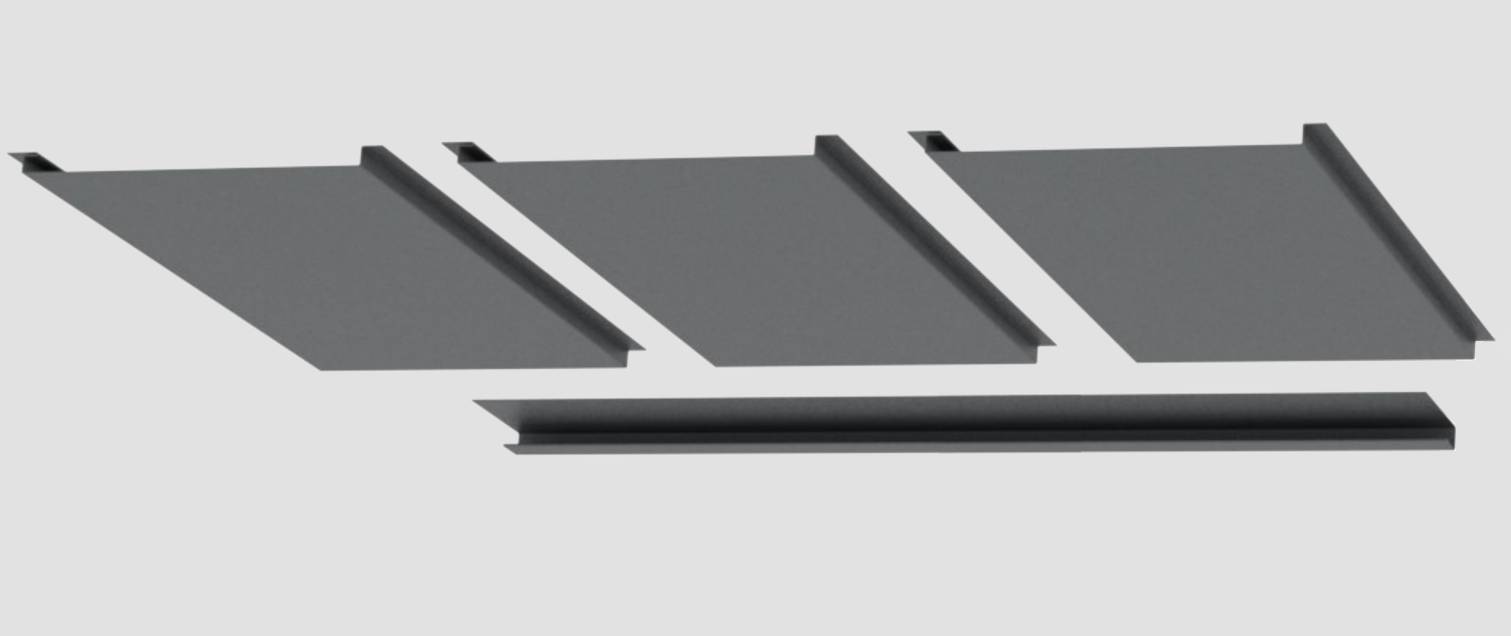

Plain Soffit - Soffit System
Verified by manufacturer 5 months ago
ISO 9001 Quality Management
Certificate type
Plain soffit system designed and manufactured to provide the essential architectural features appropriate to any designed building.
Application
Soffit systems designed and manufactured to provide the essential architectural features appropriate to any designed building.
Description
Seamless Aluminum Groups Soffit Systems are designed and manufactured to provide the essential architectural features appropriate to any designed building.
Features and benefits:
- Can be mounted horizontally, vertically or tongue & groove design.
- Manufactured on site in Ballyshannon, Co Donegal in marine grade sheet aluminium to ensure its high quality.
- Life expectancy of 40 years or more (under rural and suburban conditions).
- Special requirements can be accommodated.
- Matching fascia available, specified separately.
General information
Color | Silver White Black Grey Other |
Finish | Mill Powder-coated |
Material | Aluminium |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | 14 mm |
Warranty description | 20 year |
Uniclass | |
CAWS | R10/321 Combined fascia, soffit and gutter R10/13 Combined fascia, soffit and gutter |
Specification data - Aluminium combined fascias, soffits and gutters
Form | Soffit. |
Soffits | |
Profile | Rectangular. |
Size | Guidance for specification option: Insert requirements:
Manufacturer guidance14 mm deep. |
Thickness or gauge | 0.7 mm.0.9 mm.1 mm.2 mm.3 mm. |
Finish | Mill finish.Powder coating to BS EN 12206-1.Guidance for specification option: Insert colour requirements below. Matt as standard; consult manufacturer and insert requirements if alternative finish is required. |
Colour | Natural.Guidance for specification option: Mill finish only. RAL 9016 Traffic White.Guidance for specification option: Standard colour, powder-coated finish only. RAL 9005 Jet Black.Guidance for specification option: Standard colour, powder-coated finish only. RAL 7015 Slate Grey.Guidance for specification option: Standard colour, powder-coated finish only. RAL 7016 Anthracite Grey.Guidance for specification option: Standard colour, powder-coated finish only. RAL 9005 Ripple Black.Guidance for specification option: Standard colour, powder-coated finish only. RAL, other.Guidance for specification option: Powder-coated finish only; to any RAL or Classic BS colour. Consult manufacturer for options and insert requirements. |
Integral accessories | J channels.Manufacturer guidanceOmit if not required. |
Fire rating (to BS EN 13501) | Non-combustible to EN 13501-1:2007 + A1:2009. Guidance for specification option: Coefficient for thermal expansion: -0.000023°C. Melting point approximately 660°C. |
Grade | Aluminium EN AW-1050A H14. Guidance for specification option: Manufactured from sheet aluminium to EN 15088:2005, EN 485 and EN 1396. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Norway |
Country of product manufacture | Ireland |
Recyclability | This can be fully recycled |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
Third party certifications
ISO 9001 Quality Management
iso cert
Literature
Colour Chart
