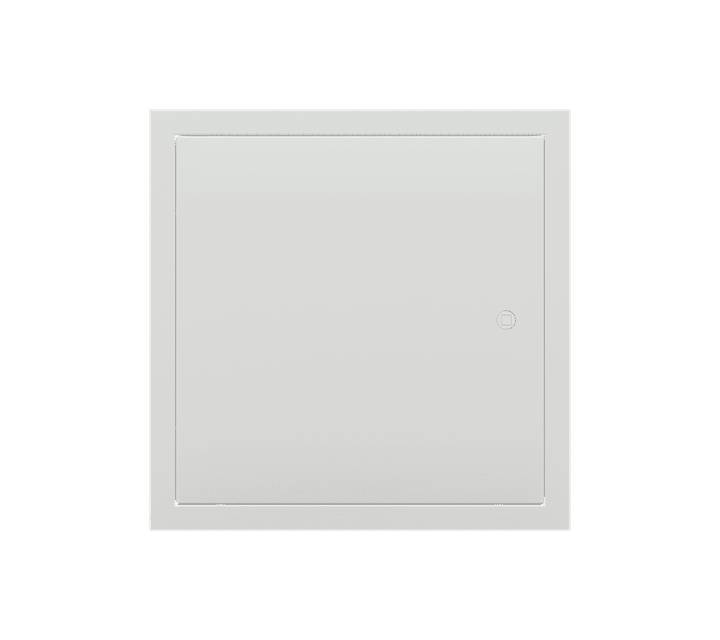

FlipFix - Metal Access Panel - Picture Frame - 1 Hour Fire Rated - Access Panel

Verified by manufacturer 2 months ago

Exitile Access Ltd

Metal Access Panel for Walls and Ceilings, 1 Hour Fire Rated, Picture Frame, Flush Lock, FlipFix Fitting Device

Jump to:
+44 (0) 24 7635 2771 Website

Application

Suitable for use in jointless plasterboard wall and ceiling systems.

Description

This panel is designed to fit into a structural membrane of a jointless plasterboard wall and ceiling system. It is manufactured with a picture frame and has a metal faced door. The door leaf is locked in place via the Flipfix patented flush lock as standard. Other lock options are available upon request. The panel is powder-coated RAL 9010 30% gloss. Other colours available upon request. This panel is for inspection use only and is not suitable for personnel access


Features and benefits:

  • One hour fire rated for integrity up to 600 x 600 mm in a ceiling and wall application.
  • Manufactured from Zintec steel with a 0.9 mm thick door and frame.
  • This product has a 25 mm wide picture frame detail on all bespoke sizes and 20 mm mitre-less detail on stock-sized panels.

General information

Color

White

Finish

Powder-coated

Material

Steel

Shape

Square

Rectangle

Width

150 mm

200 mm

300 mm

450 mm

550 mm

Show more

Height

150 mm

200 mm

300 mm

450 mm

550 mm

Show more

Warranty description

Ten year

Uniclass

Pr_30_59_36_01 Access panelsPrimary

CAWS

L20/630 Hatches

K10/430 Access panels

Specification data - Access panels

Fire performance

-

Fire resistance

60 minutes integrity to BS EN 1634-1:2014.

Guidance for specification option:

Up to 600 x 600 mm.

Position

Wall-mounted.

Ceiling-mounted.

Size

150 x 150 mm.

200 x 200 mm.

300 x 300 mm.

450 x 450 mm.

550 x 550 mm.

600 x 300 mm.

600 x 600 mm.

Bespoke.

Guidance for specification option:

This product is manufactured in the UK and can be made to any bespoke size between 150 x 150 mm (minimum) and 600 x 600 mm (maximum). The average lead time is 3–5 working days. Insert requirements.

Manufacturer guidance

Stock sizes available next day.

Frame

Exposed picture frame type.

Panel

-

Material

Steel.

Integral finish

Powder-coated.

Latch or lock type

Low level security flush lock.

Budget lock.

Medium level security IP65 - key retaining tamper proof lock.

High level security castellated tamper proof lock.

Colour/ Finish

RAL 9010, 30% gloss.

Other.

Guidance for specification option:

Other colours are available on request. Consult manufacturer and insert requirements.

BIM objects

Platform Compatible Version
IFC
-

1

Revit
-

1
