Flow Compact Washroom Cubicle
Verified by manufacturer 17 days ago
Compact grade laminate cubicle
Application
Washroom applications.
Description

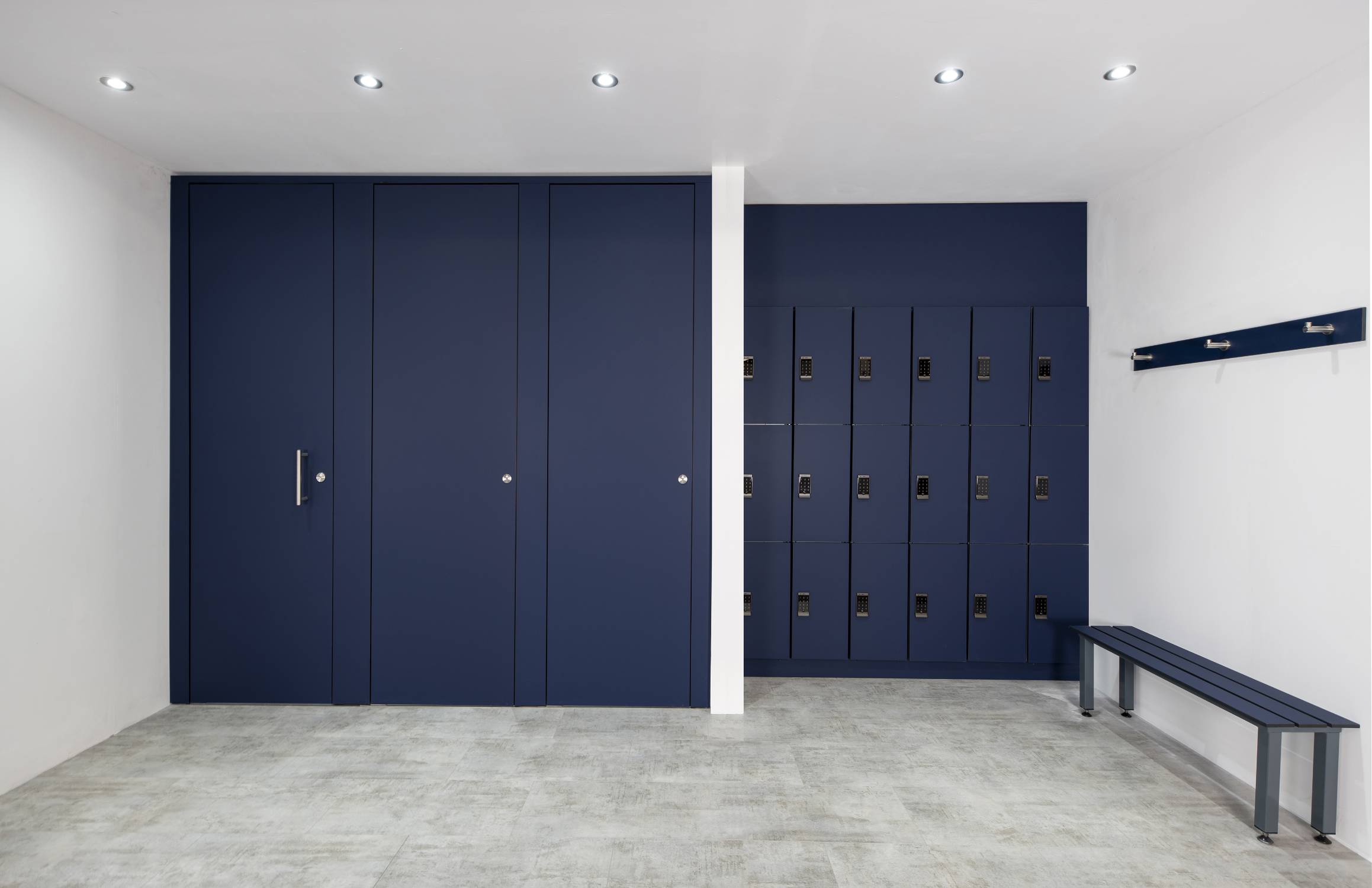

Compact grade laminate cubicle of height up to 2700 mm with an 8 mm floor clearance.
Features and benefits:
- Full aluminium framework not visible from front elevation.
- Up to 2700 mm high with 8 mm standard floor gap.
- 18 mm rebated doors to ensure flush finish, with polished edges.
- Self-closing hydraulic door closer.
- Pivoted door.
- 303 grade stainless steel hardware.

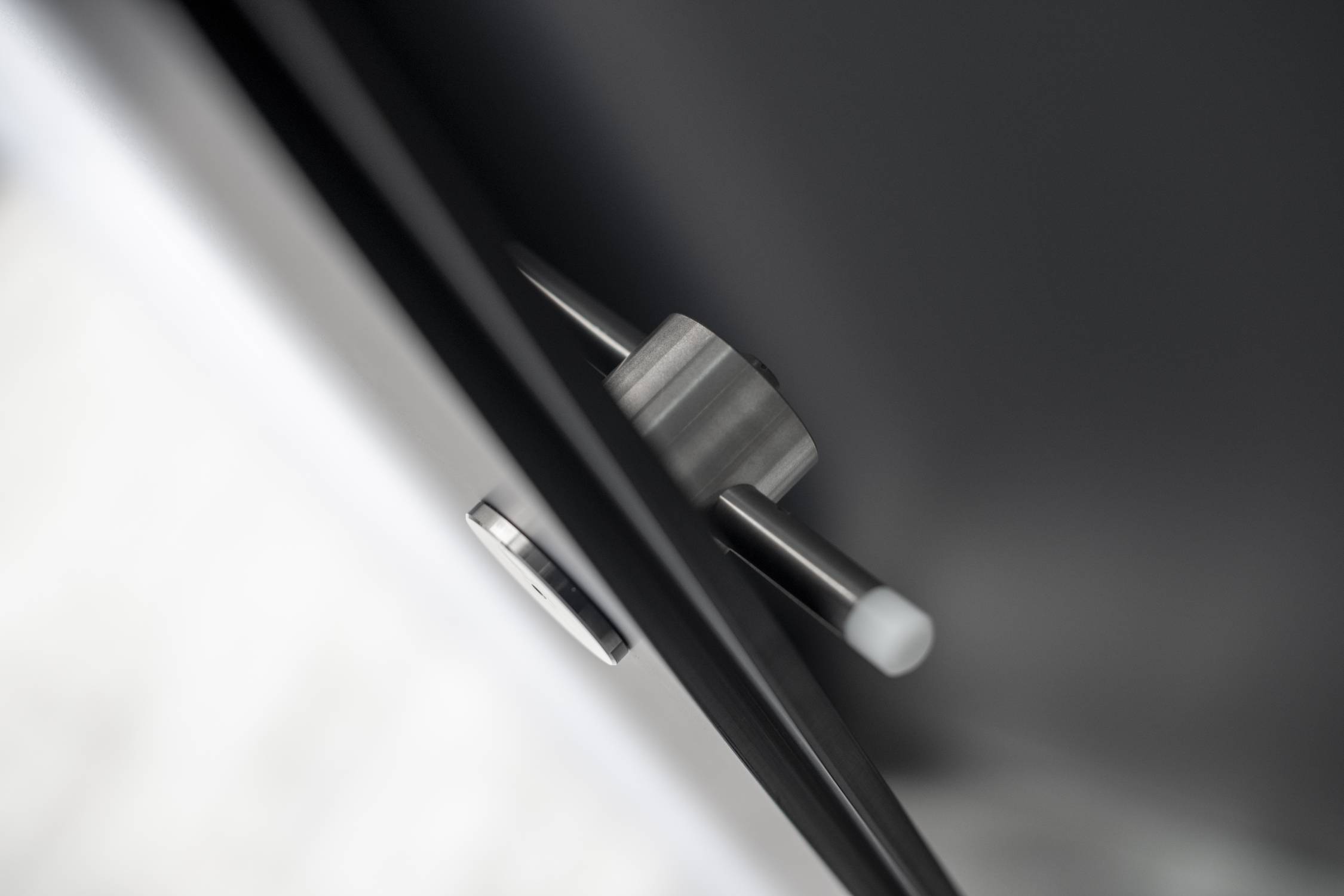

- Precision-engineered stainless steel lock with flush face plate, hand turned in UK, and able to be opened with a closed fist.
- Lock locates into integral receiver.
- Wide range of laminates available, from various leading manufacturers.
- Full privacy, particularly suitable for gender neutral applications.
- Emergency release. 15 year warranty.
General information
Material | Solid grade laminate (SGL) |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | 15 year |
Uniclass | |
CAWS | K32/112 Fully framed panel cubicles K32/11 Fully framed panel cubicles |
Specification data - Fully-framed panel cubicle systems
Panels | Compact laminate boards. |
Panel supports | Extruded full anodized aluminium frames. Headrail finished with high pressure laminate to the front face, to match the finish of the cubicle front.Manufacturer guidanceThe frames are finished with black anodizing as a standard, to complement the edges of the compact grade laminate. Alternative finishes are available to the framework. Consult manufacturer. |
Doors | 18 mm finished panel consisting of a compact grade laminate core with a decorative finish. Leading edge of door is rebated, all edges polished. Stainless steel pivot blocks affixed into factory installed inserts bonded within the door and suspended from a structural aluminium headrail and located onto a floor fixed pivot bracket. Door falls closed by means of a hydraulic door-closer concealed within the aluminium headrail (alternatively, the closer can be factory-set to fall open). |
Hardware | 1.4305 (303) grade brushed stainless steel lock, fixed through the door to the faceplate. Sacrificial hard nylon shear tip to the lock finger, which locates into aluminium receiver within the cubicle framework. Complete with emergency release facility and retracting lock finger. Divider fixed to back wall and front fascia using visible black anodised aluminium U-shaped brackets, fastened with matching through-fixings. Stainless steel coat hook.Manufacturer guidanceComponents tested over a cycle of 300 000 operations, equating to a 15-year period in a medium-use washroom. |
System accessories | Divider: Supported from floor, 8 mm.Guidance for specification option: As standard. Divider: Supported from floor.Guidance for specification option: Insert floor clearance requirement. Floor clearance variable up to 30 mm. Manufacturer guidanceDivider: 12 mm compact grade laminate panels, polished to visible edges. Divider height can be different to the cubicle front and the floor gap variable to suit. |
Colour | Manufacturer guidanceInsert colour from manufacturer's standard range. |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Solid grade laminate (SGL) |
Literature
Flow Compact-Product Summary-Thrislington
