Oasis Full Height Veneer Washroom Cubicle

Verified by manufacturer 10 months ago

Thrislington Cubicles

A range of veneered cubicle systems suspended from the headrail, which hides the unique hydraulic door-closer, creating a 'floating cubicle'.

Jump to:
+44 (0)1244 520677 Website

Application

  • High-quality offices.
  • Hotels.
  • Leisure areas/ clubs.
  • Theatres.

Description

Overall cubicle height of up to 2700 mm with 17 mm floor clearance, supplied with a ten-year warranty.

Pivoted doors are suspended from the headrail, which hides the unique hydraulic door-closer.


Features and benefits:

  • Full aluminium frame.
  • Door suspended from headrail.
  • Concealed hydraulic door-closer, tested to 1.5 tonnes.
  • Stainless steel fittings.
  • Spring-loaded polished stainless steel lock.
  • Machined stainless steel receiver.
  • 1 mm wood veneer.
  • Emergency release.

General information

Color

Clear

Beige

Black

Blue

Bronze

Show more

Finish

-

Manufacturer guidance

Wide range of real wood veneers available, with a variety of finishes, from all leading manufacturers.

Material

-

Manufacturer guidance

Wide range of real wood veneers available, with a variety of finishes, from all leading manufacturers.

Shape

Other

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Ten year

Uniclass

Ss_25_12_60_30 Fully-framed panel cubicle systemsPrimary

CAWS

K32/11 Fully framed panel cubicles

K32/112 Fully framed panel cubicles

Specification data - Fully-framed panel cubicle systems

Panel supports

Full anodized aluminium frame using aluminium alloy 6063T6, with a 5 micron anodized finish and 60% recycled content, comprising extruded headrail and vertical posts. Precision-engineered stainless steel lock, hand-turned in UK; locates into integral receiver within vertical closing post, incorporating full-length buffer.

Doors

32 mm finished thickness, consisting of a 30 mm composite core using timber sourced from sustainable forests, edged first and faced with wood veneer. Concealed fixings within the door allow attachment to dovetail pivot block. Door suspended from a structural aluminium headrail and located onto a floor-fixed pivot bracket; falls closed by means of a hydraulic closer designed specifically for the purpose, concealed within the aluminium headrail (alternatively, the closer can be factory-set to fall open). Complete with anti-finger trap clearance on pivot side of door.

Hardware

Precision-engineered 1.4305 (303 grade) brushed stainless steel lock, hand-turned in UK, and able to be opened using a closed fist, fixed through the door to the faceplate for added strength. Incorporating a machined stainless steel bar, with a sacrificial hard nylon shear tip which locates into the receiver within the vertical closing post. Complete with emergency release facility and buffer. Divider fixed to back wall using visible brackets, secured by through-fixings. Stainless steel coat hook supplied as standard.

Manufacturer guidance

Components tested over a cycle of 200 000 operations, equating to a ten-year period in a medium-use washroom.

System accessories

Divider.

Guidance for specification option:

18 mm finished thickness consisting of a 16 mm moisture-resistant chipboard core sourced from sustainable forests, lip-edged first to top and bottom edges, then faced with wood veneer. Suspended 17 mm from the floor.

Size:

-

Manufacturer guidance

Height up to 2700 mm with 17 mm floor clearance.

Finish:

Wood veneer.

Colour:

-

Manufacturer guidance

Insert colour from manufacturer's standard range.

Fascia

Not required.

18 mm finished thickness consisting of a 16 mm moisture-resistant chipboard core sourced from sustainable forests, lip-edged first to visible edges, then faced with wood veneer. Suspended 5 mm from the floor.

Product Reference

Oasis Full Height Veneer

Literature

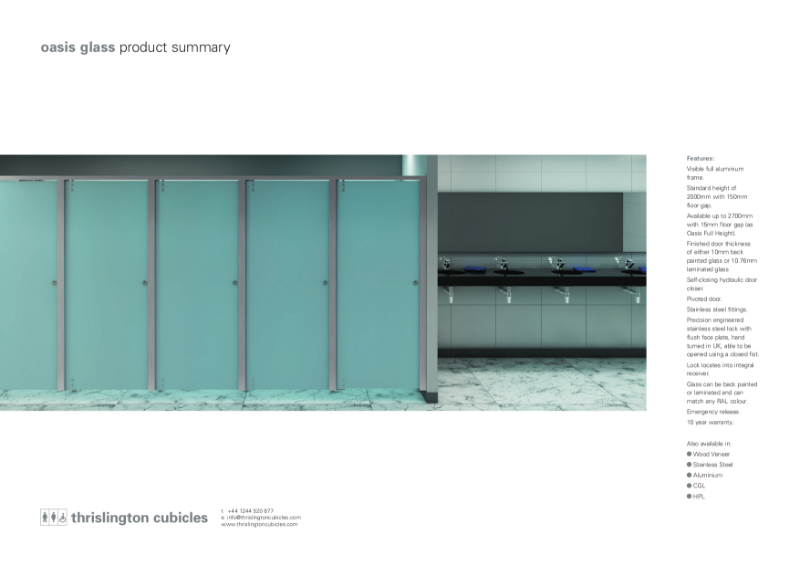

Thrislington Product Summary - Oasis Cubicles
