Flow Veneer Washroom Cubicles
Verified by manufacturer 17 days ago

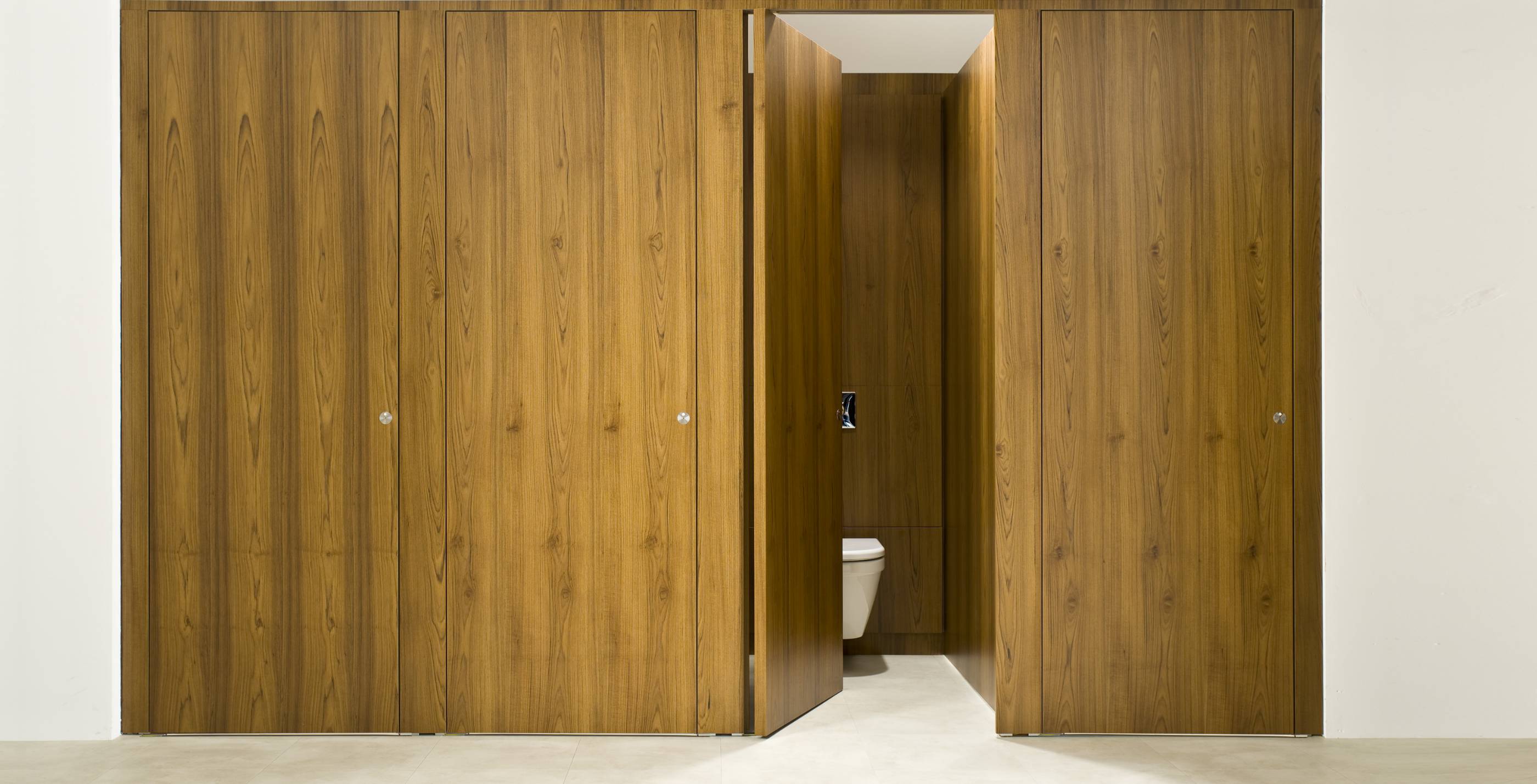

Veneered toilet cubicle
Application
Washroom applications.
Description
Veneered toilet cubicle of height up to 2700 mm with an 8 mm floor clearance, supplied with a 15-year warranty.
Features and benefits:
- Full aluminium framework, not visible from front elevation.
- 42 mm rebated doors to ensure flush finish.
- Self-closing hydraulic closer.
- Pivoted door.
- Stainless steel fittings.

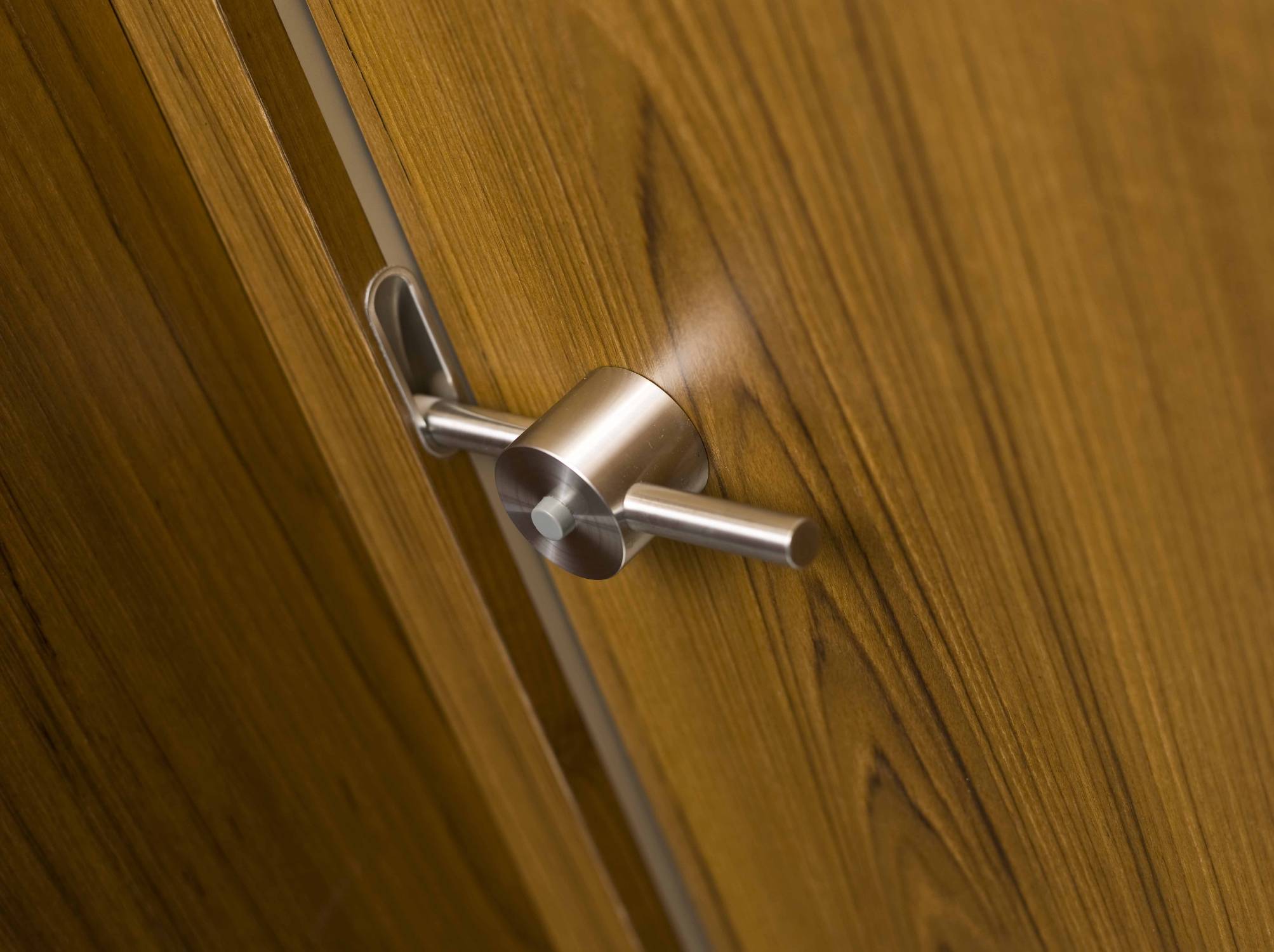

- Precision-engineered stainless steel lock with flush faceplate, hand-turned in UK, and able to be opened using a closed fist.
- Lock locates into integral receiver.
- Wide range of veneer finishes available from numerous species.
- Core sourced from legal and sustainable sources.
- Can be supplied to meet NAUF criteria.
- Emergency release.
General information
Color | Manufacturer guidanceWide range of wood venners available, with a variety of finishes, from all leading manufacturers. |
Finish | Wood grain |
Material | Wood |
Shape | Other |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | 15 year |
Uniclass | |
CAWS | K32/11 Fully framed panel cubicles K32/112 Fully framed panel cubicles |
Specification data - Fully-framed panel cubicle systems
Panel supports | Full anodized aluminium frame using aluminium alloy 6063T6, with a 5 micron anodized finish and60% recycled content. Extruded headrail finished with matching wood veneer. Stainless steel lock locates into receiver integrated within the vertical fascia. |
Doors | 42 mm finished thickness consisting of a 40 mm ultra-lightweight MDF core sourced from sustainable forests, rebated first, hand-lipped and faced with wood veneer. Concealed fixings within the door allow attachment to stainless steel pivot blocks, suspended from a structural aluminium headrail and located onto floor-fixed pivot bracket. Door falls closed by means of a hydraulic door-closer designed specifically for the purpose, concealed within the aluminium headrail.Guidance for specification option: Alternatively, the closer can be factory-set to fall open. |
Hardware | 1.4305 (303) grade brushed stainless steel lock, hand-turned in UK and able to be opened using a closed fist, fixed through the door to the faceplate for added strength. Sacrificial hard nylon shear tip to the lock finger, which locates into flush receiver, integrated within the cubicle fascia. Complete with emergency release facility and buffer. Divider fixed to back wall using concealed steel brackets, fastened by through-fixings. Divider connected to front fascia using unique magnetic invisible fixings. Stainless steel coat hook supplied as standard.Manufacturer guidanceComponents tested over a cycle of 300 000 operations, equating to a 15-year period in a medium-use washroom. |
System accessories | Divider: Set in floor channel.Divider: Supported, 8 mm from floor using concealed fixings.Manufacturer guidance24 mm finished thickness, consisting of 22 mm moisture-resistant chipboard core sourced from sustainable forests, edged top and bottom, then faced with wood veneer. |
Size: | Manufacturer guidanceUp to 2700 mm high with 8 mm floor clearance. |
Finish: | 1 mm wood veneer from standard range. |
Colour: | Manufacturer guidanceFrom manufacturer's standard range; insert colour. |
Fascia | 70 mm finished thickness consisting of two 18 mm moisture-resistant MDF core panels sourced from sustainable sources, edged first, attached to a central aluminium frame and faced with wood veneer. Flush aluminium lock receiver fitted into frame. |
Product Reference | Flow Veneer |
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Wood |
Literature

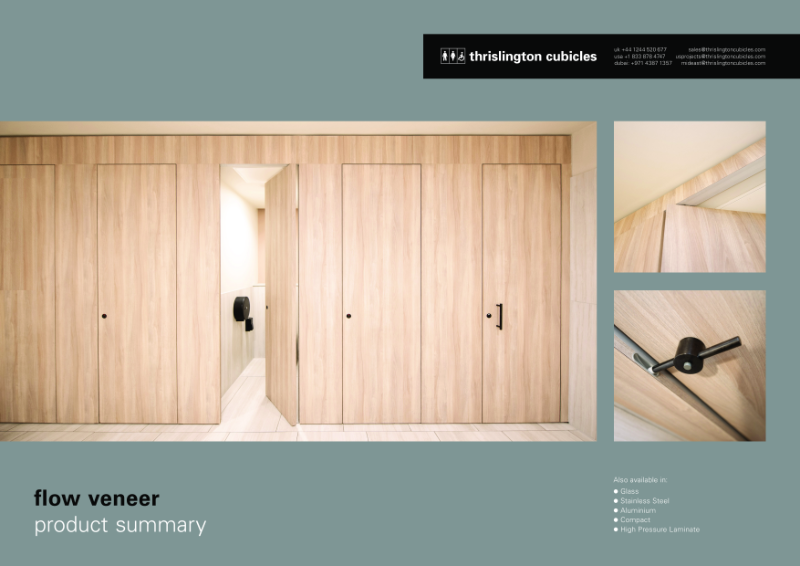

Flow Veneer-Product Summary-Thrislington
