FR-A Non-Combustible Glazing Panels

Verified by manufacturer 2 months ago

FR-A Type 2

Panel Systems Ltd Variant:

A2-s1,d0 Classified non-combustible architectural panels for glazing and aluminium curtain walling applications.

Jump to:
BOS
+44 (0)114 275 2881 Website

Application

A2 non-combustible architectural panels suitable for:

  • Glazing / windows and aluminium curtain walling applications.
  • Use in both new construction projects and in replacing existing non-compliant spandrel panels.

Description

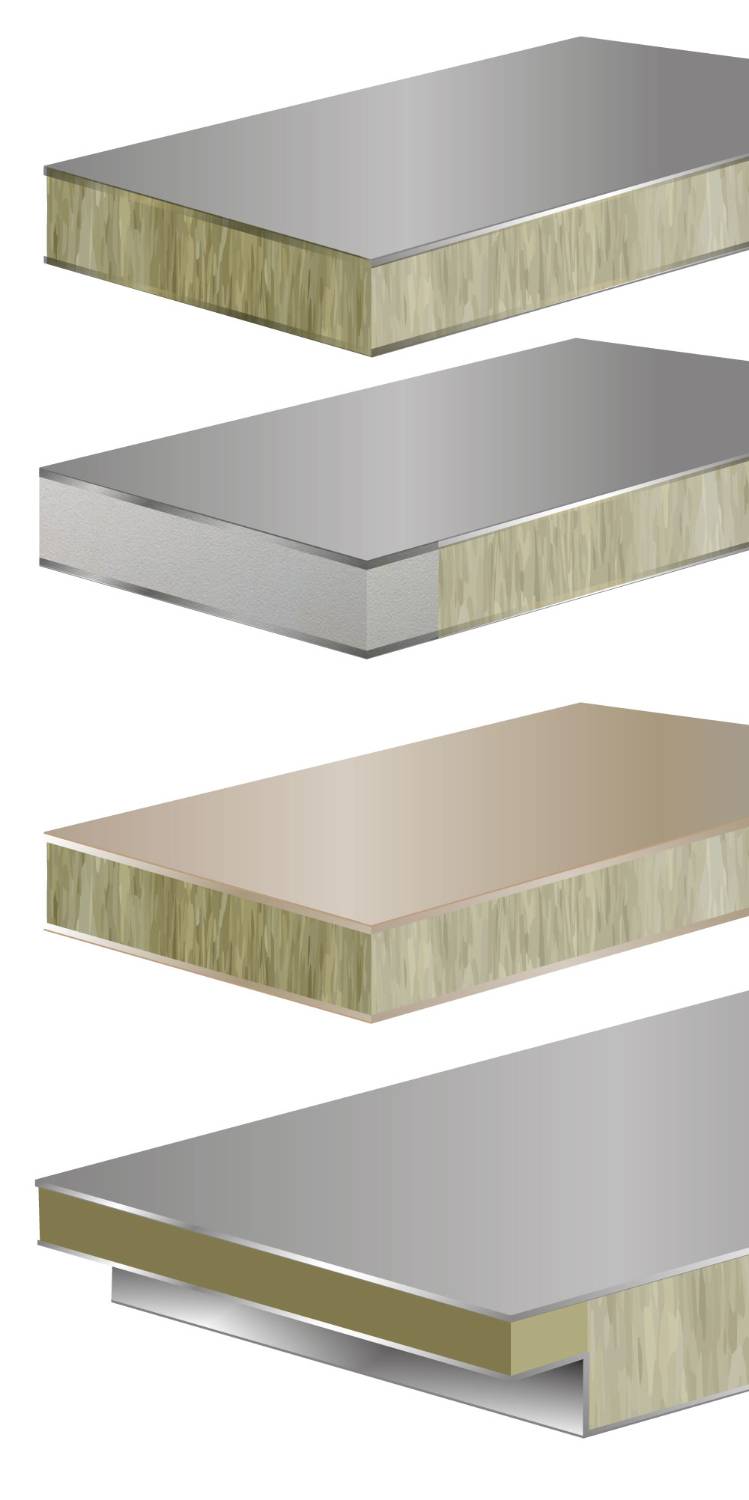

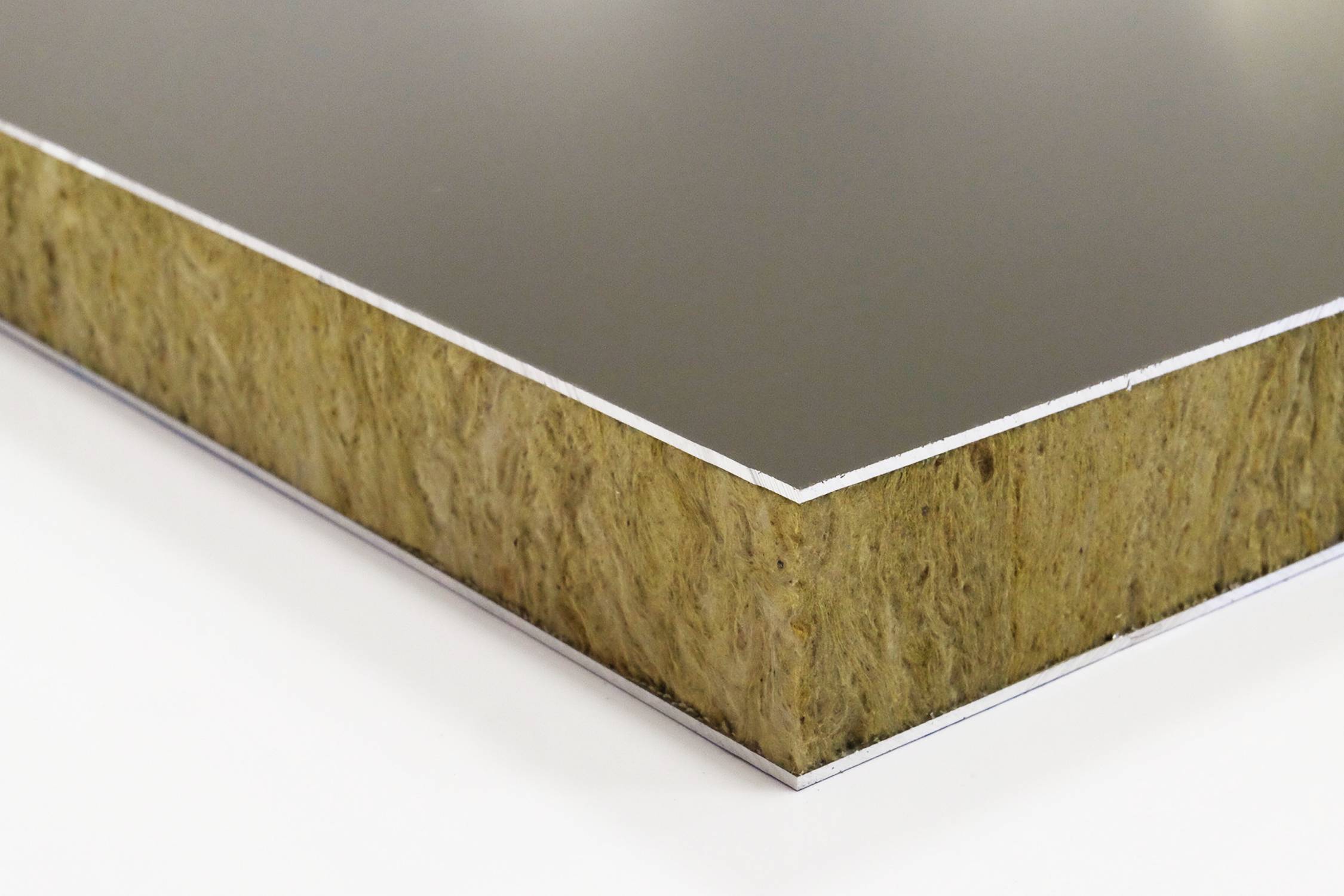

FR-A non-combustible panels offer architects, specifiers and developers a glazing panel that is compliant with UK Building Regulations. FR-A non-combustible panels consist of mineral fibre lamella core faced both sides with aluminium, and are available in four different variations.

A copy of our EN 13501-1 classification report is available upon request.


Features and benefits:

  • Achieves A2-s1,d0 classification to EN 13501-1:2018
  • Available in powder coated and anodised finishes.
  • Excellent thermal properties.
  • Good compressive strength.
  • Manufactured to quality standard ISO 9001:2015.

General information

Color

Black

Blue

Brown

Cream

Green

Show more

Finish

Powder-coated

Mill

Anodized

Material

Aluminium

Stone wool

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Pr_25_71_14_04 Aluminium insulating sandwich panelsPrimary

CAWS

H43/120 Metal insulating sandwich panel

H43/10 Metal insulating sandwich panel

Specification data - Aluminium insulating sandwich panels

Panels

Factory-assembled insulating sandwich panels.

Panel construction

-

Panel external face

-

Material

Aluminium.

Grade

1050.

Profile

Smooth.

Thickness

2 mm.

Panel internal face

-

Material

Aluminium.

Profile

Smooth.

Thickness

2 mm.

Core insulation

Mineral wool lamella.

Panel dimensions

-

Length

Guidance for specification option:

Consult manufacturer and insert requirements.

Cover width

Guidance for specification option:

Consult manufacturer and insert requirements.

Thickness

28 mm.

Finish as delivered

-

Outer skin

-

Material

PPC.

Thickness

Manufacturer's standard.

Colour

-

Manufacturer guidance

Most RAL colours are available upon request. Consult manufacturer and insert requirements.

Inner skin

-

Material

PPC.

Natural plain mill.

Thickness

Manufacturer's standard.

Colour

-

Manufacturer guidance

Most RAL colours are available upon request. Consult manufacturer and insert requirements.

Fire performance

-

Reaction to fire

-

Core

To BS EN 13501-1, Class A1.

Panel external face

To BS EN 13501-1, Class A2-s1, d0.

Panel internal face

To BS EN 13501-1, Class A2-s1, d0.

Adhesive

Two part polyurethane adhesive.

Thermal conductivity

0.048 W/m·K.

Manufacturer guidance

Nexus core lamella stone wool.

Typical compressive strength

130 kPa.

Manufacturer guidance

Nexus core lamella stone wool.

Tolerances

Length/width: ±2.0 mm. Thickness: ±1.0 mm.

Sustainability data

Country of material origin

Europe

Country of product manufacture

United Kingdom

Material

Aluminium

Stone wool

Manufacturing plant location

Recyclability

Panel must be stripped down to its original components for the aluminium to be recycled.

Expected Life

50 year
