Geotextile - PPEXT Nonwoven Geotextile
Verified by manufacturer 13 days ago
100 g/m²
100 g/m²
ISO 9001 Quality Management
Certificate type

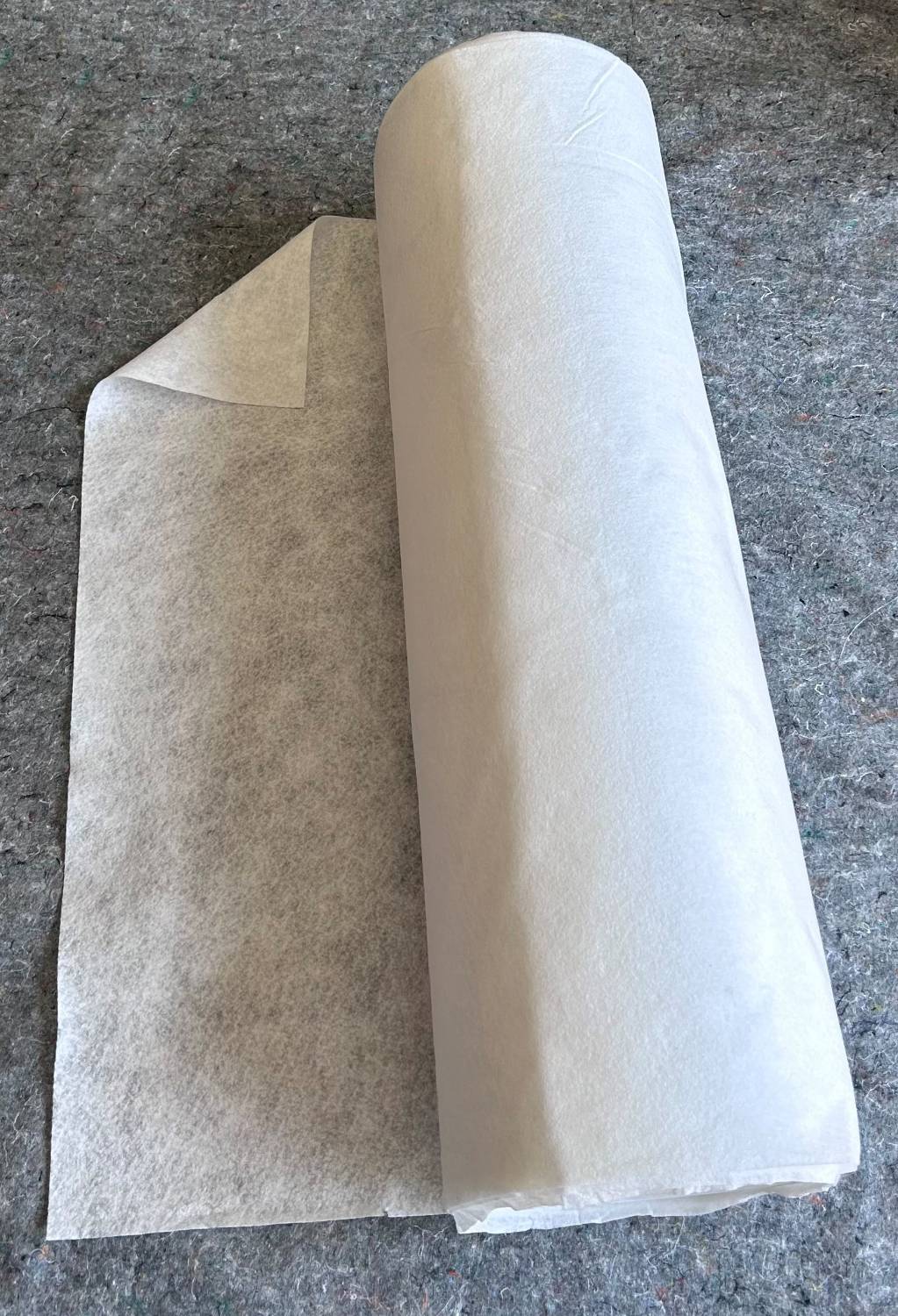

A white polypropylene nonwoven geotextile, designed to perform following functions: filtration, separation, protection.
Application
Suitable for road construction, linings for reservoirs, landfill and roofing.
Description
High quality geotextile fabric with good tensile strength and puncture resistance.
Features and benefits:
- Available in multiple thicknesses.
- Suitable for soil stabilization.

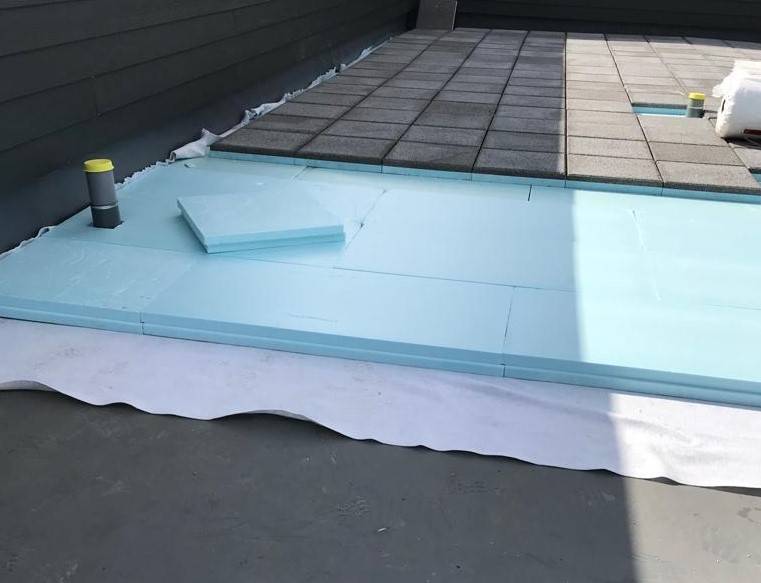

- Protection of insulation and membranes for inverted roofing systems.
- Available from 100 gsm up to 1500 gsm.
- Thermally bonded without glues, staples or chemical binders.
General information
Color | White |
Finish | Micro-textured |
Material | Polypropylene Guidance for specification option: Virgin fibre |
Shape | Other |
Length | 50000 mm 100000 mm Manufacturer guidance50,000mm and 100,000mm |
Width | 1000 mm 2000 mm 3000 mm 4000 mm 5000 mm Manufacturer guidance1 metre width is a stock items. 2,3, 4, 5 & 6 metre lengths are available on special order (Minimum quantities apply). |
Height | 0.7 mm 0.8 mm 1.1 mm 1.4 mm 1.6 mm |
Warranty description | 15 year Guidance for specification option:
|
Uniclass | |
CAWS | J42/110 Warm deck roof covering J42/120 Inverted roof covering J42/130 Cold deck roof covering J42/380 Protection layer J42/383 Separating layer J42/385 Filter layer |
Product range |
Specification data - Plastics sheets
Material | Polypropylene.Guidance for specification option: Virgin fibre. |
Purpose | Filtration, separation and protection.Guidance for specification option:
|
Third-party certification | CE 1213-CPD-3547. |
Performance characteristics | |
Tensile strength (minimum) | To EN ISO 10319, 2 kN/m (MD); 2.5 kN/m (CMD). |
Tear resistance | Dynamic puncture resistance to EN ISO 13433, >50 mm.Manufacturer guidanceConsult manufacturer's literature for corresponding static puncture resistance and pyramidal puncture resistance. |
Elongation to break | At maximum load to EN ISO 10319, 70% (MD); 80% (CMD). |
Form | Sheet. |
Physical properties | |
Colour | White. |
Weight (minimum) | 100 g/m². |
Dimensions | |
Thickness (minimum) | 0.7 mm. |
Width (minimum) | 1 m.2 m.3 m.4 m.5 m.6 m. |
Roll length (minimum) | 50 m.100 m.Manufacturer guidanceStandard rolls 100 m. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Italy |
Country of product manufacture | Italy |
Material | Polypropylene Guidance for specification option: Virgin fibre |
Manufacturing plant location | |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Expected Life | Five year |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 5 |
 Revit | - | 5 |
Third party certifications
ISO 9001 Quality Management
ISO 9001
Literature
Brochure - Geotextile General
Datasheet - Geotextile PPEXT Nonwoven Polypropylene Full Range
