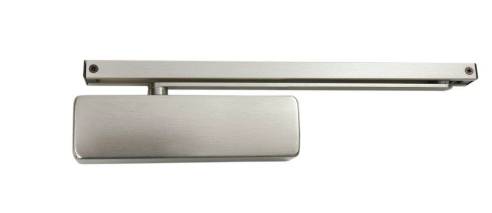

GEZE TS 3000 V BC - Guide Rail EN 1-4 Door Closer With Backcheck (HUKP-0404-03) - Door accessories

Name: GEZE TS 3000 V BC - Guide Rail EN 1-4 Door Closer With Backcheck (HUKP-0404-03) - Door accessories
Brand: Hafele UK Ltd
SKU: h1qqD4RCM4c8cN5NFv2Mfw

Verified by manufacturer 20 days ago

Hafele UK Ltd

Third party certifications:

Certifire Certificate
Certificate type

Door closer with back check.

Jump to:

+44 (0)800 171 2907 Website

Application

Suitable for up to two hours on timber door sets for all pull/ push configurations on (hinge and opposite hinge side).
For steel doors and frames up to four hours' fire-resistance.

Description

Door closer with backcheck.

Features and benefits:

Closing force with variable adjustment from EN 1-4.
Hydraulic latching action and front adjustable back check.
Closing speed can be individually adjusted.
All functions can be set from the front (except for closing force).
Single-action doors up to 1100 mm leaf width.

General information

Color	Black Bronze Gold Silver Manufacturer guidance RAL colour available to special order.
Finish	Satin Polished Matt
Material	Stainless steel
Shape	Rectangle
Length	237 mm Guidance for specification option: With cover.
Width	67 mm Guidance for specification option: With cover.
Warranty description	Ten year

Uniclass	Pr_30_36_59_15 Controlled door closersPrimary
CAWS	P21/12 Controlled door closers P21/410 Controlled door closers

Product range	Door closers

Specification data - Controlled door closers

Standard	To BS EN 1154.
Classification grades (minimum)	-
Durability	8.
Door closer power size	4.
Safety	1.
Closer functions	Controlled closing.
Materials and finishes	-
Bodies	Stainless steel. Satin. Polished. Matt.
Arms	Stainless steel.
Casings	Stainless steel.
Colour	Satin stainless steel. Polished stainless steel. Silver sprayed. Light bronze. Dark bronze. Hafele black. Matt black. Satin brass. RAL colour. Manufacturer guidance Other finishes available to special order.

Third-party certification	CE marked and Certifire approved CF 145.
Dimensions	237 x 67 mm. Guidance for specification option: Length x width. Manufacturer guidance With cover.
