Gustafs Lamellow+ Ceilings

Verified by manufacturer 27 days ago

Linear

LSA Projects Ltd Variant:
Third party certifications:
  • BS EN 13501-1

    BS EN 13501-1

    Certificate type

  • EPD

    EPD

    Certificate type

  • FSC

    FSC

    Certificate type

Acoustic linear panels for ceilings.

Jump to:
+44 (0)1376 501199 Website

Application

Suitable for commercial, education, leisure and transport environments.

Description

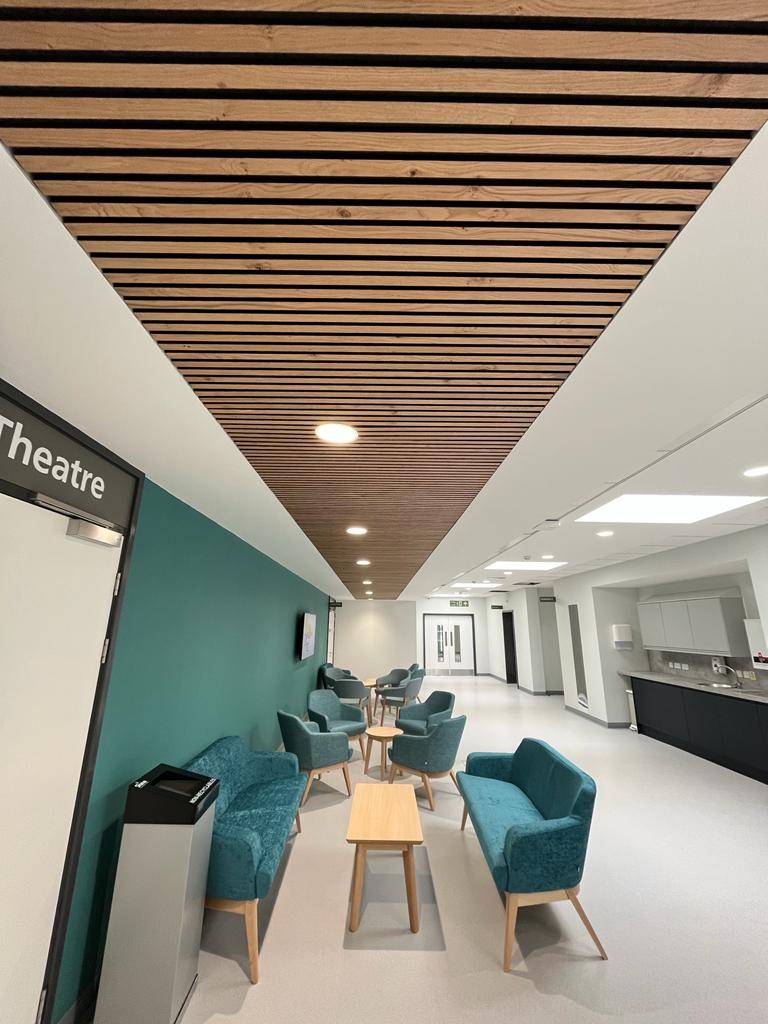

Gustafs Lamellow+ Ceilings is a panelized linear ceiling system with up to Class A acoustic control built into the panels with no need for additional acoustic lining materials.


Lamellow+ is built from a rigid acoustic fleece board in a choice of light or anthracite grey and faced with gypsum core ribs with natural veneer to the front edge. The complete panel construction and installation achieves Euroclass B-s1,d0 for resistance to fire and can be delivered with FSC certified veneer.


Lamellow+ Barcode/Linear is built in rectangular modules of 2400 x 600 mm with options for matching veneer wrapped or felt framing profiles for exposed edges and corners.


The Puzzle panels are available in four designs and modules of 2400 x 600 mm, 1200 x 600 mm and 600 x 600 mm.


Lamellow+ ceilings can be installed to curved surfaces down to a radius of 1000 mm and the system eliminates the need for additional Capax installation profiles. Panels are installed using black screws disguised at regular intervals between the ribs.


BREEAM marked and VOC regulated.

General information

Color

Black

Brown

Beige

Grey

Finish

Veneered

Material

Gypsum

Wood

Shape

Rectangle

Length

2400 mm

Width

600 mm

Height

22 mm

Warranty description

Two year

Uniclass

Ss_30_25_22_47 Linear ceiling lining systemsPrimary
Ss_25_25_75_95 Wood veneered panel lining systems
Ss_25_25_75_05 Acoustic panel lining systems

CAWS

K13/170 Acoustic panel lining

K13/120 Wood-veneered panel lining

K13/120 Wood-veneered panel lining

K40/10 Unit/ modular suspended ceilings

K13/170 Acoustic panel lining

K40/115 Unit/ modular suspended ceiling system

Specification data - Linear ceiling lining systems

Ceiling support

Gustafs Capax Ceiling System.

Support fasteners

-

Manufacturer guidance

Insert requirement to suit substrate.

Linear strip

Veneered gypsum particleboard ribs with acoustic felt backing.

System accessories

Not required.

Lamellow+ framing profiles in matching veneer.

Felt joining strips.

Reaction to fire

To EN 13501-1, Euroclass B-s1, d0.

Design

Linear rectangular design.

Facing

Veneer - Wild oak smoked.

Guidance for specification option:

Felt - Anthracite.

Veneer - Wild oak grey.

Guidance for specification option:

Felt - Anthracite.

Veneer - Knotty oak.

Guidance for specification option:

Available with Anthracite felt or Wool grey felt, insert requirements.

Veneer - American oak.

Guidance for specification option:

Available with Anthracite felt or Wool grey felt, insert requirements.

Veneer - Walnut.

Guidance for specification option:

Felt - Anthracite.

Show more

Dimensions

22 x 600 x 2400 mm.

Manufacturer guidance

H x W x L

Weight

19.4 kg per 1.44 m².

Sound absorption class

αw 0.90-NCR 0.85.

Guidance for specification option:

Plus 200 mm air void.

Manufacturer guidance

Class A.

Surface treatment

Triple UV coating system, natural woodgrain/ oil look.

Ribs

13 x 27 mm.

Manufacturer guidance

L x W

Spacing

13 mm.

Sustainability data

Contains Red List materials

No

Country of material origin

Sweden

Country of product manufacture

Sweden

Recyclability

Product is demountable and reusable within expected lifespan

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

94 %

Guidance for specification option:

Ribs.
