Gyptone® Quattro A - Ceiling System

Name: Gyptone® Quattro A - Ceiling System
Brand: Saint-Gobain Ecophon
SKU: vyh78M2nXctZC1zDqv7h6

Verified by manufacturer 6 days ago

Gyptone® Quattro A 20

Product certifications:

Exposed ceiling grid system with demountable acoustic tiles.

Jump to:

Application

Ceiling applications in education areas and offices.

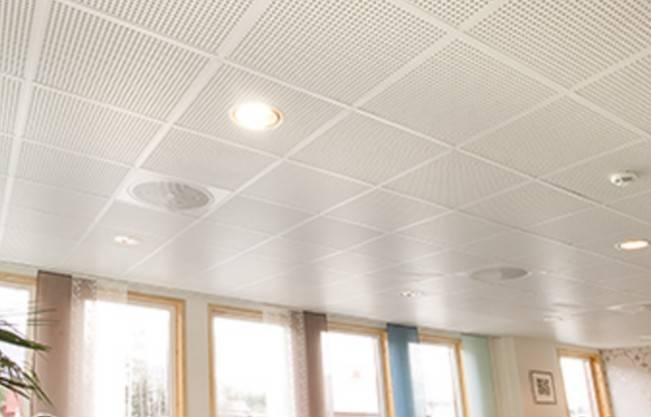

Exposed ceiling grid system with demountable acoustic tiles.

Features and benefits:

Color	White Guidance for specification option: NCS 0500. 70% light reflectance. Gloss 5–9.
Finish	Painted
Material	Gypsum Mineral wool
Shape	Square
Length	600 mm
Width	600 mm
Height	10 mm Guidance for specification option: 10 mm standard tile thickness (thicker if specifying with mineral wool). 200 mm standard overall depth of system. 58 mm minimum overall depth of system.
Warranty description	Ten year

Uniclass	Ss_30_25_22_51 Modular suspended ceiling systemsPrimary
CAWS	K40/265 Infill units K40/105 Suspended ceiling system K40/10 Unit/ modular suspended ceilings K40/115 Unit/ modular suspended ceiling system

Classification data
System performance	Acoustic performance
Ceiling support	Connect™ T15 grid. Connect™ T24 grid.
Support fasteners	Connect™ adjustable hanger with Connect™ hanger clip.
Ceiling units	Gyptone® Quattro A 20 - gypsum infill units.
Barriers in ceiling void	-
Fire barriers	- Manufacturer guidance Insert requirements or omit.
Acoustic barriers	None.
Plenum barriers	- Manufacturer guidance Insert requirements or omit.
System accessories	- Manufacturer guidance Insert requirements or omit.
Installation	M599 - Suspended ceiling.
Perforation	18%. Perforation size: 9 x 9 mm.
Indoor climate	French VOC A+, Finnish M1 and Danish Indeklima.
Sound absorption	Class C to BS EN ISO 11654. Guidance for specification option: Noise reduction coefficient: 0.70 αw. Manufacturer guidance See manufacturer's datasheet for overall depth of system for each variant.
Reaction to fire	To EN 14190, A2-s1,d0.
Size (length x width)	600 x 600 mm.
Thickness	10 mm.
Trim	Connect™ Shadow-line trim.
Weight	8 kg/m².
Standard	CE marked according to the European harmonized standard EN 14190.

Material	Gypsum Mineral wool
A1–A3 ('Production stage')	Embodied carbon as defined in BS EN 15804
Normalized unit
Declared unit	3.04 kg CO₂ eq/m² Self-declared Lower emissions Guidance for specification option: A1–C4 figure.
Recyclability	Fully recyclable
