Hawa Junior 100 B Pocket Acoustics (Sliding Door Hardware)

Verified by manufacturer 3 months ago

Hawa Sliding Solutions AG Third party certifications:
  • EPD

    EPD

    Certificate type

Pocket sliding hardware for use with single top-running wooden doors up to 100 kg.

Jump to:
+41 44 787 17 17 Website

Application

Suitable for various applications and for use by people of all abilities, including in the following locations:

  • Retirement homes.
  • Care homes.
  • Shopping centres.
  • Schools.
  • Public buildings.
  • Family homes/ apartment complexes.
  • Hotels.

Description

Fitting for top-running wooden doors up to 100 kg, with surface mounted running track or running track flush with the ceiling. Sound attenuation. Ceiling mounting. Wall pocket solution.


Features and benefits:

  • Outstanding living comfort thanks to effective exclusion of sound, drafts, odors and unwanted light incidence.
  • Easy height adjustment via both suspensions and convenient depth adjustment of the installed door in the wall pocket.
  • Suits single doors up to a maximum size of 800–1300 x 2500 mm (w x h) and door thickness 44–50 mm.
  • For top-running wooden doors up to 100 kg.

General information

Color

Grey

Finish

Anodized

Material

Aluminium

Shape

Rectangle

Warranty description

Two year

Uniclass

Pr_30_36_36_23 Door track and running gearPrimary

CAWS

P21/10 Door track and running gear

P21/350 Door track and running gear

Specification data - Door track and running gear

Standard

To EN 1527.

Third-party certification

Internal testing.

Classification grades (minimum)

-

Durability

6.

Guidance for specification option:

100 000 cycles.

Door mass

2.

Corrosion resistance

2.

Initial friction

3.

Form

Anodized aluminium.

Running track

1400 mm.

1600 mm.

1800 mm.

2000 mm.

2200 mm.

Show more

Manufacturer guidance

Not all finishes and track types are available in all lengths. Consult manufacturer's literature.

Accessories/ Other requirements

None.

Assembly set up to 2000 mm - Set for mountable and demountable running track.

Assembly set up to 2500 mm - Set for mountable and demountable running track.

Assembly set up to 3000 mm - Set for mountable and demountable running track.

Top track fastening for removable top track.

Show more

Components

Hawa Junior 100 B Pocket Acoustics consisting of running track (aluminum wall thickness 2.9 mm), running gear with ball bearing rollers (200 000 cycles tested), SoftStop, suspension profile with suspension carriage, horizontal seal set, vertical seal.

Accessories

-

Manufacturer guidance

Consult manufacturer.

Dimensions

-

Manufacturer guidance

Suits single doors up to a maximum size of 750–1250 x 2500 mm (w x h) and door thickness 44–50 mm.

Sustainability data

Contains Red List materials

No

Country of material origin

Switzerland

Country of product manufacture

Switzerland

Material

Aluminium

Recyclability

Yes

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %

Third party certifications

BIM objects

Platform Compatible Version
Revit
-

1

IFC
-

1

Third party certifications

EPD

EPD

Hawa EPD Sliding door gear EN

Literature

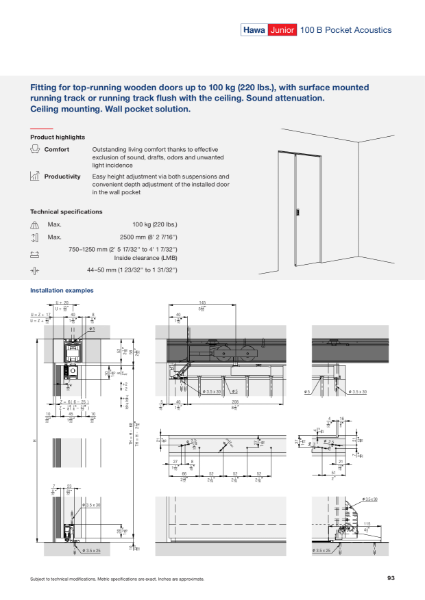

CAT_EN_Hawa_Junior_100_B_Pocket_Acoustics

CAT_EN_Hawa_Junior_100_B_Pocket_Acoustics
