Hawa Junior 100 Z Pocket (Sliding Door Hardware)
Verified by manufacturer 3 months ago
Complete set with 2 SoftStop, for 1 door (30237)
Complete set with 2 SoftStop, for 1 door (30237)
EPD
Certificate type
Sliding hardware for use with single top-running wooden doors up to 100 kg.
Application
Suitable for semi-public and public access.
Description
Fitting for top-running wooden doors up to 100 kg, with surface mounted running track. Optionally with soft and self closing mechanism. Ceiling mounting. Wall pocket solution.
Features and benefits:
- Accessible opening and soft and self-closing at both sides from door widths of 800 mm (2'7 1/2").
- Easy height adjustment via both suspensions and convenient depth adjustment of the installed door.
- Performance guarantee: 15 years for private use and 7 years for commercial use on low opening forces of a maximum 22 N.
- For top-running wooden doors up to 100 kg.
- Suits single doors up to a maximum size of 1500 x 4000 mm (w x h) and door thickness 35–80 mm.
General information
Color | Grey |
Finish | Anodized |
Material | Aluminium |
Shape | Rectangle |
Warranty description | 15 year Guidance for specification option: Domestic; for opening force only. Seven year Guidance for specification option: Commercial; for opening force only. |
Uniclass | |
CAWS | P21/10 Door track and running gear P21/350 Door track and running gear |
Specification data - Door track and running gear
Standard | To EN 1527. |
Third-party certification | Internal testing. |
Classification grades (minimum) | |
Durability | 6.Guidance for specification option: 100 000 cycles. |
Door mass | 2. |
Corrosion resistance | 2. |
Category of door-opening action | 3. |
Form | Aluminum, anodized, pre-drilled. |
Running track | 1400 mm. 1600 mm. 1800 mm. 2000 mm. 2200 mm. |
Accessories/ Other requirements | None. Guide track. Assembly set up to 2000 mm - Set for mountable and demountable running track. Assembly set up to 2500 mm - Set for mountable and demountable running track. Assembly set up to 3000 mm - Set for mountable and demountable running track. |
Components | Running gear; SoftStop Hawa Junior 80/100; Two-way suspension plate; Set with suspension bolts M10, hexagon nuts, screws and buffer; Bottom guide; Vertical adjustment pin. |
Accessories | Manufacturer guidanceConsult manufacturer. |
Dimensions | Manufacturer guidanceSuits single doors up to a maximum size of 3000 x 4000 mm (w x h). |
Sustainability data
Contains Red List materials | No |
Country of material origin | Switzerland |
Country of product manufacture | Switzerland |
Recyclability | Yes |
Third party certifications
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Third party certifications
EPD
Hawa EPD Sliding door gear EN
Literature

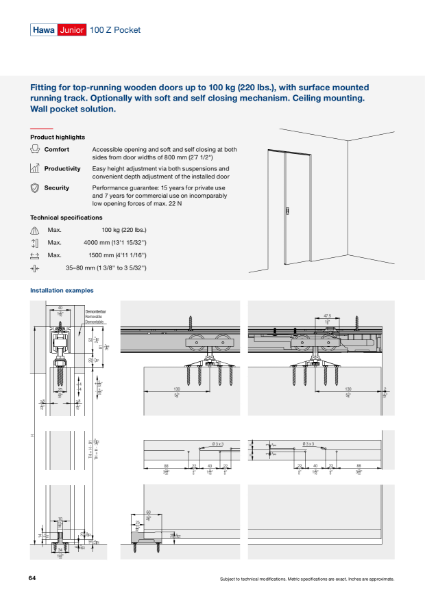

CAT_EN_Hawa_Junior_100_Z_Pocket
