HPS 1.4 Geotextile

Verified by manufacturer 3 months ago

Geofabrics Ltd Third party certifications:
  • CE Marking

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

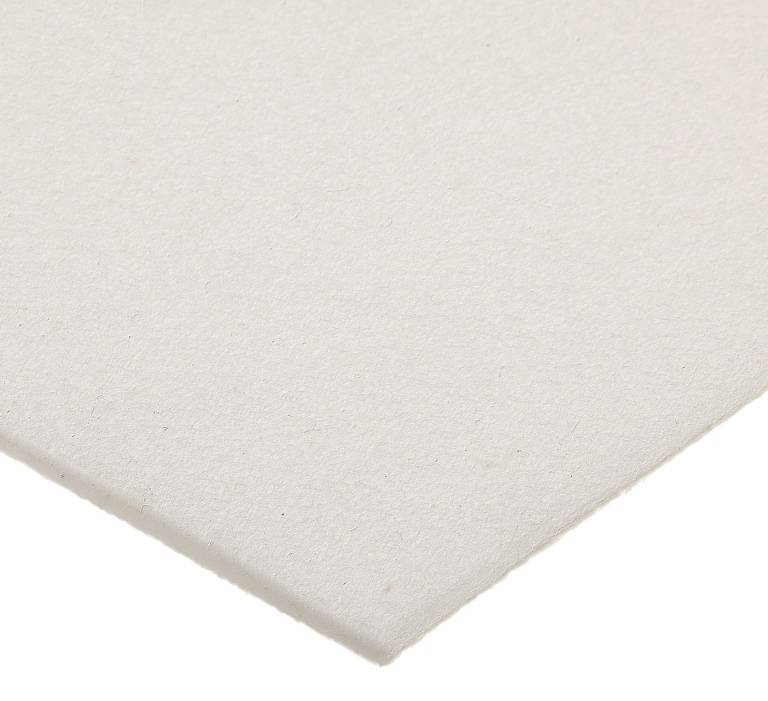

Non-woven geotextile manufactured from 100% virgin polypropylene high tenacity fibres, needle punched and heat treated.

Jump to:
+44 (0) 113 202 5678 Website

Application

Typical applications include, but are not limited to:

  • Filtration and separation of granular material within subbase construction.
  • Filtration and separation within permeable pavement construction.
  • Filtration and separation within SUDs applications.

Description

Non-woven geotextile manufactured from 100% virgin polypropylene high tenacity fibres, UV stabilised, needle punched and heat treated.


Features and benefits:

  • Optimised for maximum strength and performance – not mass.
  • Available in wide widths to allow for minimal construction costs – up to 6 m.
  • Manufactured from a distinctive blend of high tenacity fibres.
  • 100% virgin polypropylene fibres for guaranteed durability.
  • Carbon black for UV stability.

General information

Color

White

Finish

Natural

Material

Polypropylene

Shape

Rectangle

Length

100000 mm

Width

6000 mm

Height

0.9 mm

Uniclass

Pr_25_57_65_60 Plastics sheetsPrimary

CAWS

J42/12 Inverted roof covering

J42/10 Warm deck roof covering

R12/492 Geotextile membranes – filter

D20/58 Geotextile sheet

D20/57 Geosynthetic sheet

Q20/170 Geotextile filter/ separator membrane

J42/383 Separating layer

R16/375 Geotextile membrane for groundwater pressure relief drainage

D20/550 Geotextile sheet

Q25/365 Geotextile sheet

Specification data - Plastics sheets

Material

Polypropylene.

Purpose

Geotextile.

Standard

To BS 8661, Profile 1; To BS EN 13249, BS EN 13250, BS EN 13251, BS EN 13252, BS EN 13253, BS EN 13254, BS EN 13255, BS EN 13257, BS EN 13265.

Performance characteristics

-

Tensile strength (minimum)

To BS EN 10319, MD 9.0 kN/m; CMD 9.8 kN/m.

Elongation to break

To EN ISO 10319, MD 60%; CMD 65%.

UV stabilization

To EN ISO 13438, 2688 hours.

Recycled content

None – virgin material.

Form

Non-woven.

Physical properties

-

Colour

White.

Dimensions

-

Thickness (minimum)

0.7 mm.

Guidance for specification option:

Tested to EN ISO 9863-1 @ 2 kPa (nominal).

Width (minimum)

6 m.

Roll length (minimum)

100 m.

Execution

Consult manufacturer for details.

Product Reference

HPS 1.4 Geotextile

Water permeability

To EN ISO 11058, 100 L/(m²·s).

Weathering

To EN ISO 12224, to be covered within one month after installation.

CBR puncture resistance

To EN ISO 12236, 1.4 kN.

Guidance for specification option:

Static puncture (CBR).

Sustainability data

Contains Red List materials

No

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %

Third party certifications

CE Marking

CE Marking

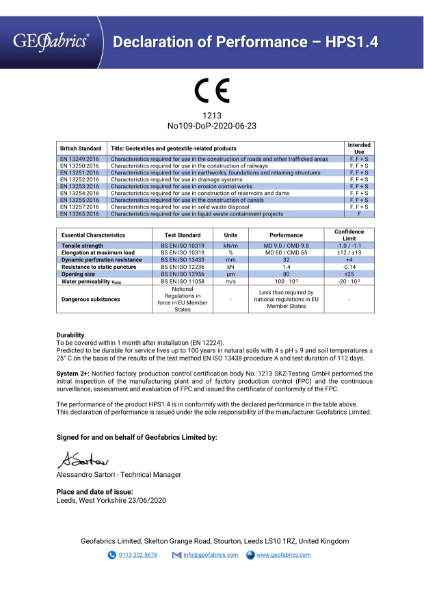

Declaration of Performance – HPS1.4 - CE

ISO 9001 Quality Management

ISO 9001 Quality Management

GEOFABRICS LIMITED ISO 9001:2015

Literature

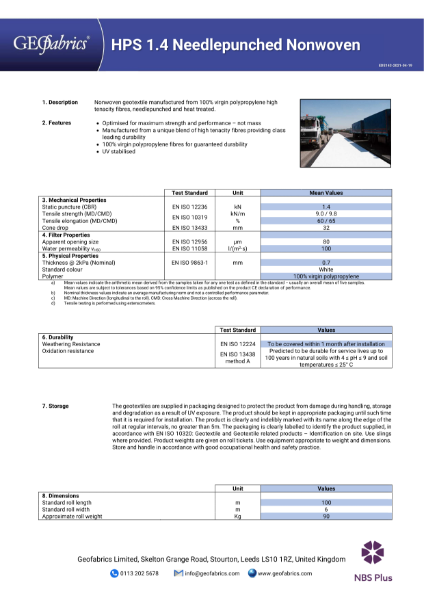

HPS 1.4 Needlepunched Nonwoven Product Data

HPS 1.4 Needlepunched Nonwoven Product Data
