HPS 3.3 Retaining Wall & Gabion Basket Filter Geotextile

Verified by manufacturer 3 months ago

Geofabrics Ltd Third party certifications:
  • CE Marking

    Certificate type

  • UK Conformity Assessed (UKCA)

    UK Conformity Assessed (UKCA)

    Certificate type

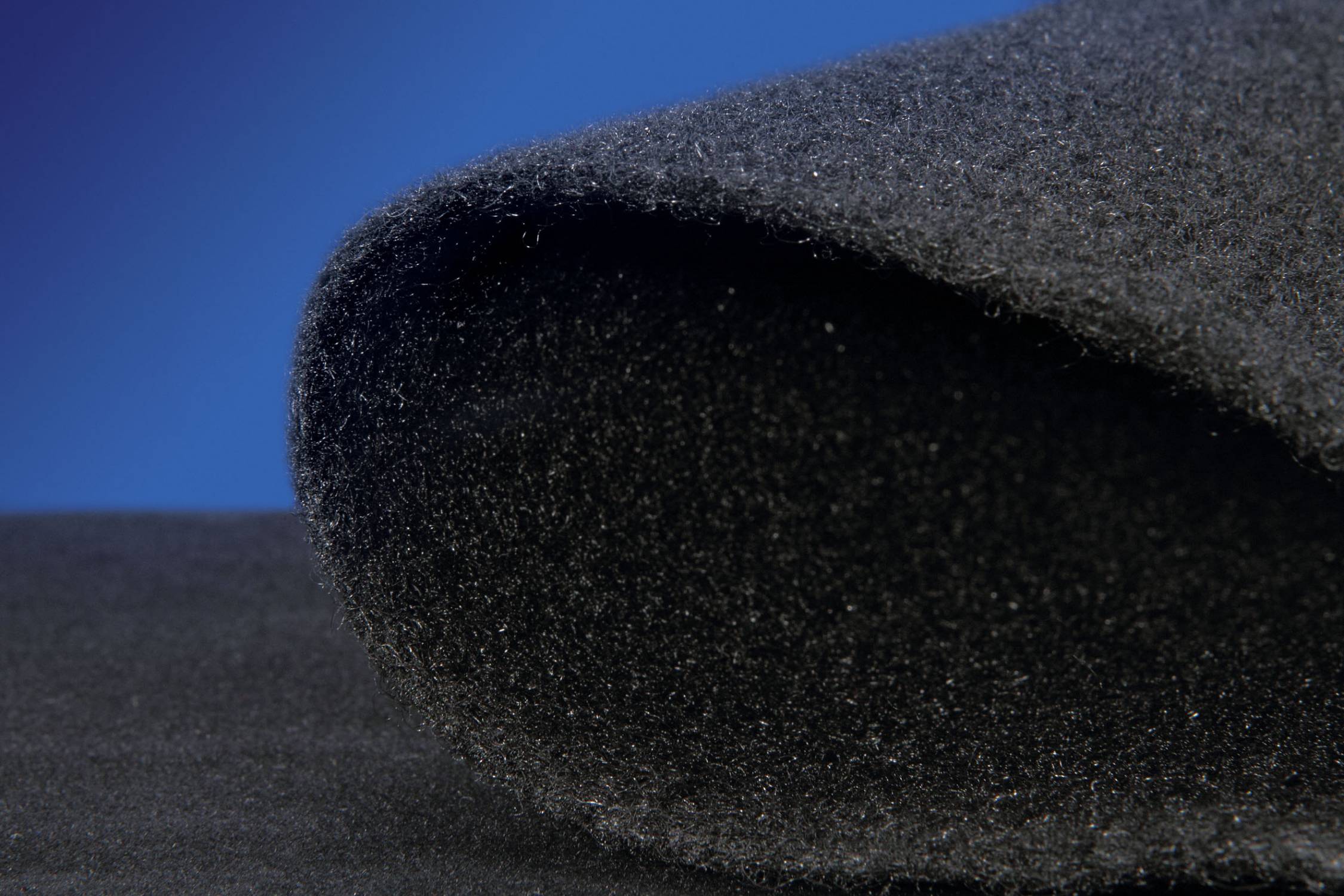

Thick needle punched nonwoven geotextile manufactured from 100% virgin polypropylene high tenacity fibres containing 1% active carbon black.

Jump to:
+44 (0) 113 202 5678 Website

Application

Typical applications include, but are not limited to:

  • Soil particle filtration and separation between gabion baskets and retained earth or fill.
  • Soil particle filtration and separation between retaining walls and confined earth or fill.

Description

Thick needle punched nonwoven geotextile manufactured from 100% virgin polypropylene high tenacity fibres containing 1% active carbon black.


Features and benefits:

  • Optimised for maximum strength and performance – not mass.
  • Available in wide widths to allow for minimal construction costs – up to 6 m.
  • Manufactured from a unique blend of high tenacity fibres.
  • 100% virgin polypropylene fibres for guaranteed durability.
  • Carbon black for UV stability.

General information

Color

Black

Finish

Natural

Material

Polypropylene

Shape

Rectangle

Length

50000 mm

150000 mm

Width

3000 mm

6000 mm

2000 mm

Height

3 mm

Uniclass

Pr_25_57_65_60 Plastics sheetsPrimary

CAWS

J42/10 Warm deck roof covering

J42/12 Inverted roof covering

D20/550 Geotextile sheet

D41/240 Geotextile

J42/383 Separating layer

J44/280 Geotextile protective lining

Q20/170 Geotextile filter/ separator membrane

Q25/365 Geotextile sheet

D20/57 Geosynthetic sheet

R12/492 Geotextile membranes – filter

Specification data - Plastics sheets

Material

Polypropylene.

Purpose

Geotextile.

Standard

To BS EN 13249, BS EN 13250, BS EN 13251, BS EN 13252, BS EN 13253, BS EN 13254, BS EN 13255, BS EN 13257, BS EN 13265.

Performance characteristics

-

Tensile strength (minimum)

To BS EN 10319, 22 kN/m.

Guidance for specification option:

MD/CMD.

Elongation to break

To EN ISO 10319, 80%.

Guidance for specification option:

MD/CMD.

UV stabilization

To EN ISO 13438, 2688 hours.

Form

Micro-perforated (Needle punched), non-woven.

Physical properties

-

Colour

Black.

Dimensions

-

Thickness (minimum)

3 mm.

Width (minimum)

6 m.

Roll length (minimum)

150m

Recycled content

None – virgin material.

Execution

Consult manufacturer for details.

Water permeability

To EN ISO 12956, 85 L/(m²·s).

Weathering

To EN ISO 12224, >90% retained strength.

CBR puncture resistance

To EN ISO 12236, 3 kN.

Guidance for specification option:

Static puncture (CBR).

Product Reference

HPS 3.3 Retaining Wall & Gabion Basket Filter Geotextile

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %

Third party certifications

CE Marking

CE Marking

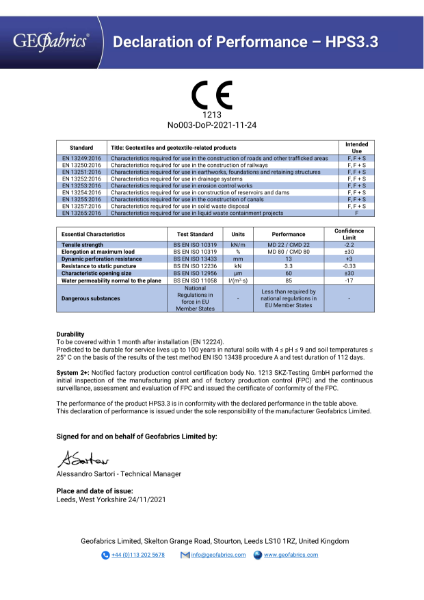

Declaration of Performance – HPS3.3 - CE

UK Conformity Assessed (UKCA)

UK Conformity Assessed (UKCA)

Declaration of Performance – HPS3.3 - UKCA

Literature

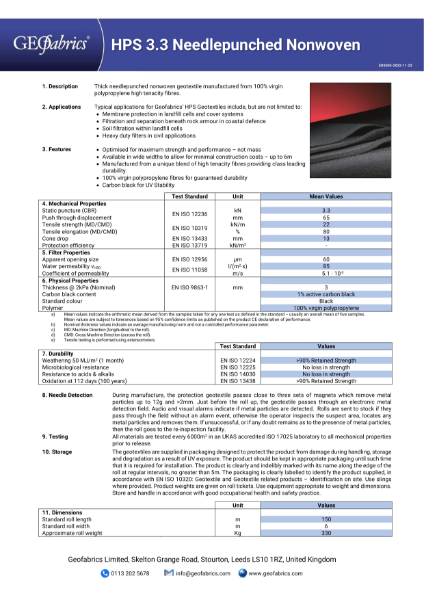

HPS 3.3 Needlepunched Nonwoven Product Data

HPS 3.3 Needlepunched Nonwoven Product Data

Similar products from Geofabrics Ltd

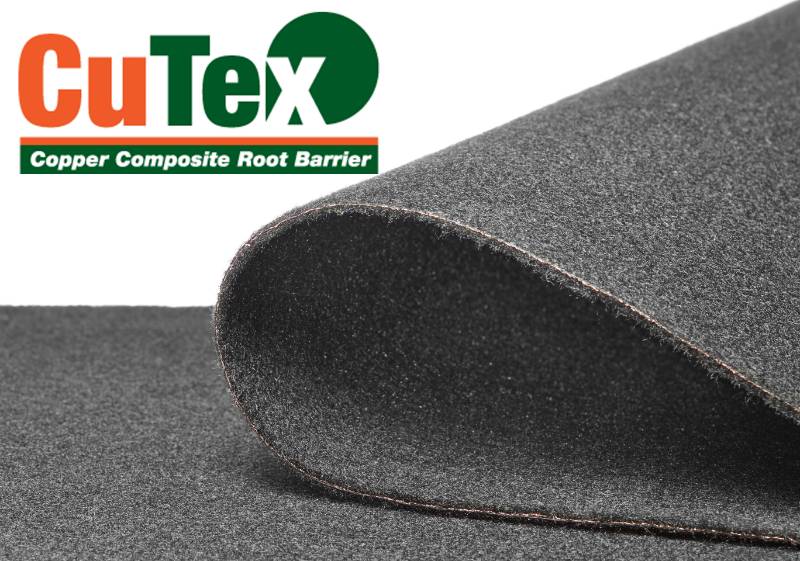

CuTex Copper Composite Root Barrier
