Hush Underlay For Vinyl Flooring - Acoustic Underlay

Name: Hush Underlay For Vinyl Flooring - Acoustic Underlay
Brand: Hush Acoustics
SKU: jkKtijFxVgC2dQ6i87HLkc

Verified by manufacturer 2 months ago

Hush Acoustics

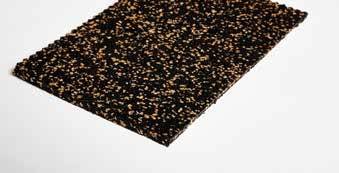

Acoustic rubber membrane providing an underlay for vinyl flooring.

Jump to:

+44 (0)114 551 8683 Website

Application

Hush Underlay For Vinyl Flooring is suitable for use in many market sectors, including residential, industrial, educational, healthcare and leisure.

It is suitable for laying over concrete, screeded and timber floors and can be used with under floor heating.

Can also be used as an alternative product for Robust Details specifications.

Description

Acoustic membrane consisting of a fine granulate of recycled rubber with a cork and PU elastomer bonding agent. It is a resilient layer suitable for use under most floor finishes and has been developed for use in many market sectors, including residential, industrial, educational, healthcare and leisure.

Features and benefits:

Easy to install.
Remains continually elastic.
Fully recycled.
Minimal construction height.
Suitable to be laid over concrete, screeded and timber floors.
Can be used with under floor heating.
Excellent thermal properties and footfall noise reduction.
Can be used in refurbishment and new build developments.
Building Regulations Approved Document E (England & Wales), Technical Handbook Section 5 (Scotland) and Technical Handbook G (Northern Ireland) compliant.
Can be used as an alternative product for Robust Details specifications.

Suitable coverings:

Ceramic tile, sheet vinyl, stone floors, laminate, wood floors, parquet, carpet, flotex and marble floors.

General information

Color	Black Beige
Finish	- Manufacturer guidance Fine granulate.
Material	Rubber Cork
Shape	Rectangle
Length	20000 mm Guidance for specification option: Roll length.
Width	1000 mm Guidance for specification option: Roll width.
Height	3 mm 4.5 mm 5 mm

Uniclass	Pr_25_57_06_71 Resilient layer insulationPrimary
CAWS	K21/10 Wood laminate flooring K21/140 Battened wood laminate flooring K21/145 Composite laminate flooring K21/146 Laminate flooring K21/20 Composite laminated flooring

Product range	Acoustic Rubber Materials

Specification data - Resilient layer insulation

Material	Recycled rubber mat. Guidance for specification option: Fine granulate of recycled rubber with a cork and PU elastomer bonding agent.
Density	390 kg/m³.
Thickness	3 mm. Guidance for specification option: 2.05 kg/m². 4.5 mm. 5 mm. Guidance for specification option: 3.62 kg/m².
Fire performance	Flammability rating: B2.
Sound insulation rating	3 mm: 18 dB. 5 mm: 21 dB.
Recycled content As defined in clause 7.8 of BS EN ISO 14021	100% Rubber.

Roll size	20 x 1 m. Guidance for specification option: L x W.
Colour:	Black/ beige.
Surface finish	Fine granulate.
TensileStrength	To DIN 53571: 0.6 N/mm².
Elongation at break	3 mm: 50%. 5 mm: 60%. Manufacturer guidance To DIN 53571.
Service temperature	-30 to +80°C.
