Application

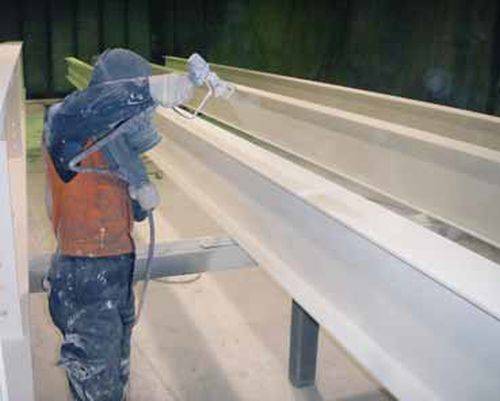

  • Designed for on-site application to structural steel requiring protection from cellulosic fire.
  • Interchar 1190 should always be applied over a recommended anti-corrosive coating scheme.
  • Interchar 1190 (whether sealed or not) should be protected from pooling or running water. It is not designed for frequent water immersion/ soaking.

Description

Features and benefits:

  • Interchar 1190 is a low VOC acrylic intumescent material independently fire tested in accordance with BS EN 476-20, 21 and 22.
  • To provide up to two hours cellulosic fire protection on beams, columns and hollow sections exposed in interior environments.
  • Solvent free.

General information

Color

White

Finish

Matt

Material

Acrylic

Shape

Other

Uniclass

Pr_35_31_68_43 Intumescent protective coatingsPrimary

CAWS

M61/110 On-site coating to primed steel

M61/115 On-site coating to galvanized steel

M61/120 On-site coating to existing steel

M61/140 On-site overcoating to existing steel

SKU Code

unknown

Specification data - Intumescent protective coatings

Classification data

Composition

Water-based.

Colour

White.

Product Reference

Interchar® 1190

Wet film thickness (minimum)

362–1014 μm.

Guidance for specification option:

Microns wet.

Dry film thickness

250–700 μm.

Guidance for specification option:

Microns dry.

Primer

Intercryl 525.
Intercure 200.
Intercure 200HS.
Intergard 251.
Intergard 269.
Intergard 276.
InterH2O 499.
Interprime 306.
Interseal 670HS.

Top coat

Intercryl 525.
Intersheen 579.
Interthane 870.
Interthane 990.
