Application

To assist in preserving the structural integrity of steelwork in a cellulosic fire in structures such as airport terminals, leisure facilities, convention centres, educational facilities, shopping malls, industrial complexes and hotels. Interchar 212 utilizes tough, durable epoxy technology to provide a material that allows for steelwork to be fabricated and fire protected away from the construction site, which helps in both improving quality control and reducing construction schedules.

Description

Solvent-free Interchar 212 is a high build, robust, two component modified epoxy intumescent providing damage-resistant fire and corrosion protection.


Features and benefits:

  • Designed to be used on steelwork requiring protection from cellulosic fires.
  • Independently fire tested.
  • Recognised by FM Approvals as a Specification Tested Product in accordance with ASTM E119. T
  • Tested in accordance with UL 263 (exterior listed) and BS EN 476-20, 21 and 22.
  • Can provide fully fireproofed steelwork without the need to topcoat.
  • Primarily a spray-applied material and performs without the requirement for any reinforcement.

General information

Color

Grey

Finish

Matt

Guidance for specification option:

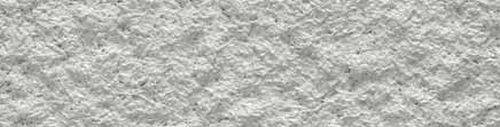

Textured finished.

Material

Epoxy

Guidance for specification option:

Two pack modified epoxy intumescent fireproof coating.

Uniclass

Pr_35_31_68_43 Intumescent protective coatingsPrimary

CAWS

M61/110 On-site coating to primed steel

M61/115 On-site coating to galvanized steel

M61/120 On-site coating to existing steel

M61/140 On-site overcoating to existing steel

M61/150 Off-site coating to unprimed steel

M61/160 Off-site coating to primed steel

M61/170 Off-site coating to galvanized steel

Specification data - Intumescent protective coatings

Composition

Epoxy-borne.

Colour

Medium grey.

Product Reference

Interchar® 212

Dry film thickness (minimum)

2–8 mm.

Primer

Intercure 200.

Intercure 200HS.

Intergard 251.

Intergard 269.

Intergard 276.

Show more

Top coat

Interfine 878.

Interfine 979.

Interthane 870.

Interthane 990.
