Inverter (1-phase, LV) with Stackable Battery - Energy Sys: Inverter & Stackable Battery

Name: Inverter (1-phase, LV) with Stackable Battery - Energy Sys: Inverter & Stackable Battery
Brand: EQONIC GROUP LIMITED
SKU: xak4YPuisAC53bRLmrP8zV

Verified by manufacturer 27 days ago

EQMHG-1P3

EQONIC GROUP LIMITED

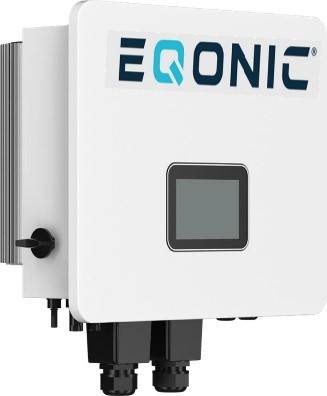

A low voltage, all-in-one single-phase inverter and battery system. Inverter capacity: 3 / 3.6 / 5 / 6 / 8 kW. Battery capacity: 5 / 10 / 15 kWh.

Jump to:

+44 20 7101 0733 Website

Application

Sized for residential, small-scale uses, the low-voltage series offers a wide range of systems to fit the currently installed system requirements. Typically installed for private properties, houses, or apartments.

Description

An all-in-one inverter and battery system, designed for versatile applications such as self-consumption, peak shaving, valley filling and backup power supply. The inverter has comprehensive protection features including island protection, PV and battery reverse polarity protection, insulation and residual current monitoring, AC overcurrent and overpower protection and short circuit protection. It supports smart on/ off-grid automatic switching, Intelligent Energy Management System (EMS) functions, parallel connections up to four units, and flexible input from PV, batteries, generators, power grids and loads. The modular plug-and-play battery design ensures simple installation and comes with a ≥6000 cycles/ten years warranty. It features a smart BMS with RS/CAN protocol, safe and reliable LiFePO4 technology, high efficiency, short circuit and overcharge protection, long life, maintenance-free operation and remote monitoring capabilities.

Features and benefits (inverter):

Includes island protection, PV reverse polarity protection, battery reverse polarity protection, insulation monitoring, residual current monitoring, AC over current protection, AC over power protection and short circuit protection.
Multiple application modes such as self-consumption, peak shaving and valley filling and backup power supply.
Intelligent Energy Management System (EMS) function.
Smart on/off-grid automatic switching function.
Parallel connection up to four units.
Support simultaneous input of PV, batteries, generators, power grids and loads.

Features and benefits (battery):

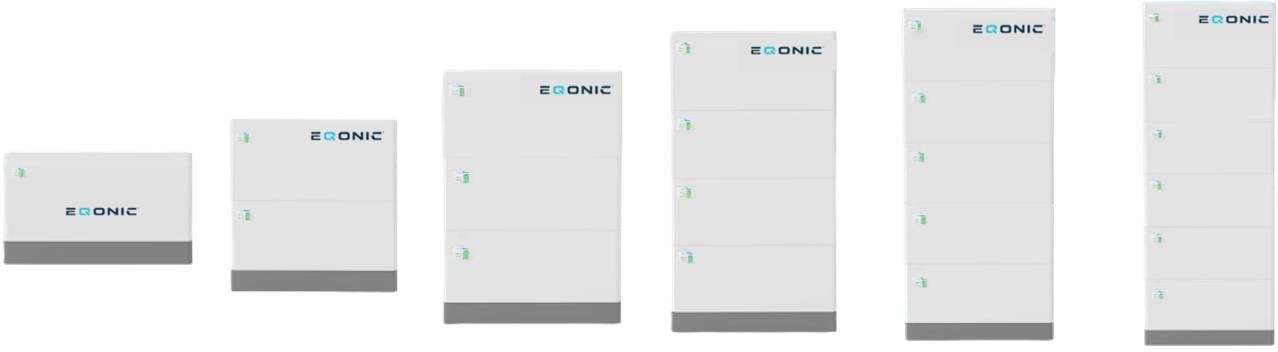

Modular plug-and-play design.
≥6000 cycles/ten-year warranty.
Simple installation.
Smart BMS with RS/CAN protocol.
Safe reliable LiFePO4 technology.
High efficiency.
Short circuit protection.
Overcharge protection.
Long life and maintenance free.
Remote monitoring.

General information

Color	White
Shape	Rectangle
Length	212 mm Guidance for specification option: EQMHG-1P3 to EQMHG-1P5. 200 mm Guidance for specification option: EQMHG-1P6 and EQMHG-1P8. Manufacturer guidance Depth.
Width	451 mm Guidance for specification option: EQMHG-1P3 to EQMHG-1P5. 467 mm Guidance for specification option: EQMHG-1P6 and EQMHG-1P8.
Height	474 mm Guidance for specification option: EQMHG-1P3 to EQMHG-1P5. 484 mm Guidance for specification option: EQMHG-1P6 and EQMHG-1P8.
Warranty description	Ten year Guidance for specification option: Battery.

Uniclass	Pr_65_72_43_42 InvertersPrimary
CAWS	V90/312 Photovoltaic systems

Specification data - Inverters

Input	-
Voltage range	100–500 V d.c. Guidance for specification option: Start-up voltage to maximum PV voltage.
Current (maximum)	16 A.
Output	-
Power rating	3 kW.
Nominal voltage	230 V a.c. Guidance for specification option: Range: 176–270 V.
Nominal frequency	50/60 Hz.
Voltage harmonic distortion	<3%.
Maximum power point tracker (MPPT)	Required.
Topology	Transformerless.
Enclosure	-
Ingress protection (minimum)	To BS EN 60529, IP 65.

Interfaces	RS485, CAN, DRM. RS485, CAN, DRM, 4G. RS485, CAN, DRM, Wifi. RS485, CAN, DRM, Wifi, 4G. Manufacturer guidance RS485, CAN, DRM included as standard. WiFi and 4G are optional.
InputPower	4.5 kW (maximum).
Dimensions	451 x 212 x 474 mm. Guidance for specification option: W x D x H
Batteries	EQLLV-5. Guidance for specification option: Five-star match with inverter. Energy: 5.12 kWh. Nominal capacity: 100 Ah. No. of layers: 1. Recommended charge current: 50 A. Maximum charge/discharge current: 100 A. EQLLV-10. Guidance for specification option: Four-star match with inverter. Energy: 10.24 kWh. Nominal capacity: 200 Ah. No. of layers: 2. Recommended charge current: 50 A. Maximum charge/discharge current: 100 A. Manufacturer guidance Refer to data sheet for full technical specifications.
