Verified by manufacturer 27 days ago
EQMHP-630

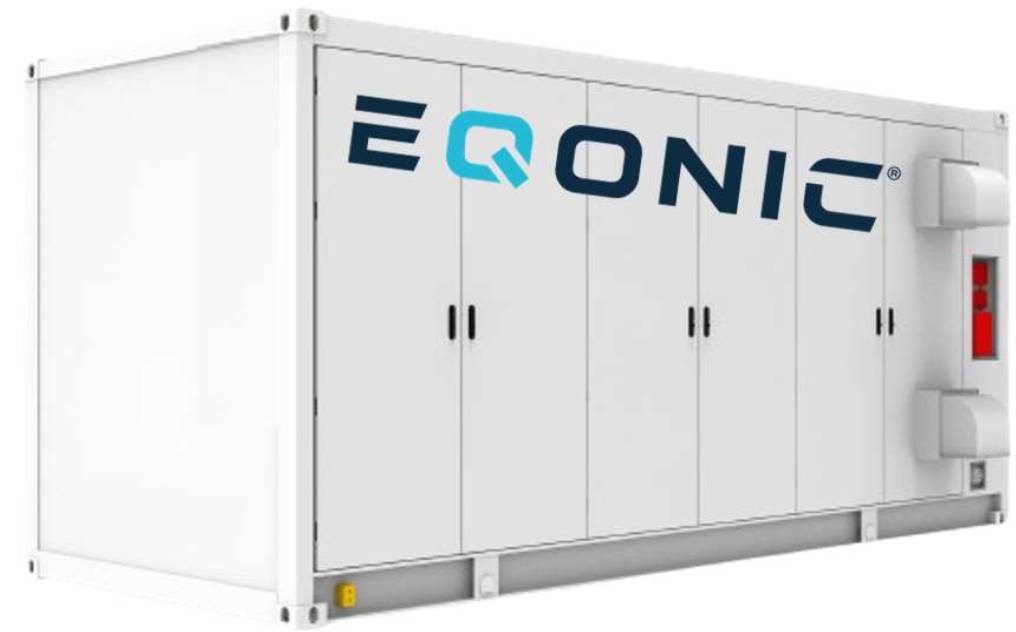

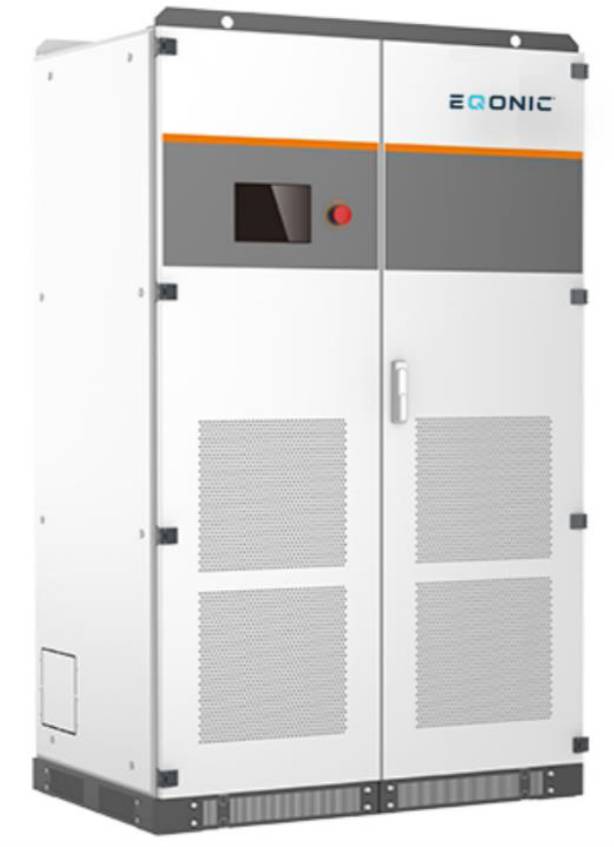

A high voltage, all-in-one three phase inverter and container battery system. Inverter capacity ranges from 630 to 2000 kW. Container battery capacity at 3.404 MWh and 5.015 MWh.
Designed for large-scale, commercial and industrial use, the high-voltage series allows for a greater range of energy storage size. Suitable for factories, hospitals, remote off-grid areas or areas with limited access to electricity, or backup power for buildings to retrofit diesel generators.
An all-in-one inverter and battery system (Battery Energy Storage System BESS). Crafted for self-consumption, peak shaving, valley filling and backup power supply needs. Eqonic's system offers comprehensive protection, compatibility with single-phase and three-phase loads and support for 100% unbalanced loads, reaching a maximum efficiency of 97.9%. It supports generator access, full power discharge, and automatic battery management, operating quietly without external cooling fans while providing UPS functionality for critical loads during outages. Designed for safety and reliability, the battery utilizes high-end, ESS-specific LFP cells for high energy density, long cycle life and non-spontaneous combustion. With smart cooling technology ensuring temperature consistency and modular PCS cooperation eliminating system inconsistencies, the system offers low cost, high charge/ discharge efficiency and versatility for various ESS applications. Advanced O&M is facilitated by a triple-level BMS and EMS for real-time monitoring and control, ensuring precise temperature control and optimal battery consistency.
Features and benefits (inverter):
Features and benefits (battery):
Color | White |
Shape | Rectangle |
Length | 700 mm Manufacturer guidanceDepth. |
Width | 1000 mm |
Height | 2050 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | V90/312 Photovoltaic systems |
Input | |
Voltage range | 600–900 V d.c. |
Current (maximum) | 909 A.Manufacturer guidanceAC (on-grid) rated current. |
Output | |
Power rating | 630 kW. |
Nominal voltage | 320–460 V a.c. |
Nominal frequency | 50/60 Hz.Manufacturer guidanceRated frequency, AC (on-grid). |
Voltage harmonic distortion | <3%. |
Overall efficiency (minimum) | Manufacturer guidanceMaximum efficiency: 98.70%. |
Topology | Transformerless. |
Enclosure | |
Ingress protection (minimum) | To BS EN 60529, IP 21. |
Interfaces | BMS: RS485, CAN; EMS: RS485, TCP/IP. |
Certification | IEC/EN 62109-1/-2, IEC/EN 62477-1, IEC/EN 61000-6-2, IEC/EN 61000-6-4, CGC. |
Batteries | EQCB-3.404. Guidance for specification option:
EQCB-5.015. Guidance for specification option:
Manufacturer guidanceRefer to data sheet for full technical specifications. |
Expected Life | 15 year |
