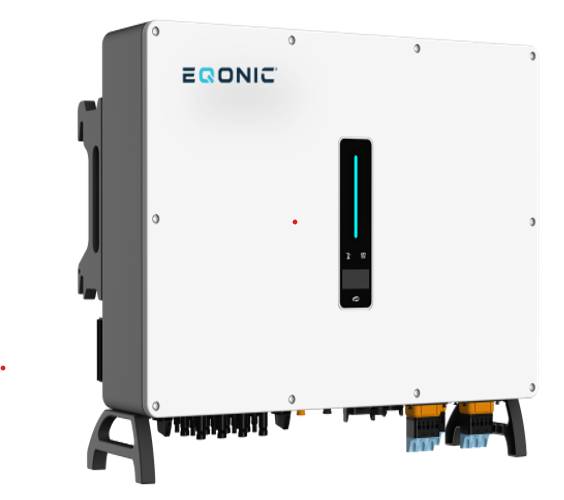

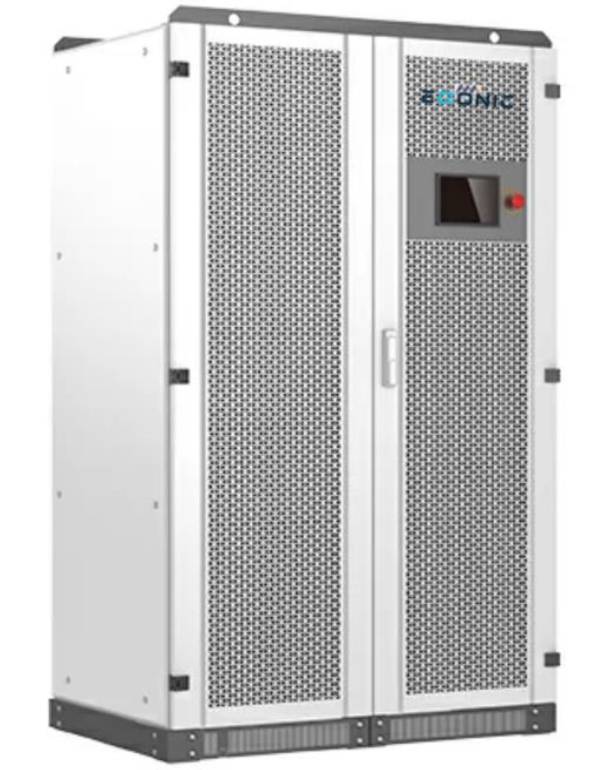

Inverter with Cabinet Battery - Energy System Inverter & Cabinet Battery

Verified by manufacturer 27 days ago

EQSH-3P30

EQONIC GROUP LIMITED Variant:

A high voltage, all-in-one three phase inverter and cabinet battery system. Inverter capacity: 30-500 kW. Battery capacity: 96 - 578 kWh.

Jump to:
+44 20 7101 0733 Website

Application

Designed for large-scale, commercial and industrial use, the high-voltage series allows for a greater range of energy storage size. The large system is suitable to supply power for mid-size factory buildings, hospitals, apartments, hotels, or shopping complex.

Description

An all-in-one inverter and battery system. Tailored for self-use, peak times, and emergency backup, Eqonic's system offers complete protection, versatility with different loads, and efficiency. It supports generator access, ensures full power discharge and operates quietly as a reliable UPS during outages. It has a plug-and-play battery design and also offers a long warranty. Equipped with Smart iBMS technology, liquid cooling, and multiple protection features, it guarantees safety, efficiency and longevity.


Features and benefits (inverter):

  • Includes island protection, PV reverse polarity protection, battery reverse polarity protection, insulation monitoring, residual current monitoring, AC over current protection, AC over power protection, and short circuit protection.
  • Compatible with single-phase load and three-phase load, support 100% unbalanced load, and the maximum efficiency can reach 97.9%.
  • Support generator access.
  • Support full power discharge, automatic management of battery charge/ discharge.
  • Less noise due to no external cooling fans.
  • UPS for the important loads when power off.

Features and benefits (battery):

  • Modular plug-and-play design.
  • ≥8000 cycles/ten-year warranty.
  • Smart iBMS with RS/CAN protocol.
  • Safe reliable LiFePO4 technology.
  • Liquid cooling technology.
  • High efficiency.
  • Short circuit protection.
  • Overcharge protection.
  • Long life and maintenance free.
  • Remote monitoring.
  • Supports parallel use.

General information

Color

White

Shape

Rectangle

Length

300 mm

Guidance for specification option:

EQSH-3P30 to EQSH-3P50.

720 mm

Guidance for specification option:

EQMHM-250 and EQMHM-500.

800 mm

Guidance for specification option:

EQMHM-250 and EQMHM-500.

1050 mm

Guidance for specification option:

EQMHM-250 and EQMHM-500.

Manufacturer guidance

Depth.

Width

800 mm

Guidance for specification option:

EQSH-3P30 to EQSH-3P50.

1200 mm

Guidance for specification option:

EQMHM-100 and EQMHM-150.

600 mm

Guidance for specification option:

EQMHM-250 and EQMHM-500.

1600 mm

Guidance for specification option:

EQMHM-500.

Height

620 mm

Guidance for specification option:

EQSH-3P30 to EQSH-3P50.

2050 mm

Guidance for specification option:

EQMHM-100 to EQMHM-500.

Warranty description

Ten year

Guidance for specification option:

Battery.

Uniclass

Pr_65_72_43_42 InvertersPrimary

CAWS

V90/312 Photovoltaic systems

Specification data - Inverters

Input

-

Voltage range

135–1000 V d.c.

Guidance for specification option:

PV input: Start-up voltage to maximum DC input voltage.

Current (maximum)

30 A.

Output

-

Power rating

30 kW.

Nominal frequency

50/60 Hz.

Manufacturer guidance

Rated AC frequency.

Voltage harmonic distortion

<3%.

Guidance for specification option:

At rated output power.

Maximum power point tracker (MPPT)

Required.

Enclosure

-

Ingress protection (minimum)

To BS EN 60529, IP 65.

Interfaces

CAN, RS485.

CAN, RS485, WiFi/LAN.

Manufacturer guidance

CAN, RS485 is provided as standard. WiFi/LAN is optional.

InputPower

45 kW (maximum).

Dimensions

800 x 620 x 300 mm.

Guidance for specification option:

W x H x D

Weight

72 kg.

Batteries

EQWC-96.

Guidance for specification option:

  • Five-star match with inverter.
  • AC side rated capacity at BOL: 96.46 kWh.
  • Rated voltage range: 240–350.4 V.
  • Dimensions: 1600 x 2200 x 1435 mm (W x H x L).

EQWC-144.

Guidance for specification option:

  • Four-star match with inverter.
  • AC side rated capacity at BOL: 144.69 kWh.
  • Rated voltage range: 360–525.6 V.
  • Dimensions: 1600 x 2200 x 1435 mm (W x H x L).

EQWC-192.

Guidance for specification option:

  • One-star match with inverter.
  • AC side rated capacity at BOL: 192.92 kWh.
  • Rated voltage range: 480–700.8 V.
  • Dimensions: 1600 x 2200 x 1435 mm (W x H x L).

EQWC-258.

Guidance for specification option:

  • One-star match with inverter.
  • Rated capacity: 258 kWh.
  • Rated power: 125 kW.
  • Rated voltage: 921.6 V (d.c. battery); 400 V (a.c. side).

EQWC-289.

Guidance for specification option:

  • One-star match with inverter.
  • Rated capacity: 289 kWh.
  • Rated power: 135 kW.
  • Rated voltage: 921.6 V (d.c. battery); 400 V (a.c. side).

Show more

Manufacturer guidance

Refer to data sheet for full technical specifications.

Sustainability data

Expected Life

15 year

Literature

High Voltage Three Phase Hybrid Inverters Data Sheet

High Voltage Three Phase Hybrid Inverters Data Sheet

High Voltage Three Phase Microgrid Hybrid Inverters Data Sheet

High Voltage Three Phase Microgrid Hybrid Inverters Data Sheet

Standing Cabinet Lithium Batteries Data Sheet

Standing Cabinet Lithium Batteries Data Sheet

General Product Overview

General Product Overview
