JD47 Non-thermal Door and Shopfront - Aluminium Doorset
Verified by manufacturer 1 day ago
Non-thermal commercial door system.
Application
Well suited for high-traffic commercial and public-sector buildings including:
- Commercial.
- Schools.
- Leisure facilities.
- Retail premises.
- Offices.
- Car showrooms.
Description
The JD47 Non-Thermal Shopfront and Commercial Door System offers the a non-thermal solution for a wide range of commercial applications. Robust and secure, JD47 is specially designed to offer top levels of security, a 22 mm glazing height on the beads means a greater glass coverage and higher resistance to attacks on the glazing units.

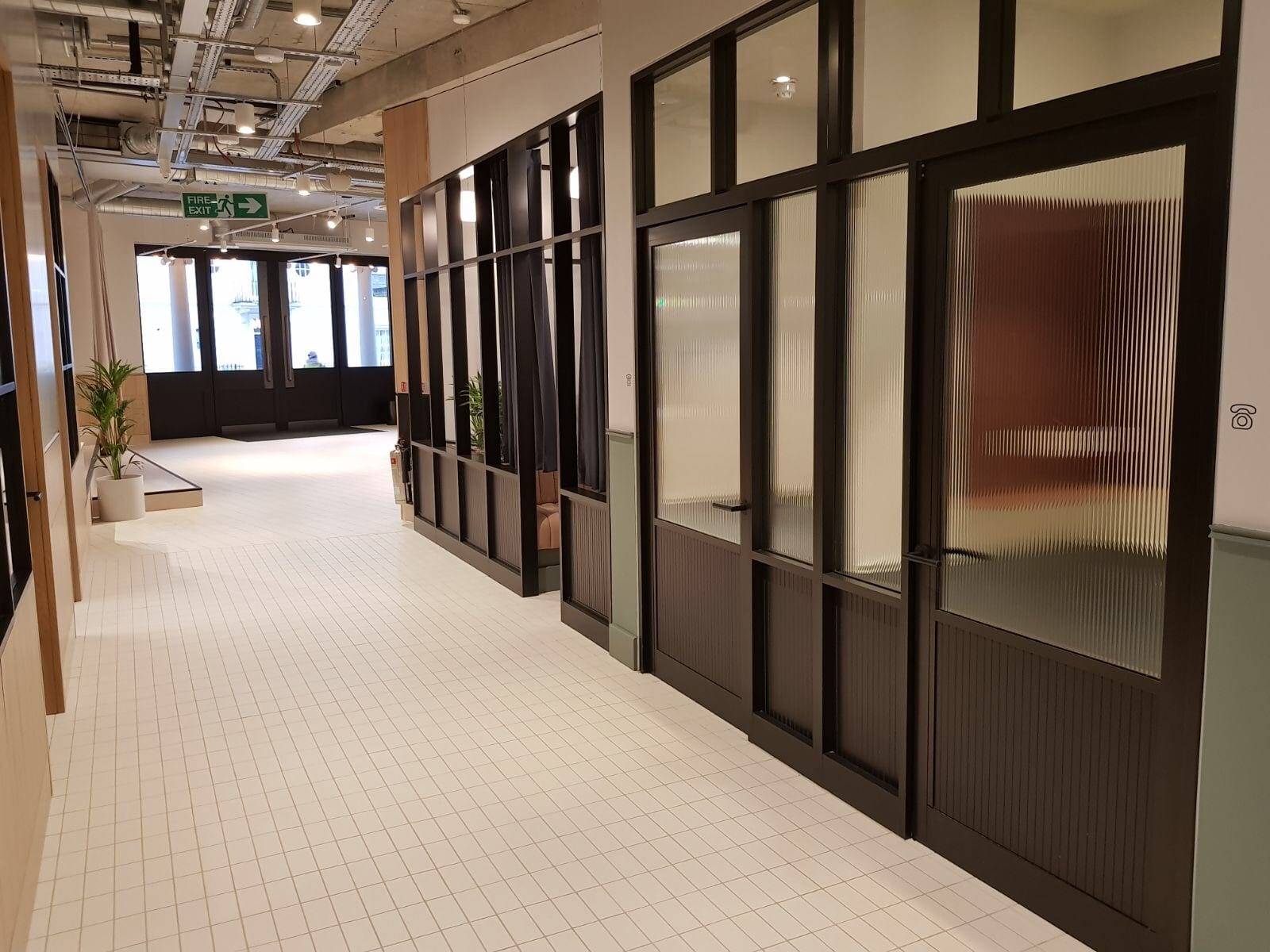

A proven high-performance system, JD47 is popular for commercial applications where non-thermal partitioning is required. The system has a large range of design options available, including four header bar solutions for standard and automatic doors, single or double door configurations and a range of shopfront and internal partitioning options.
Features and benefits:
- Wide range of design solutions.
- Improved security achieved by integral external beading.
- 50 mm sightlines for both single and double glazed doors.
- Extensive range of thresholds available.
- Available in single and double glazed.
- Can be integrated with TD68 Thermal Commercial Doors, TW70 TruEnergy Windows and JCW Curtain Walling.
General information
Color | Beige Black Blue Bronze Brown |
Finish | Powder-coated |
Material | Aluminium |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | L20/55 Doorsets L20/480 Doorsets |
SKU Code | JD47 |
Specification data - Aluminium doorsets
Classification data | |
Configuration | Single-leaf, single-action. Double-leaf, single-action. Single sliding door. Double sliding door. |
Doorset size | Manufacturer guidanceConsult manufacturer for details and insert requirements. |
Performance | |
Acoustic performance | Unrated. |
Strength and durability | Unrated. |
Frame | |
Material | Aluminium. |
Threshold | 100 mm threshold. 150 mm threshold. Drained threshold. Other. Guidance for specification option: Extensive range of thresholds available, including standard threshold, square threshold and double sloped threshold. Consult manufacturer for details and insert requirements. |
Perimeter seals or inserts | Manufacturer guidanceConsult manufacturer for details and insert requirements or omit. |
Finish | |
Coating | Polyester powder-coated. |
Texture | Gloss. Matt. Satin. |
Colour | Manufacturer guidanceInsert requirements.
|
Installation fasteners | Manufacturer guidanceConsult manufacturer for details and insert requirements. |
Frame accessories | Manufacturer guidanceConsult manufacturer for details and insert requirements or omit. |
Door leaf | |
Thickness | 47 mm. |
Core | Manufacturer's standard. |
Panel details | Manufacturer's standard. |
Material | Aluminium. |
Perimeter seals | Manufacturer guidanceConsult manufacturer for details and insert requirements or omit. |
Glazing | |
Type | Not required. Glazed, 6–28 mm. Guidance for specification option:
|
Manifestation | Manufacturer guidanceConsult manufacturer for details and insert requirements or omit. |
Glazing accessories | Manufacturer guidanceConsult manufacturer for details and insert requirements or omit. |
Beading | |
Type | Internal. |
Material | Manufacturer's standard. |
Fixing | Manufacturer's standard. |
Finish | |
Coating | Polyester powder-coating. |
Texture | Gloss. Matt. Satin. |
External colour | Manufacturer guidanceInsert requirements.
|
Internal colour | As external. Other. Guidance for specification option: Insert requirements.
|
Film thickness (minimum) | 60 microns as standard. |
Hardware | Manufacturer guidanceA wide range of hardware options across manual locking doorsets, remote access doorsets and panic exit doorsets. Consult manufacturer for details and insert requirements. |
Accessories | Manufacturer guidanceConsult manufacturer for details and insert requirements. |
Sightline | 50 mm. |
Sustainability data
Material | Aluminium |
