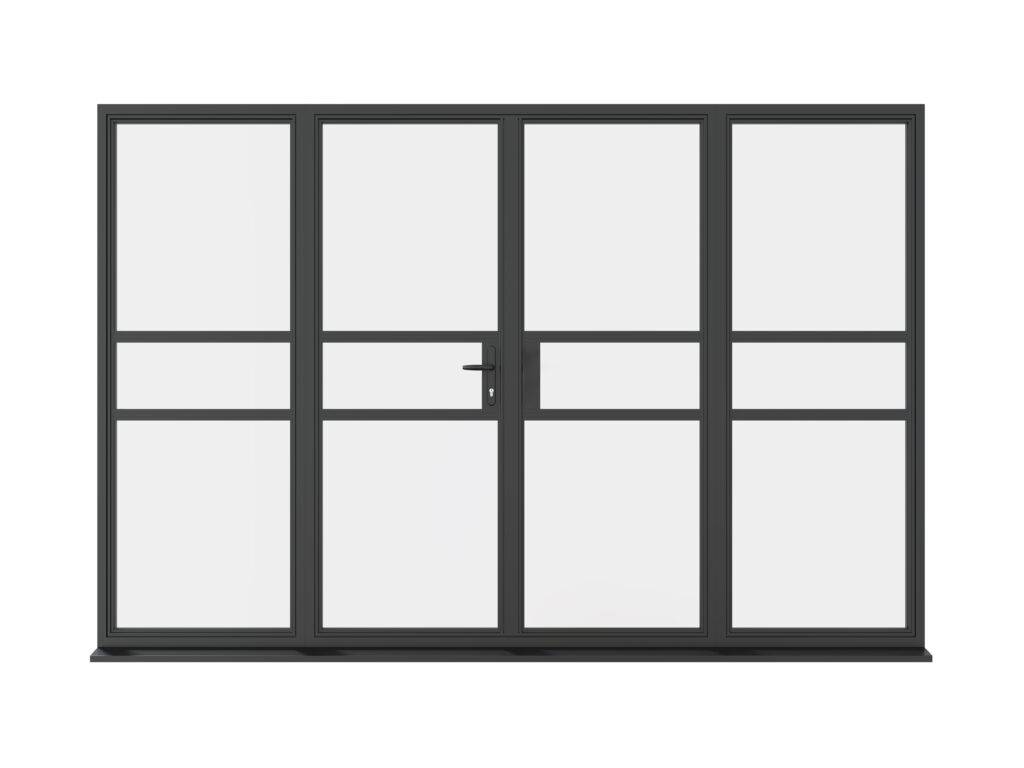

SD70 TruEnergy Heritage Door - Aluminium Doorset
Verified by manufacturer 4 days ago
Heritage style, high-performance aluminium door system.
Application
Suitable for residential and larger refurbishments projects or listed building renovations where the requirement for replica slim line heritage style doors is required, including:
- Housing.
- Retail units.
- Offices.
- Internal glazed screens.
- External doors and sidelights.
Description
SD70 TruEnergy heritage doors provide a solution for homeowners looking to create an art-deco or industrial style for external doors and internal doors and screening. This modern, high-performance aluminium heritage door system allows for slim, clean, contemporary style looks also contributing to allowing maximum light to flow throughout properties.
This versatile residential/ light commercial heritage door system can be used as a front entrance door, side entrance door and rear entrance door and is available in both single and double door combinations. It can also be manufactured to provide modern internal screening for domestic and commercial properties, to separate living, working and shopping spaces whilst maintaining high levels of natural light throughout a building.
Features and benefits:
- Single and double heritage doors.
- Open in and open out.
- Slim sightlines.
- Flush finish.
- Internally glazed.
- Multi-point locking and barrel hinges.
- Fully mitred.
- Available in standard and non-standard colours, and is also available in dual-colour combinations.
- Suites with RD70, TW70 and SW60 TruEnergy systems.
- Document L compliant.
General information
Color | Beige Black Blue Bronze Brown |
Finish | Powder-coated Matt Satin Gloss Textured |
Material | Aluminium |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | L20/55 Doorsets L20/480 Doorsets |
SKU Code | SD70 |
Specification data - Aluminium doorsets
Classification data | |
Configuration | Single-leaf, single-action (open in). Single-leaf, single-action (open out). Double-leaf, single-action (open in). Double-leaf, single-action (open out). |
Doorset size | Manufacturer guidanceInsert requirements.
|
Performance | |
Acoustic performance | Unrated. |
Strength and durability | Unrated. |
Thermal | Manufacturer guidanceU-Value of 1.4 W/m²K (0.7 centre pane value with infills). U value of 1.6 W/m²K (1.0 centre pane value with infills). Consult manufacturer for details and insert requirements. |
Frame | |
Material | Aluminium. |
Threshold | Standard threshold. Low threshold. |
Perimeter seals or inserts | Manufacturer guidanceConsult manufacturer for details and insert requirements or omit. |
Finish | |
Coating | Polyester powder-coated. |
Texture | Gloss. Matt. Satin. Textured. |
Colour | Manufacturer guidanceInsert requirements.
|
Installation fasteners | Manufacturer guidanceConsult manufacturer for details and insert requirements. |
Frame accessories | Manufacturer guidanceConsult manufacturer for details and insert requirements or omit. |
Door leaf | |
Thickness | 70 mm. |
Core | Manufacturer's standard. |
Panel details | Manufacturer's standard. |
Material | Aluminium. |
Perimeter seals | Manufacturer guidanceConsult manufacturer for details and insert requirements or omit. |
Glazing | |
Type | Glazed, 28 mm. Glazed, 36 mm. Manufacturer guidanceInternally glazed. Consult manufacturer for details. |
Manifestation | Manufacturer guidanceConsult manufacturer for details and insert requirements or omit. |
Glazing accessories | Manufacturer guidanceConsult manufacturer for details and insert requirements or omit. |
Finish | |
Coating | Polyester powder-coating. |
Texture | Textured. |
External colour | Manufacturer guidanceInsert requirements.
|
Internal colour | As external. Other. Guidance for specification option: Insert requirements.
|
Film thickness (minimum) | Coating applicator to determine. |
Door accessories | Manufacturer guidanceConsult manufacturer for details and insert requirements or omit. |
Hardware | Multi-point locking and barrel hinges. |
Accessories | Manufacturer guidanceConsult manufacturer for details and insert requirements. |
Sustainability data
Material | Aluminium |
