Junior 160 A (Sliding Door Hardware)
Verified by manufacturer 3 months ago
Junior 160 A (11703)
Junior 160 A (11703)
EPD
Certificate type

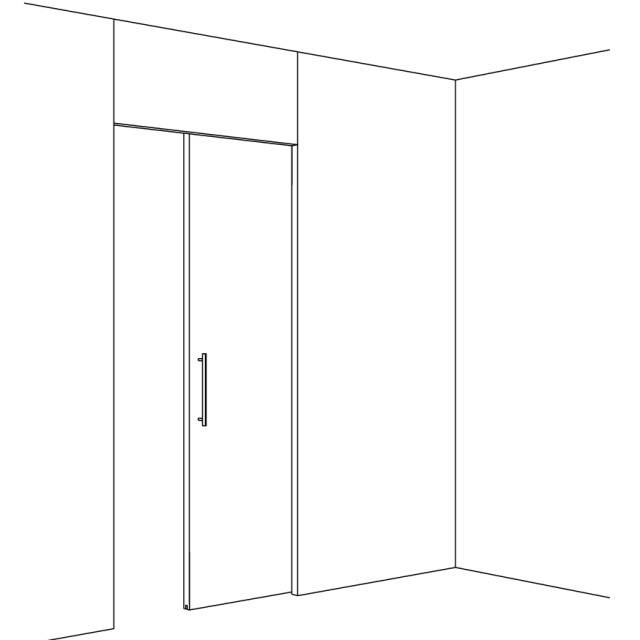

Sliding hardware with bracket suspension, for use with single wooden and metal doors with a panel weight up to 160 kg.
Application
For use with single wooden and metal doors with a panel weight up to 160 kg.
Description
Sliding hardware with bracket suspension, for use with single wooden and metal doors with a panel weight up to 160 kg.
Features and benefits:
- Robust.
- Includes a galvanized steel top fixing plate for bolting or welding.
- Light, silent action.
- Vertically (±4 mm) and laterally adjustable.
Components:
Quantities of each component will vary dependent on variant specified (consult manufacturer for details).
- Two-wheeled trolley M14, with plastic wheels.
- Top fixed plate, galvanized steel with hanger bolt M14 and fixing screws.
- Track stop with adjustable retaining force (11703) and with two track stops (26043), if the sliding door needs to stop at both ends.
- Screw-on rubber door stop.
- Rattle proof guide for screw mounting to floor with groove width 14 mm, black plastic.
- For two-panel sliding doors.
- Order two sets for single doors.
- Consult manufacturer for further details.
General information
Color | Grey |
Finish | Anodized |
Material | Aluminium |
Shape | Rectangle |
Warranty description | Two year |
Uniclass | |
CAWS | P21/10 Door track and running gear P21/350 Door track and running gear |
Specification data - Door track and running gear
Standard | To EN 1527. |
Third-party certification | TÜV Rheinland LGA Products GmbH, Nürnberg, Germany. |
Classification grades (minimum) | |
Durability | 6. |
Door mass | 3. |
Initial friction | 1. |
Form | Aluminium, plain anodized, pre-drilled, top hung running track.Guidance for specification option: Hole positions vary, consult manufacturer for details. |
Running track | 3000 mm. 4000 mm. 5000 mm. 6000 mm. Cut to size. Guidance for specification option: Insert requirements. |
Accessories/ Other requirements | Not required. Bottom door stop. Guidance for specification option: Available with dull chromium or stainless steel finish; insert requirement. Connecting pins for profiles. Guide profile. Guidance for specification option: Black plastic, groove mounted (1300 mm length). Manufacturer guidanceSpares are also available, consult manufacturer for details. |
Components | One track stop. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Switzerland |
Country of product manufacture | Switzerland |
Recyclability | Yes |
Third party certifications
Third party certifications
EPD
Hawa EPD Sliding door gear EN
Literature
CAT_EN_Hawa_Junior_160_A
