Junior 80 B (Sliding Door Hardware)

Verified by manufacturer 3 months ago

Junior 80 B (Mod) – 24617

Hawa Sliding Solutions AG Variant:
Third party certifications:
  • EPD

    EPD

    Certificate type

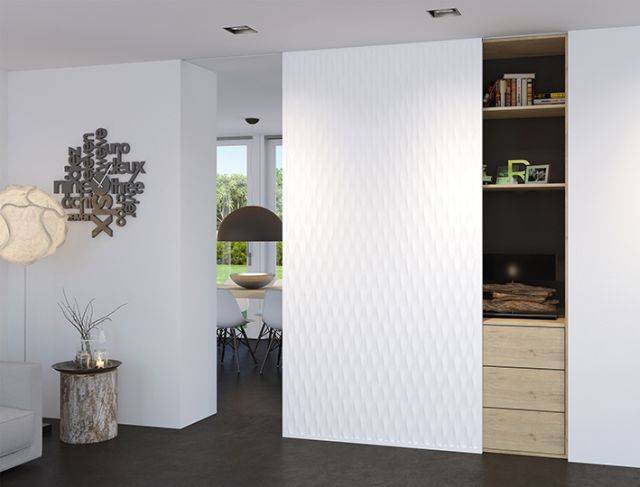

Sliding hardware with a locking mechanism for easy installation, for use with single wooden doors with a panel weight up to 80 kg.

Jump to:
+41 44 787 17 17 Website

Application

For use in low headroom applications and by people of all abilities, including in the following locations:

  • Retirement homes.
  • Care homes.
  • Shopping centres.
  • Railway stations.
  • Schools.
  • Public buildings.
  • Family homes and apartment complexes.
  • Hotels.

Description

Sliding hardware with a locking mechanism for easy installation, for use with single wooden doors with a panel weight up to 80 kg.


Features and benefits:

  • Suitable for use in low headroom applications; with a small 1 mm gap between the running track and sliding door.
  • Helps to optimize room space.
  • Height adjustment is easily made from the leading edge, without the need for extracting the suspension unit.
  • The suspension trolley is provided already fitted with hanger bolt, assembly wedge and integrated multifunctional cover cap with locking mechanism, and is simply clicked into place as a complete unit in the suspension profile.
  • Screws are provided both for fixing and for adjusting the retention force to suit the weight of the door.
  • Smooth, quiet operation.
  • Accommodates large structural tolerances; vertically adjustable (±7 mm), including ±3 mm coarse adjustment and ±4 mm fine adjustment.


Components:

Quantities of each component will vary dependent on variant specified (consult manufacturer for details).

  • Two-wheeled trolley M10, with plastic wheels.
  • Top fixed suspension with plate and hanger bolt M10 (24617 only) and 20 mm longer than standard bolt for 24851 only – allows the running track to be covered from below with removable ceiling elements.
  • Track stop with adjustable retaining force.
  • Screw-on rubber door stop.
  • Rattle proof guide for screw mounting to floor with groove width 10 mm, black plastic.
  • For two-panel sliding doors.
  • Order two sets for single doors.
  • Consult manufacturer for further details.

General information

Color

Grey

Finish

Anodized

Brushed

Guidance for specification option:

Brushed stainless steel finish.

Material

Aluminium

Shape

Rectangle

Warranty description

Two year

Uniclass

Pr_30_36_36_23 Door track and running gearPrimary

CAWS

P21/10 Door track and running gear

P21/350 Door track and running gear

Product range

Wood Sliding Doors

Specification data - Door track and running gear

Standard

To EN 1527.

Third-party certification

TÜV Rheinland LGA Products GmbH, Nürnberg, Germany.

Classification grades (minimum)

-

Durability

6.

Door mass

2.

Initial friction

3.

Form

Aluminium, plain anodized, pre-drilled, top hung running track.

Aluminium, stainless steel (brushed) effect, pre-drilled, top hung running track.

Running track

1400 mm.

Guidance for specification option:

Plain anodized only.

1600 mm.

Guidance for specification option:

Plain anodized only.

1800 mm.

Guidance for specification option:

Plain anodized only.

2000 mm.

Guidance for specification option:

Plain anodized only.

2200 mm.

Guidance for specification option:

Plain anodized only.

Show more

Closing mechanism

Not required.

SoftMove 80.

Accessories/ Other requirements

Not required.

Bottom door stop.

Guidance for specification option:

Available with dull chromium or stainless steel finish; insert requirement.

Cover cap for running track.

Guidance for specification option:

Available with dull chromium or stainless steel finish; insert requirement.

Guide profile.

Guidance for specification option:

Black plastic, groove mounted (1300 mm length).

Hawa Adapto 80.

Guidance for specification option:

  • Fitting set which allows Hawa Junior 80 running tracks to be embedded into concrete ceilings.
  • Length is dependent on the specified length of the running track.

Manufacturer guidance

Spares are also available, consult manufacturer for details.

Components

Standard hanger bolt.

Sustainability data

Contains Red List materials

No

Country of material origin

Switzerland

Country of product manufacture

Switzerland

Recyclability

Yes

Third party certifications

BIM objects

Platform Compatible Version
Revit
-

1

IFC
-

1

Third party certifications

EPD

EPD

Hawa EPD Sliding door gear EN

Literature

CAT_EN_Hawa_Junior_80_B

CAT_EN_Hawa_Junior_80_B
