Junior 80 Z Telescopic (Sliding Door Hardware)

Verified by manufacturer 3 months ago

Telescopic 40/4 (20658)

Hawa Sliding Solutions AG Variant:
Third party certifications:
  • EPD

    EPD

    Certificate type

Telescopic sliding hardware for use with two, three or four wooden doors.

Jump to:
+41 44 787 17 17 Website

Application

Telescopic sliding hardware for use with two, three or four wooden doors.

Description

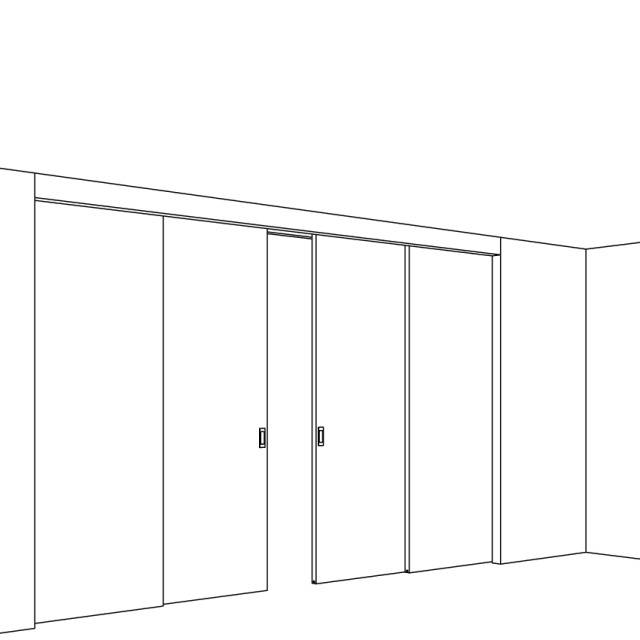

Enables the telescopic opening of 2–3 doors (80 kg door weight), or the symmetrical opening of four doors (40 kg door weight) simultaneously to the right or left.


Features and benefits:

  • Enables the telescopic opening of 2–3 doors, or the symmetrical opening of four doors simultaneously to the right or left.
  • Creates large openings.
  • The fibreglass reinforced toothed belts guarantee high tensile strength and a low level of expansion.


Components:

Components and quantities will vary dependent on variant specified, consult manufacturer for details.

  • Driver (wide).
  • Guide pulley wheel with fixing plate (long).
  • Guide pulley wheel with fixing plate (short).
  • Toothed belt fixing device for ceiling or wall mounting (complete).
  • Toothed belt (black), fibreglass reinforced.
  • Driver counter-plate (wide).
  • Hawa Confort 120 single floor mounted guide (rattle proof).
  • Guide plate with rattle proof guide piece (14 mm).
  • Driver (narrow).
  • Guide pulley wheel matching with running track Hawa Junior 80.
  • Toothed belt lock for manual systems.
  • Laterally adjustable driver for manual systems.
  • Hawa Junior 80 Z is required in addition, consult manufacturer for details.

General information

Color

Grey

Finish

Anodized

Material

Aluminium

Shape

Rectangle

Warranty description

Two year

Uniclass

Pr_30_36_36_23 Door track and running gearPrimary

CAWS

P21/350 Door track and running gear

P21/10 Door track and running gear

Specification data - Door track and running gear

Standard

To EN 1527.

Third-party certification

TÜV Rheinland LGA Products GmbH, Nürnberg, Germany.

Classification grades (minimum)

-

Durability

6.

Door mass

1.

Initial friction

3.

Form

Aluminium, plain anodized, pre-drilled, bi-parting running track.

Guidance for specification option:

Hole positions vary, consult manufacturer for details.

Running track

1400 mm.

1600 mm.

1800 mm.

2000 mm.

2200 mm.

Show more

Accessories/ Other requirements

Not required.

Bottom door stop.

Guidance for specification option:

Available with dull chromium or stainless steel finish; insert requirement.

Bottom guide channel.

Guidance for specification option:

  • Aluminium, plain anodized.
  • Pre-drilled, 20 x 20 x 3 mm.
  • Available 6000 mm long or cut-to-size.

Guide profile.

Guidance for specification option:

  • Black, plastic.
  • Groove mounted.
  • 1300 mm length.

Maximum weight

40 kg.

Door width

500–800 mm.

Door thickness

40–47 mm.

NumberOfPanels

Four panel doors.

Sustainability data

Contains Red List materials

No

Country of material origin

Switzerland

Country of product manufacture

Switzerland

Recyclability

Yes

Third party certifications

BIM objects

Platform Compatible Version
Revit
-

1

IFC
-

1

Third party certifications

EPD

EPD

Hawa EPD Sliding door gear EN

Literature

CAT_EN_Hawa_Junior_80_Z_Telescopic

CAT_EN_Hawa_Junior_80_Z_Telescopic
