K Systems P, Phenolic External Wall Insulation (EWI) system
Verified by manufacturer 4 months ago
BBA Agrément Certificate
Certificate type
ISO 9001 Quality Management
Certificate type
NSAI Agrément Certificate
Certificate type

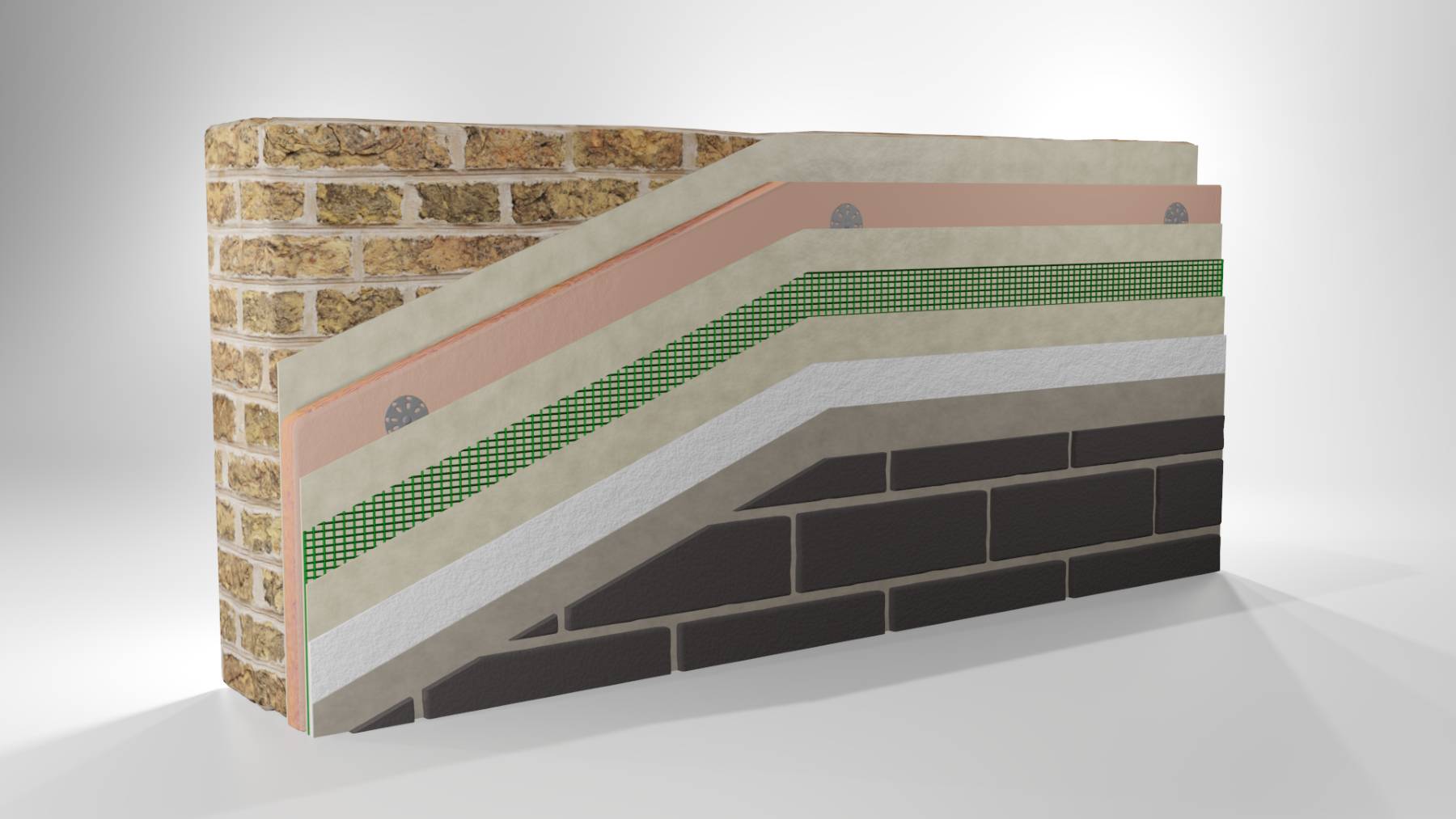

Phenolic EWI system with a range of render finishes, for masonry and concrete substrates
Application
The system is suited for the upgrade of existing buildings (refurbishment) and for new buildings, particularly where high levels of thermal performance are required. The System is suitable for a range of masonry substrates.
Description
The K Systems P external wall insulation system is a high-performance, light-weight system based on highly thermally efficient phenolic insulating panels that offer thinner insulation thicknesses than the majority of other insulants.
A range of finishes are available, including Silicone TC thin coat render, Dash render and Acrylic TC thin coat render.
Features and benefits:
- High performance, light-weight insulation EWI system with thinner insulation possible compared to other insulants.
- Range of finishes available, including thin coat and dash renders.
- BBA Certificate: 18/5570 PS3, PS4, PS7.
- NSAI Certificate: 18/0399 (Dash and TC render finishes)
- 30 year or 60 year service life system design.
General information
Color | Manufacturer guidanceK Systems standard colour range (other colours are available on request, according to NCS colour range) |
Finish | Dry dash Textured |
Material | Render Phenolic foam Manufacturer guidanceRender |
Shape | Other |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Manufacturer guidanceProduct and system warranties available |
Uniclass | |
CAWS | M21/20 External wall insulation system . . . . . . M21/210 External wall insulation system |
Specification data - External wall insulation systems
Insulation | |
Material | Phenolic. |
Adhesive | K Systems HP14 .Guidance for specification option: (40% minimum coverage) |
Additional mechanical fixings | Ejotherm NT U and STR U.Guidance for specification option: (other fixings may be used. 60 year service life design requires fixing through the mesh) |
Render carrier or reinforcement | |
Material | Alkali resistant reinforcement mesh, embedded into basecoat. |
Render | |
Material | Acrylic TC thin coat render.K Systems Silicone TC thin coat render.K Systems Standard Dash receiver. |
Decorative finish | Dry Dash Aggregate. |
Colour | Manufacturer guidanceK Systems standard 20 colour range (other colours are available on request, according to NCS colour range). Consult manufacturer and insert requirements. |
System accessories | K Pro clear hydrophobic coating.K Systems expansion beads and trims.Movement joint.Sealant tape.Sealant. |
Fire performance | B-s1,d0 (dash), B-s1,d0 (Thin coat). |
Basecoat | K Systems HP14. |
Primer | Primer TC (for use with TC finishes). None. |
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Render Phenolic foam Manufacturer guidanceRender |
Expected Life | 30 year |
Third party certifications
BBA Agrément Certificate
K Systems P Acrylic, Phenolic with Acrylic TC thincoat render External Wall Insulation (EWI) system
BBA Agrément Certificate
K Systems P Dash, Phenolic with Dash Render External Wall Insulation (EWI) System
BBA Agrément Certificate
K Systems P Silicone, Phenolic with Silicone TC thincoat External Wall Insulation (EWI) system
ISO 9001 Quality Management
ISO 9001
NSAI Agrément Certificate
K Systems External Wall Insulation (EWI) Systems NSAI certificate for masonry walls
Literature
K Systems Brochure
Case studies

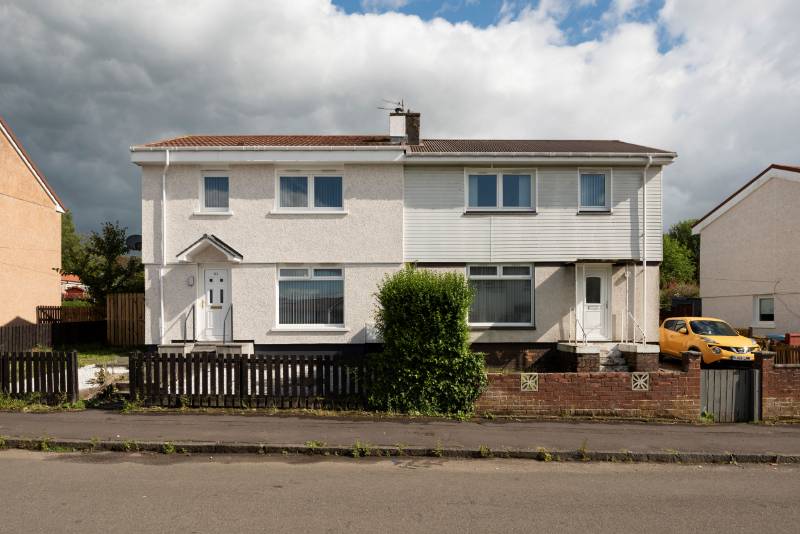

BISF Housing, Motherwell
