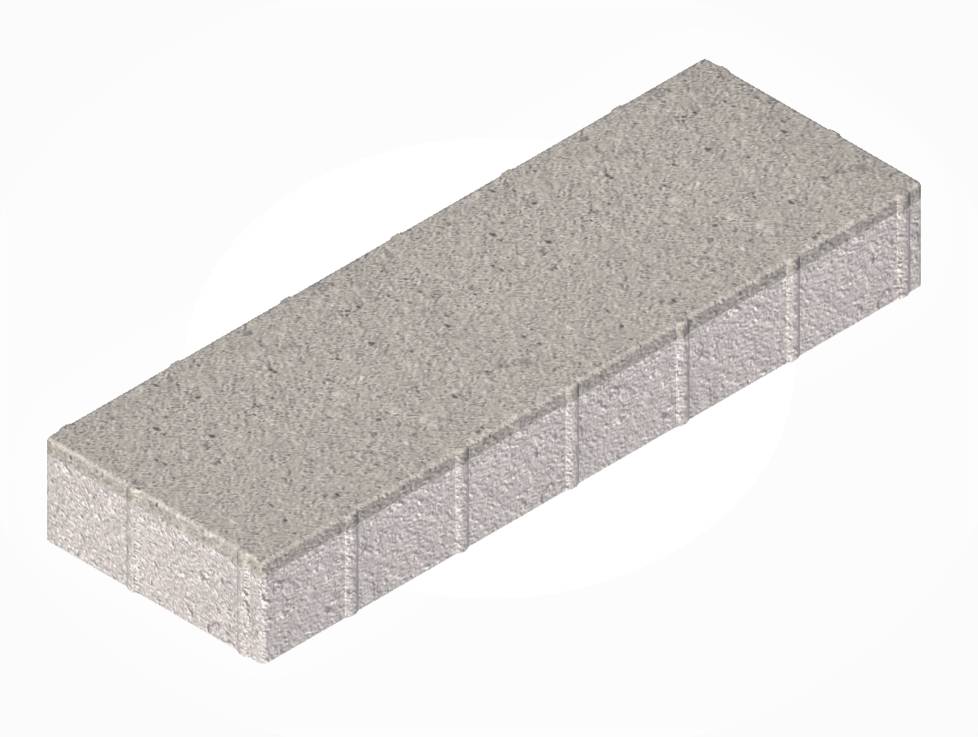

Lugano 600 x 200 x 80 mm Paving (Cliffe)
Verified by manufacturer 4 months ago
Precast concrete paving flags.
Application
Domestic and commercial use; hardstanding for light vehicular and pedestrian pavements including footpaths, cycle tracks, driveways, commercial pavements, roof top and balcony applications.
Description
Precast concrete paving flags to BS EN 1339: 2003.
Features and benefits:
- Manufacturing process: Semi dry pressed and vibrated concrete.
- Incorporates 80 mm Lugano.
- Textured finish.
- Colour graphite grey, misty grey.
- BREEAM - Concrete Block Paving. CBP 80 mm: B rating, as per the BRE Green Guide, 4th Edition 2009, A rating can be achieved when used in conjunction with a prepared recycled sub-base.
General information
Color | Grey Guidance for specification option: Graphite Grey or Misty Grey. |
Finish | Textured |
Material | Concrete |
Shape | Rectangle |
Length | 600 mm |
Width | 200 mm |
Height | 80 mm |
Uniclass | |
CAWS | Q24/112 Conventional concrete block paving with bound base Q24/113 Conventional concrete block paving overlay Q24/110 Conventional concrete block paving Q24/10 Conventional concrete block paving |
Specification data - Concrete paving blocks
Standard | To BS EN 1339. |
Physical properties | |
Colour | Misty grey.Graphite grey. |
Finish | Textured. |
Profile | |
Paver type | Regular plan form. |
Dimensions and associated tolerances | |
Nominal sizes | 600 x 200 x 80 mm. |
Abrasion resistance | Class 3.Guidance for specification option: ≤23 mm - Determined by Wide Wheel Abrasion Test. |
Slip resistance | USRV to BS EN 1339 ≥55.Guidance for specification option: Potential for slip - Low. |
BendingStrength | ≥5.0 Mpa. Manufacturer guidanceCharacteristic bending strength. |
Load | ≥4.5 KN. Manufacturer guidanceCharacteristic breaking load. |
Durability | Class 3 (≤1.0 kg/m²). Guidance for specification option: With no individual result ≤1.5 kg/m². |
Reaction to fire | Class A1. Guidance for specification option:
|
ThermalConductivity | 1.2 W/(mK). |
Unit weight | 23.71 kg. |
Tolerances | Thickness ± 3 mm; plan size ± 2 mm. |
Standards | To BS 7533-101: 2021 (design); to BS 7533-3: 2005 + A1: 2009 (installation). |

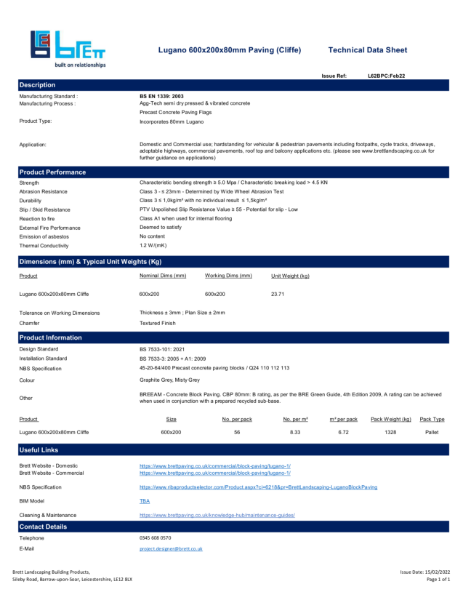

Literature
Lugano 600 x 200 x 80 mm Paving (Cliffe)
