Lugano Block Paving

Name: Lugano Block Paving
Brand: Brett Landscaping
SKU: pwnHfbea7cguYjYtTnhtnc

Verified by manufacturer 5 months ago

80 mm Single size packs

Brett Lugano is a distinctive, granite-aggregate, textured, concrete block paving unit. Available in three sizes and two colours.

Jump to:

+44 (0)345 60 80 570 Website

Application

Domestic and commercial use: hardstanding for vehicular and pedestrian pavements including footpaths, cycle tracks, driveways, adoptable highways, commercial pavements, roof top and balcony applications.

Description

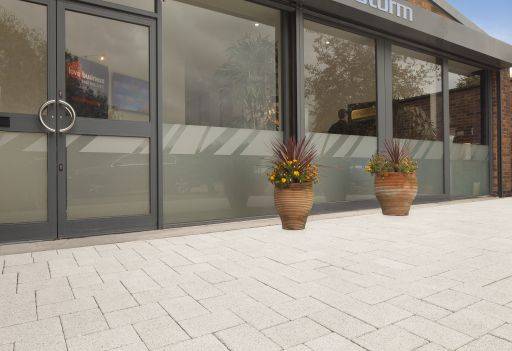

Lugano is a distinctive range of silver grey granite aggregate block paving with a textured finish to recreate the look of granite setts. The durable, textured surface of Lugano block paving provides a high level of slip resistance making it ideal for many applications where the overall look of granite paving is required whilst the square edge detail without a chamfer provides a flat surface for users.

Standards:

Brett Landscaping operate a number of independently audited management systems:

BS EN ISO 9001: 2008 Quality Management System.
BS EN ISO 14001: 2004 Environmental Management System.
OHSAS 18001: 2007 Health and Safety Management System.
BES 6001 Responsible Sourcing of Construction Products.

General information

Color	Grey
Finish	Textured
Material	Concrete Guidance for specification option: Precast (semi-dry-pressed and vibrated).
Shape	Rectangle
Length	105 mm 140 mm 210 mm
Width	140 mm
Height	60 mm 80 mm

Uniclass	Pr_25_93_60_17 Concrete paving blocksPrimary
CAWS	Q24/10 Conventional concrete block paving Q24/110 Conventional concrete block paving Q24/112 Conventional concrete block paving with bound base Q24/113 Conventional concrete block paving overlay

Product range	Lugano

Specification data - Concrete paving blocks

Standard	To BS EN 1338: 2003.
Physical properties	-
Colour	Misty Grey. Graphite Grey.
Finish	Textured surface with square edge detail.
Profile	-
Paver type	Regular plan form.
Arrises	Chamfered.
Interlocking features	Nibs.
Dimensions and associated tolerances	-
Nominal sizes	105 x 140 x 80 mm. 140 x 140 x 80 mm. 210 x 140 x 80 mm.
Arrises	Chamfered, Textured.
Weathering resistance	Class 3.
Abrasion resistance	Class 3. Guidance for specification option: <23 mm.
Slip resistance	Unpolished Slip Resistance Value (USRV): ≥55; Potential for slip: Low.

Type	Hand lay.
Accessories	Lugano Kerb.
Third-party certification	CE marked.
Strength	Characteristic tensile splitting strength: ≥3.6 MPa; Failing load: ≥250 N/mm.
Tolerances on plan dimension and thickness (nominal)	Thickness: ±3 mm; Plan size: ±2 mm.
