Manhattan | Concrete Block Paving

Verified by manufacturer 3 months ago

Concrete Flag Paving

Tobermore Variant:
Third party certifications:
  • EPD

    EPD

    Certificate type

Concrete block paving.

Jump to:
BOS
 +44 (0)844 800 5736 Website

Application

Suitable for:

  • Pedestrian areas and areas with occasional vehicular traffic.
  • Paved areas in both residential and commercial developments.

Description

Linear block paving with a hard-wearing surface and a contemporary, minimalist appearance, available in a range of four colours.


Features and benefits:

  • Manufactured with sparkling granite aggregates.

General information

Color

Grey

Guidance for specification option:

Mid grey.

Silver

Other

Guidance for specification option:

  • Graphite.
  • Sandstone.

Finish

-

Manufacturer guidance

Granite Aggregate

Material

Concrete

Guidance for specification option:

Precast concrete.

Shape

Rectangle

Length

250 mm

300 mm

400 mm

500 mm

600 mm

Width

122 mm

125 mm

150 mm

164 mm

Height

80 mm

140 mm

Uniclass

Pr_25_93_60_17 Concrete paving blocksPrimary
Pr_25_93_60_16 Concrete flags

CAWS

Q24/113 Conventional concrete block paving overlay

Q24/110 Conventional concrete block paving

Q24/112 Conventional concrete block paving with bound base

Q24/10 Conventional concrete block paving

Product range

Tobermore Paving Blocks I Concrete Pavers

Specification data - Concrete paving blocks

Standard

To BS EN 1339.

Manufacturer guidance

Installed to BS 7533-3.

Physical properties

-

Colour

Graphite.

Mid Grey.

Sandstone.

Silver.

Finish

Textured granite aggregate.

Profile

-

Paver type

Regular plan form.

Arrises

Chamfered.

Dimensions and associated tolerances

-

Nominal sizes

500 x 125 x 140 mm.

600 x 150 x 80 mm.

Mixed Size Pack.

Guidance for specification option:

Includes:

  • 250 x 122 x 80 mm.
  • 300 x 122 x 80 mm.
  • 300 x 164 x 80 mm.
  • 400 x 122 x 80 mm.
  • 400 x 164 x 80 mm.
  • 500 x 122 x 80 mm.
  • 500 x 164 x 80 mm.

Tolerances on diagonals

To BS EN 1338.

Weathering resistance

Class 3.

Abrasion resistance

Class 3.

Slip resistance

Mean polished skid resistance value (PSRV): >45.
Mean unpolished skid resistance value (USRV): >45.

Recycled content (minimum)

Not less than 6%.

Strength

>5 MPa.

Manufacturer guidance

Typical tensile splitting strength.

EnergyUsed

100% renewable energy.

WaterUsed

100% from rainwater harvesting system and groundwater bore hole.

BREEAM rating

In accordance with the Green Guide to Specification.

Surface finish

Not less than 53% of granite aggregate in surface layer (Silver, Mid Grey and Graphite).
Not less than 45% of granite aggregate in surface layer (Sandstone).

Sustainability data

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Concrete

Guidance for specification option:

Precast concrete.

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

-

Manufacturer guidance

  • 600 x 150 x 80mm & Mixed Length 80mm - 23.47kgCo2e/m2
  • 600 x 150 x 150mm - 50.83kgCo2e/m2


Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

-

Manufacturer guidance

Not less than 6%

Third party certifications

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
 -

1

IFC
 -

1

Third party certifications

EPD

EPD

Environmental Product Declaration (EPD)- Fusion 80mm, Hydropave Fusion, Manhattan 80mm

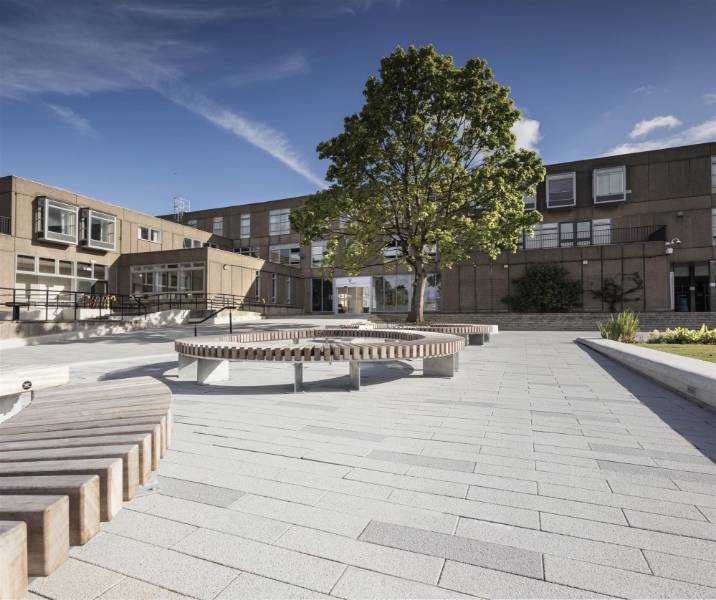

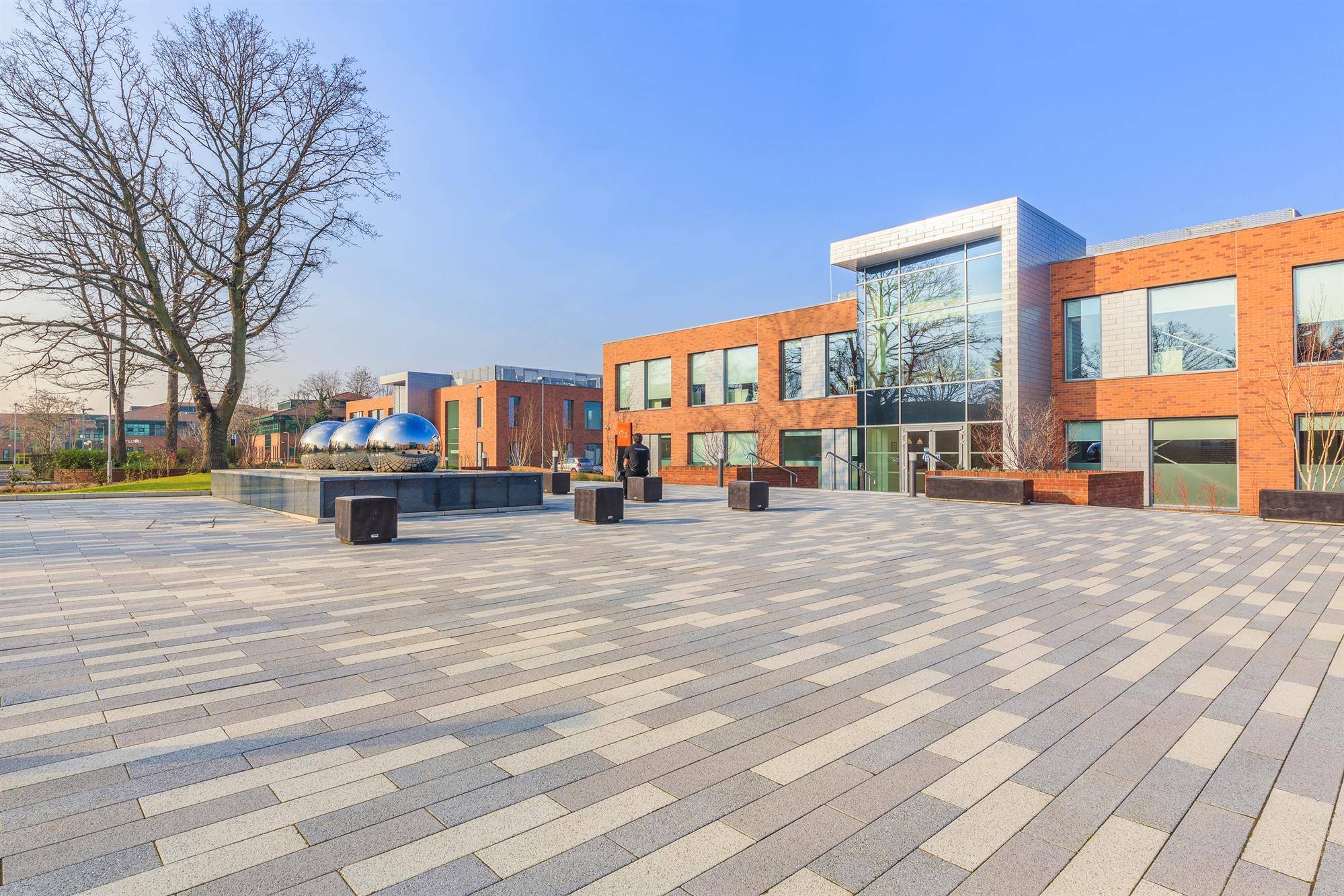

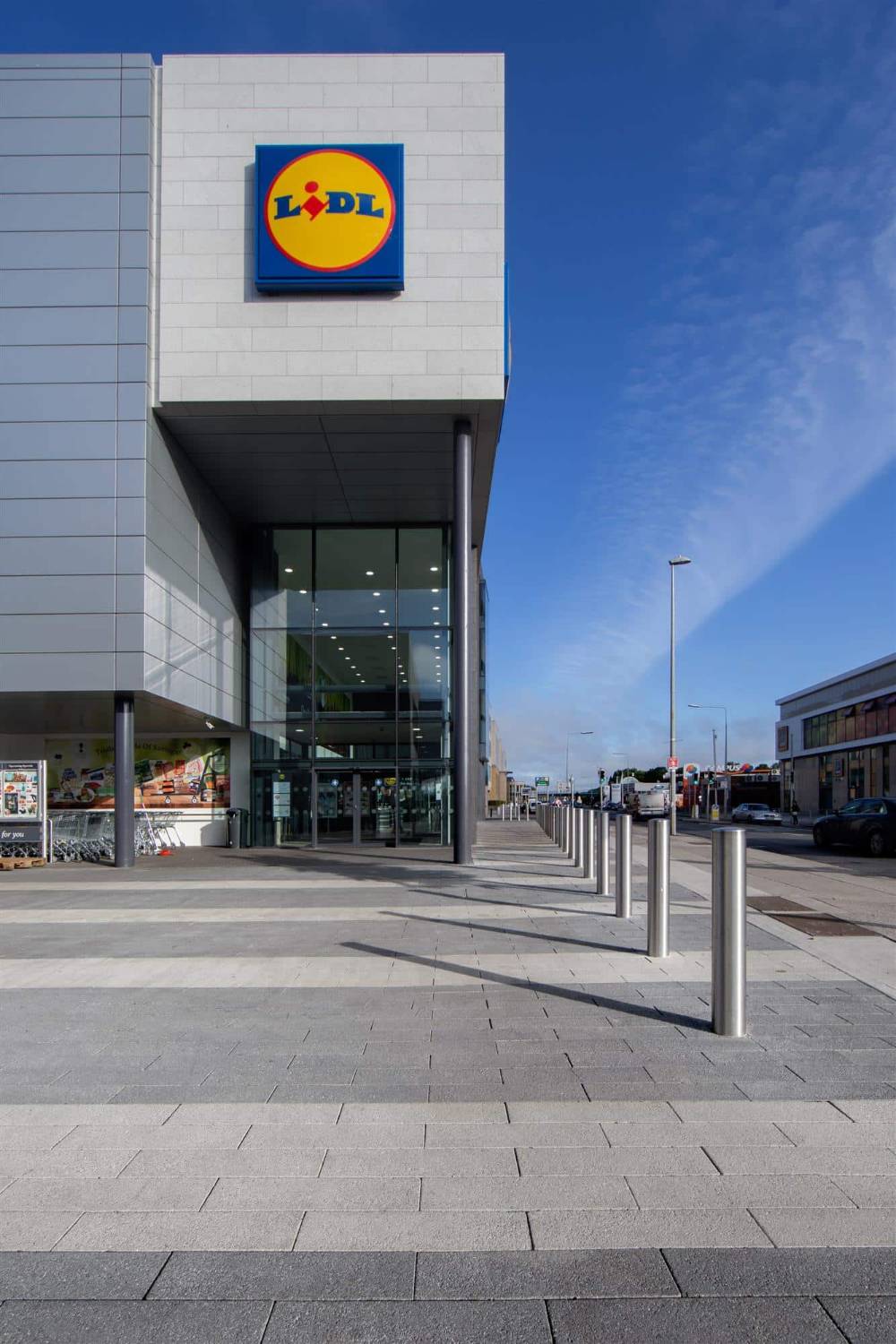

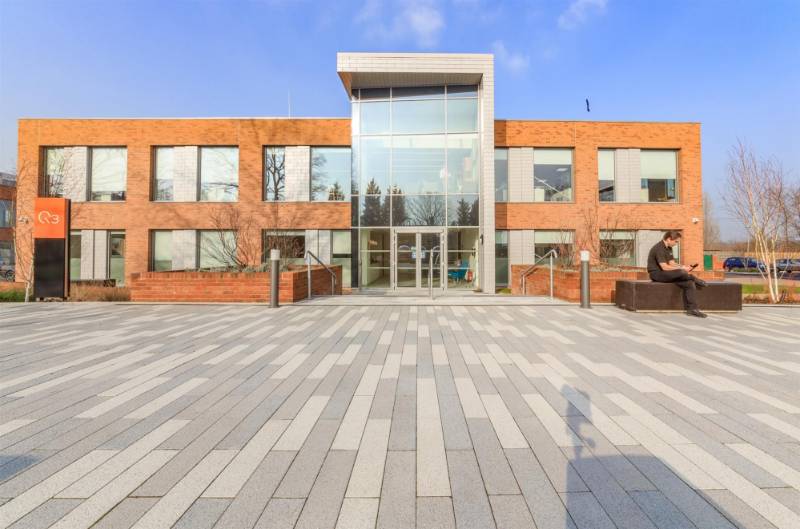

Case studies

Abbey Centre

Abbey Centre

Bausch + Lomb, Waterford

Bausch + Lomb, Waterford

Clancy Quay II

Clancy Quay II

Clancy Quay

Clancy Quay

Limerick Institute of Technology (LIT)

Limerick Institute of Technology (LIT)

Greg's Place, University of York

Greg's Place, University of York

The Square, Leatherhead

The Square, Leatherhead
