Mesh Perimeter Fence/ Vmex®/ V Mesh/ Paladin Style
Verified by manufacturer 16 hours ago
1200 mm high
1200 mm high
Perimeter mesh fence system.
Application
Suitable for:
- Commercial developments.
- New build housing.
- Hospitals.
- Industrial units.
- Schools, colleges and universities.
- Solar farms.
Description

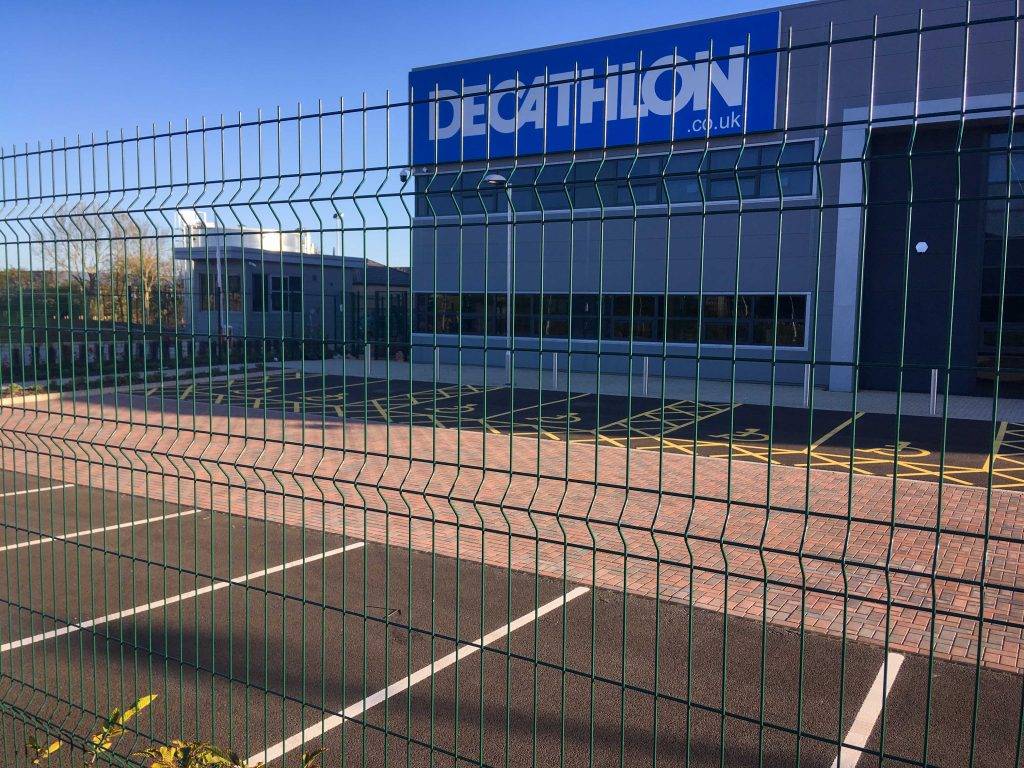

IAE Vmex® V3 is a perimeter mesh fence system designed to be unobtrusive whilst still offering a good level of security. The weld mesh panels with longitudinal profiles are manufactured from 5 mm (nominal) horizontal and 4 mm (nominal) vertical wires to give 200 x 50 mm maximum wire centre spacing.

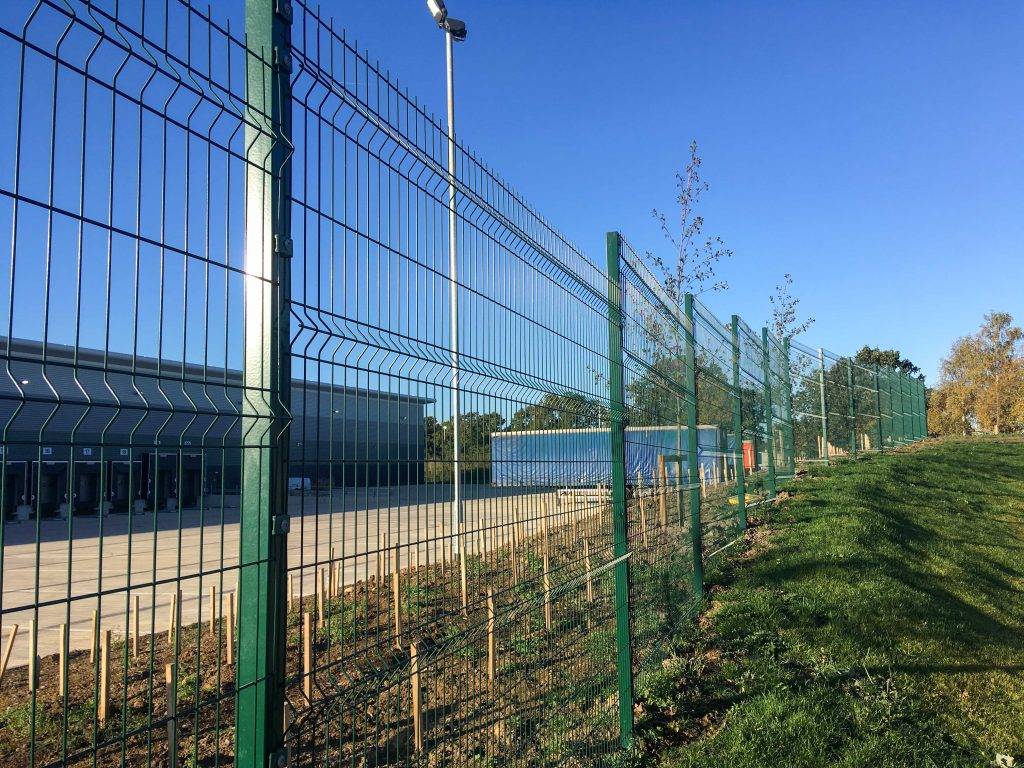

Available in a range of heights from 1200–3000 mm, Vmex® V3 is suitable for a number of perimeter applications. The panels are fixed to 60 x 60 mm square hollow section (SHS) posts with steel clips that include threaded inserts.
Features and benefits:
- Polyester powder-coated to a choice of colours.
- Security fixings included.
- Low to medium security level.
- Cost effective.
- Unobstructive design.
- Suitable for multiple applications.
- Laser cut and robotically welded using modern folding and bending machines.
General information
Color | Green Black Other Guidance for specification option: RAL colour. |
Finish | Powder-coated |
Material | Metal |
Shape | Rectangle |
Width | 2805 mm 3005 mm |
Height | 1200 mm 1800 mm 2000 mm 2400 mm 3000 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | Q40/28 Open mesh steel panel security fencing Q40/30 Proprietary fencing Q40/27 Open mesh steel panel general purpose fencing Q40/430 Proprietary fencing Q40/126 Open mesh steel panel security fencing Q40/125 Open mesh steel panel general purpose fencing |
Specification data - Metal mesh panel fencing systems
Standard | To BS 1722-14. |
Category | 1–2. |
Posts | 60 x 60 mm (SHS). |
Panels | Metal mesh panels. |
Fence topping | Flat. |
Site applied finishes | Polyester powder-coated.Guidance for specification option: Polyester powder-coated to a choice of RAL colours. Contact manufacturer for details. |
System accessories | Plastics post tops.Stepping holes.Clamping clip.M8 security screw.Not required. |
WireDiameter | 4 mm (vertical); 5 mm (horizontal). |
Aperture size | 180/ 160 x 50mm. |
Post centres | 3030 mm. |
Dimensions | 1200 x 3005 mm. Manufacturer guidanceH x W. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Turkey |
Country of product manufacture | United Kingdom |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 0.16 kg CO₂ eq/unit Self declared |
Recyclability | 100 |
