Verified by manufacturer 2 months ago
Warringtonfire
Certificate type

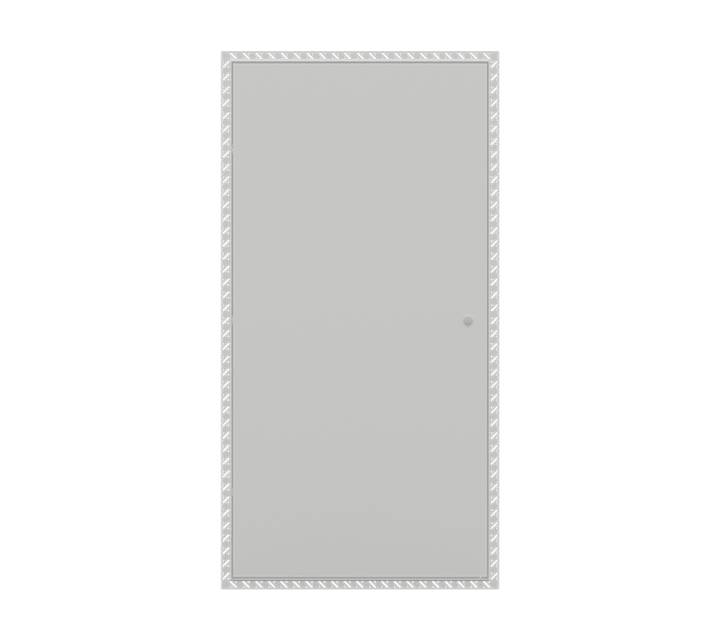

Metal Riser Door, 2 Hour Bi-directional Fire Tested, Beaded Frame, 3 Point Locking System, Smoke Tested
Suitable for use in jointless plasterboard wall systems.

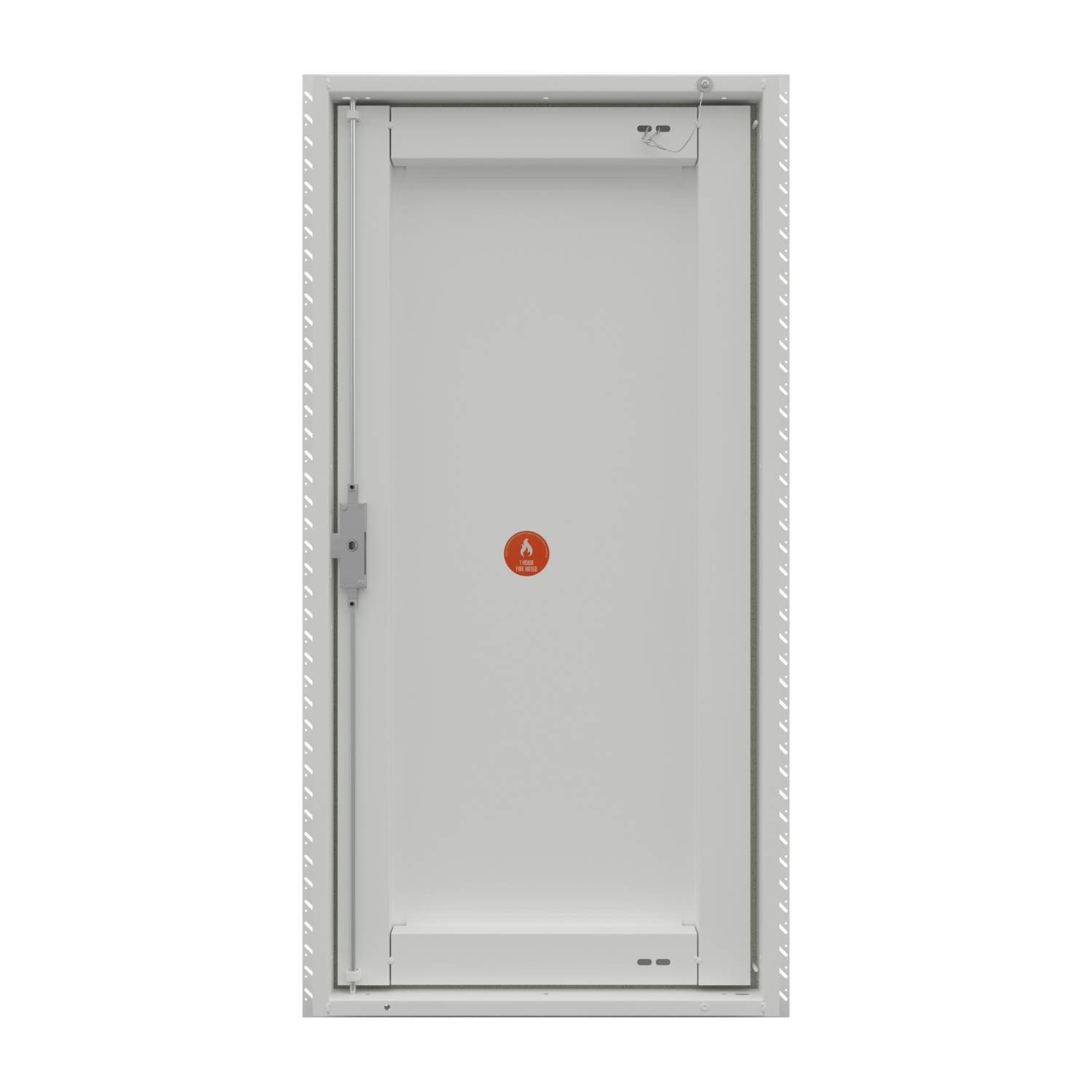

This panel is designed to fit into a structural membrane of a jointless plasterboard wall system. It is manufactured with a beaded frame for tape and jointing or skim-coat plastering. The metal door leaf is locked in place via a three-point locking system with other lock options available upon request. The panel is powder-coated RAL 9010 30% gloss. Other colours available upon request.
Features and benefits:
Color | White |
Finish | Powder-coated |
Material | Steel |
Shape | Square Rectangle |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year |
Uniclass | |
CAWS | L20/630 Hatches K10/430 Access panels |
Fire performance | |
Fire resistance | 120 minutes integrity to BS EN 1634-1:2014+A1:2018.Guidance for specification option: Up to 2400 x 900 mm. |
Position | Wall-mounted. |
Size | Manufacturer guidance
|
Frame | Bead for taping and jointing or skim coat plastering. |
Panel | |
Material | Steel. |
Integral finish | Powder-coated. |
Latch or lock type | Low level security 3 way lock.Medium level security IP65 - key retaining tamper proof lock.High level security 3 way Euro profile cylinder lock. |
Integral accessories | Intumescent, draught and smoke sealing strips to frame. |
Colour/ Finish | RAL 9010, 30% gloss. Other. Guidance for specification option: Other colours are available on request. Consult manufacturer and insert requirements. |
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
