Metal Riser Door (Range 57) - Beaded Frame - 90 Minutes Fire Rated - Smoke Tested - 33dB Acoustic - High Security
Verified by manufacturer 2 months ago
Metal Riser Door, Beaded Frame, 90 Minute Fire Rated & Smoke Tested, 33dB Acoustic Rated, 3 Point Euro Profile Locking System
Application
Suitable for use in jointless plasterboard wall systems.
Description
This panel is designed to fit into a structural membrane of a jointless plasterboard wall system. It is manufactured with a beaded frame for tape and jointing or skim coat plastering. The panel has a metal faced door backed with two layers of SoundBloc acoustic plasterboard. The door leaf is locked in place via a Euro profile three-point locking system with cylinder as standard. Other lock options available upon request. The panel is powder-coated RAL 9010 30% gloss. Other colours available upon request.
Features and benefits:
- The panel is 90 minute fire rated (up to 1900 x 650 mm in a wall application).
- Manufactured from Zintec steel with a 0.9 mm thick door and a 1.2 mm frame.
- The panel's door leaf is hinged by a fast fit hinge system which saves time on fitting compared to a full piano hinge.
- Fitted with draught, smoke, acoustic and intumescent seals.
- Acoustic rated up to 33 dB.
General information
Color | White |
Finish | Powder-coated |
Material | Steel Plasterboard |
Shape | Square Rectangle |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | L20/630 Hatches K10/430 Access panels |
Product range |
Specification data - Access panels
Fire performance | |
Fire resistance | 90 minutes integrity to BS EN 1634-1:2014.Guidance for specification option: Up to 1900 x 650 mm. |
Position | Wall-mounted. |
Size | Manufacturer guidanceThis product is manufactured in the UK and can be made to any bespoke size between 400 x 400 mm (minimum) and 1900 x 650 mm (maximum). The average lead time is 3–5 working days. Insert requirements. |
Frame | Bead for taping and jointing or skim coat plastering. |
Panel | |
Material | Steel. |
Integral finish | Powder-coated. |
Latch or lock type | Euro profile three-point locking system with cylinder.Other.Guidance for specification option: Other lock options are available on request. Consult manufacturer and insert requirements. |
Operation | Concealed hinges, outward opening. |
Integral accessories | Draught, smoke, acoustic and intumescent sealing strips to frame.Guidance for specification option: This panel is smoke tested in accordance with BS EN 1634-3:2004. |
Colour/ Finish | RAL 9010, 30% gloss. Other. Guidance for specification option: Other colours are available on request. Consult manufacturer and insert requirements. |
Sound insulation | To BS EN ISO 10140-2:2010, 33 dB. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | - | 1 |
Literature

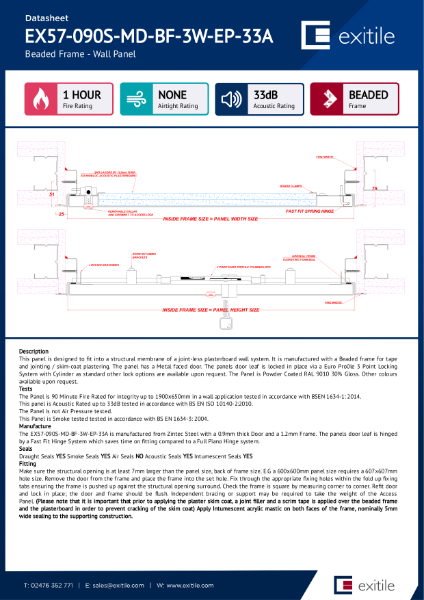

Datasheet - Riser Door (Range 57) - Beaded Frame - 90 Minutes Fire Rated - Smoke Tested - 33dB Acoustic - High Security

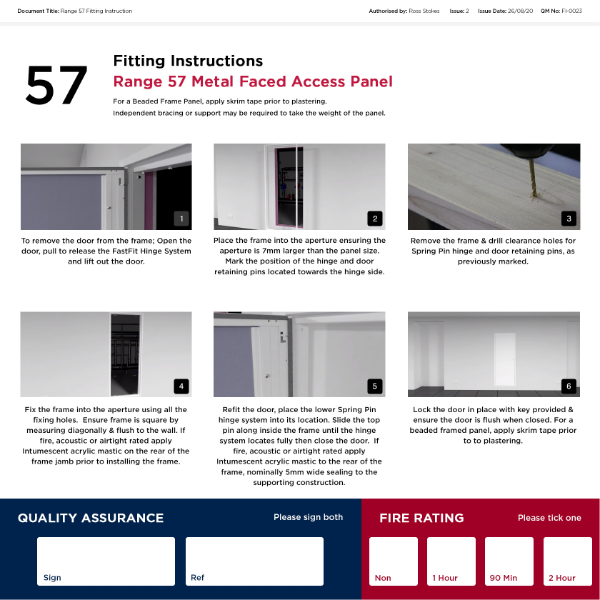

Fitting Instructions - EX57 Riser Door Range

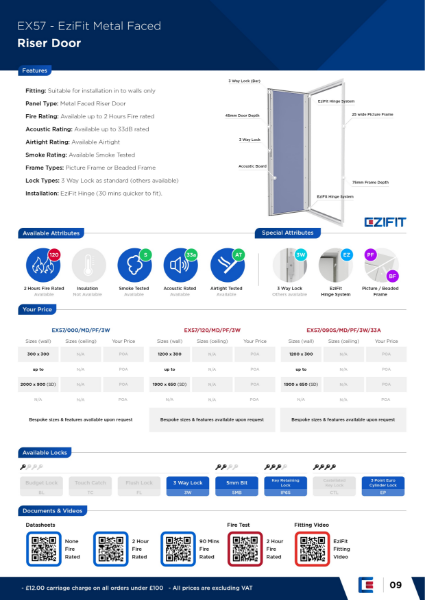

Product Page - EX57 Riser Door Range
