Novia STRP ProMax Air & Vapour Control Layer - Air And Vapour Control Layer

Name: Novia STRP ProMax Air & Vapour Control Layer - Air And Vapour Control Layer
Brand: Novia Ltd
SKU: teWqKU4WwKVcoaXPaVDNyu

Verified by manufacturer 4 days ago

Novia Ltd

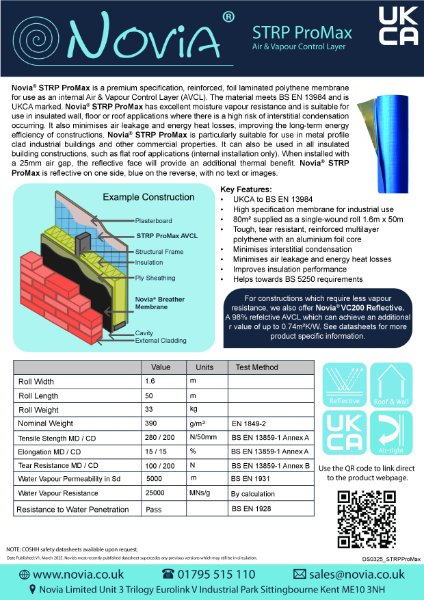

STRP ProMax is a premium specification, reinforced, foil laminated polythene membrane for use as an internal Air & Vapour Control Layer (AVCL).

Jump to:

01795 515 110 Website

Application

Suitable for use in insulated wall, roof and floor applications, where there is a high risk of interstitial condensation occurring.
Particularly suitable for use in metal profile clad industrial buildings, and other commercial properties.
It can also be used in all insulated building constructions, such as flat roof applications ( internal installation only )

Description

A premium specification reinforced and foil laminated polythene membrane for use as an internal Air & Vapour Control layer (AVCL). Has excellent moisture vapour resistance and is suitable for use in insulated walls, floor or roof applications where there is a high risk of interstitial condensation occurring.

Features and benefits:

UKCA to BS EN 13984
High specification membrane for industrial use.
Tough, tear-resistant reinforced multilayer polythene laminate with an aluminium foil core.
80m2 supplied as a single-wound roll 1.6m x 50m.
Minimises air leakage and energy heat losses.
Helps towards BS 5250 requirements.
Minimises interstitial condensation.
Can assist insulation performance.

Tape:

For professional installation, all Novia® VCL products should be fully sealed to the structure using a Novia® double-sided butyl tape and one of the foil or 'BOPP' overlap tapes.
To achieve the best results, Novia® recommends 30mm wide butyl tape and 60mm metallised 'BOPP' overlap tape for all standard VCL installations.

General information

Color	Blue Manufacturer guidance Foil backed.
Material	Polythene Guidance for specification option: Foil laminated polythene.
Shape	Other
Length	50000 mm Manufacturer guidance Roll length.
Width	1600 mm
Warranty description	Lifetime

Uniclass	Pr_25_57_65_60 Plastics sheetsPrimary
CAWS	H20/150 Sheet cladding (attached to metal support systems) H30/261 Air and vapour control membrane H30/30 Air and vapour control membrane H31/261 Air and vapour control membrane H31/45 Air and vapour control membrane H92/780 Air and vapour control layer J21/395 Air and vapour control layer J31/330 Air and vapour control layer J41/395 Air and vapour control layer J42/395 Air and vapour control layer K10/155 Wall lining system (metal studs) K11/115 Battened plywood floating floor K11/125 Battened particleboard floating floor K11/135 Battened oriented strand board floating floor K11/145 Battened cement-bonded particleboard floating floor K11/215 Plywood floating floor K11/225 Particleboard floating floor K11/235 Oriented strand board floating floor K11/245 Cement bonded particleboard floating floor K11/795 Wall lining on metal framing K21/110 Wood flooring K21/111 Wood floating floor K21/115 Wood laminate flooring K21/120 Battened wood flooring K21/130 Battened wood floating floor K21/140 Battened wood laminate flooring K21/145 Composite laminate flooring K21/146 Laminate flooring P10/310 Air and vapour control layer P10/60 Air and vapour control layer

Product range	Vapour Control Layers

Specification data - Plastics sheets

Purpose	Foil laminated polythene vapour control membrane.
Standard	EN 13984.
Performance characteristics	-
Tensile strength (minimum)	MD/ CD: 345/250 N/50 mm.
Tear resistance	MD/ CD: 130/240 N.
Elongation to break	MD/ CD: 25/20%.
Resistant to underground gases	None.
Water vapour resistance (minimum)	25 000 MNs/g.
UV stabilization	N/A.
Anti-static properties	N/A.
Physical properties	-
Weight (minimum)	390 g/m².
Dimensions	-
Thickness (minimum)	0.4 mm.
Width (minimum)	1.6 m.
Roll length (minimum)	50 m.

Water vapour permeability	in sd: 5000 m.
Tape	Novia® metallized BOPP and Novia® double sided butyl tapes.

Sustainability data

Contains Red List materials	No
Material	Polythene Guidance for specification option: Foil laminated polythene.
Recyclability	0
Recycled content As defined in clause 7.8 of BS EN ISO 14021	0 %
Expected Life	Lifetime
