NOVOSPRINT® Mono Door - High Speed Door

Verified by manufacturer 4 months ago

Dortek Ltd

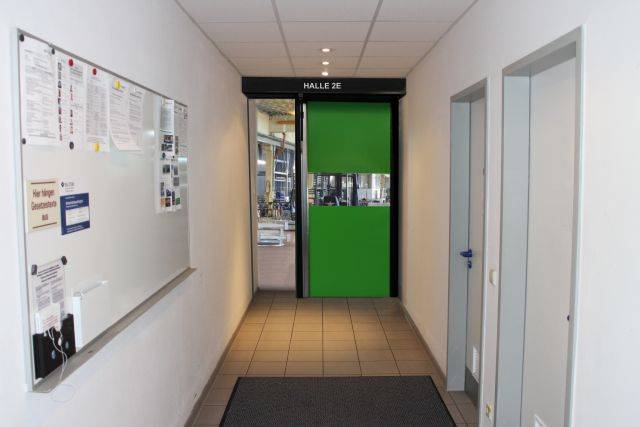

As a high-speed door opening to one side, NOVOSPRINT Mono was designed specifically for narrow passage openings.

Jump to:
+44 (0)1482 226848 Website

Application

Suitable for confined installation situations and highly frequented routes, e.g. in retail or in the healthcare sector.

Description

A high speed door range.


Features and benefits:

  • High speed door which offers a space and time-saving solution for unhindered, non-contact pedestrian traffic. Designed specifically for narrow passage openings with a door which opens to one side.
  • With a rebate profile depth of just 35 mm on the wall side, this installation variant makes almost the entire opening width available for use, and therefore offers many advantages compared to hinged, swing or sliding doors.
  • All door types can be combined with a large number of control and security options.
  • High-speed door opening to one side.
  • Minimum space requirement.
  • Fully automatic function for pedestrian traffic.
  • Width up to 2.5 m and height up to 3.5 m.
  • Can incorporate a closing edge which is monitored by an optoelectronical sensor integrated into the door leaves, with power supply via energy chain or trailing cable.
  • Designed for 350 000 operations annually.
  • Opening speed: 1.75 m/s per side (maximum).
  • Opening speed SPRINT (single skin only): 2.5 m/s (maximum).
  • Closing speed with light curtain: 1.25 m/s.
  • Closing speed: 0.75 m/s per side (maximum).
  • Operating forces/ safe opening according to EN 13241-1: Fulfilled.
  • Lintel height standard: 330 mm.
  • Lateral space required motor side/ non-motor side: 425/ 350 or 35/ 135 mm.
  • Total depth required: 420 mm.
  • Frame: Horizontal cross-beam, vertical jam and vertical profile sheet metal.
  • Emergency operation: With Bowden cable lever, self-opening.

General information

Color

White

Guidance for specification option:

Frame.

Yellow

Guidance for specification option:

Door panel.

Other

Guidance for specification option:

Insert requirement. Consult manufacturer.

Material

Steel

Guidance for specification option:

Frame.

Polyester

Guidance for specification option:

Door panel. PVC coated.

Shape

Square

Rectangle

Warranty description

One year

Guidance for specification option:

Manufacturing and installation defeats 12 months in line with Dortek warranty (details available on request). Guaranteed 500 000 openings of the door’s springs (first set of springs, max 24 months).

Uniclass

Pr_30_59_24_38 High-speed doorsetsPrimary

CAWS

L20/570 High-speed doors

Product range

Doors / High Speed Doors

Specification data - High-speed doorsets

Speed (minimum)

-

Opening

1.75 m/s.

Closing

1.25 m/s.

Curtain material

Manufacturer's standard.

Guidance for specification option:

Polyester fabric PVC coated on both sides similar to RAL 1003, with vision element at a height of 1480 to 2000 mm.

Special variant.

Guidance for specification option:

Special colour, vision panel, PVC-free, anti-static, food safe (comparable with FDA requirements), antistatic, hardly flammable (B1). Consult manufacturer for details.

Frame and guides

-

Material

Steel.

Finish and colour

White.

Stainless steel.

Sendzimir galvanized.

Special order.

Guidance for specification option:

Insert requirement.

Accessories

None.

Airlock.

Guidance for specification option:

Reduces waiting times, accelerates processes.

Anti-crash protection.

Combination.

Guidance for specification option:

Combined protection for highly frequented external doors (SPACELITE or SECTIOLITE doors).

Double skin.

Guidance for specification option:

A second skin for greater protection.

Escape route.

External light curtain.

External photo eye.

Ground closure.

Imprinting.

Laser sensor.

Optoelectronic safety light curtain.

Guidance for specification option:

Integrated in the door leaves, with power supply via energy chain or trailing cable.

Optoelectronical sensor.

Guidance for specification option:

integrated into the door leaves, with power supply via energy chain or trailing cable.

Photoelectric barrier.

Pulse transmitter.

Guidance for specification option:

  • Pulse transmitter, mushroom button.
  • Pulse transmitter, non-contact radar switch.
  • Pulse transmitter, pull switch.
  • Pulse transmitter, radio control.
  • Pulse transmitter, reflection light scanner.
  • Pulse transmitter, radar motion sensor.
  • Pulse transmitter, induction loop.

Radar sensor/ crash guard.

Skin designs.

Sprint.

Guidance for specification option:

Ultra-fast opening and closing.

Switches.

Transport rail.

Guidance for specification option:

In preparation for the unhindered flow of goods.

Manufacturer guidance

Not all options can be combined with each other. Consult manufacturer for details.

Dimensions

-

Manufacturer guidance

Insert requirements, maximum width/ height: 4500 x 4500 mm.

Others sizes are available, consult manufacturer for details.

Drive/ Control

Gear motor with double brake (with emergency release lever).

Guidance for specification option:

Manufacturer's standard. Closed when de-energized.

Gear motor with double brake (without emergency release lever).

Guidance for specification option:

Open when de-energized.

Manufacturer guidance

With BDC E800 F frequency converter control.

Sustainability data

Contains Red List materials

No

Country of product manufacture

Germany

Material

Steel

Guidance for specification option:

Frame.

Polyester

Guidance for specification option:

Door panel. PVC coated.

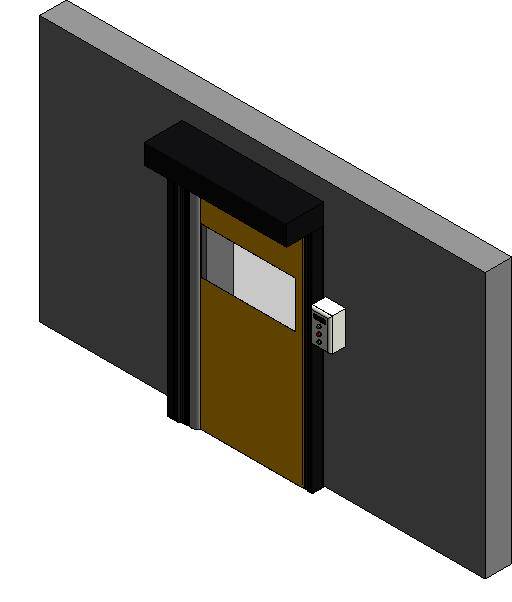

BIM objects

Platform Compatible Version
Revit
-

1
