NOVOSPRINT® SyncroXL - High Speed Door for Large Openings

Verified by manufacturer 1 month ago

Dortek Ltd

High speed door for large openings.

Jump to:
+44 (0)1482 226848 Website

Application

The NOVOSPRINT high-speed door reaches an opening speed of up to 2 m/s which is suitable for fast logistic processes, forklift traffic and air locks.


Suitable for the following applications:

  • Industrial
  • Logistics
  • Automotive
  • Retail
  • Food industries
  • Cold rooms
  • Pharmaceutical
  • Distribution centres


Description

High speed door for large openings.


Features and benefits:

  • High speed door which allows for the protection of high-frequency passage openings and minimizes the opening times.
  • All door types can be combined with a large number of control and security options.

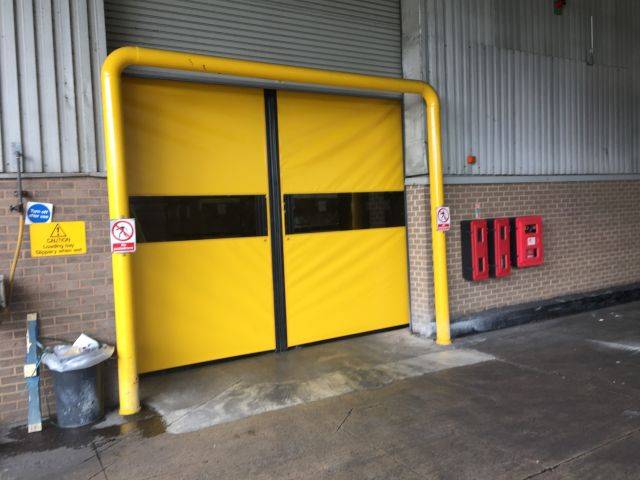

  • Double leaf, synchronised side-opening XL high-speed door.
  • Width up to 9 m and height up to 6 m.
  • Can incorporate a closing edge which is monitored by an optoelectronical sensor integrated into the door leaves, with power supply via energy chain or trailing cable.
  • Anti crash protection (unlatch mechanism in the stay bars, available for c/o height above 2800 mm).
  • Suitable for heavy goods vehicles and large rail vehicles, forklift traffic, entry airlocks.
  • Designed for 150 000 operations annually.
  • Opening speed: 2 m/s (maximum).
  • Closing speed: 1.5 m/s (maximum).
  • Operating forces/ safe opening according to EN 13241-1: Fulfilled.
  • Lintel height standard: 480 or 880 mm.
  • Lateral space required motor side/ non-motor side: 525/ 525 mm.
  • Total depth required: 650 or 690 mm.
  • Frame: Horizontal cross-beam, vertical jam and vertical profile sheet metal.
  • Emergency operation: With Bowden cable lever, self-opening.

General information

Color

Yellow

Finish

Smooth

Material

Polyester

Guidance for specification option:

PVC-coated fabric.

Shape

Rectangle

Square

Width

3800 mm

9000 mm

Manufacturer guidance

Minimum width, 3800 mm; maximum width 9000 mm.

Height

2100 mm

6000 mm

Manufacturer guidance

Minimum height, 2100 mm; maximum height, 6000 mm.

Uniclass

Pr_30_59_24_38 High-speed doorsetsPrimary

CAWS

L20/570 High-speed doors

Product range

Doors / High Speed Doors

Specification data - High-speed doorsets

Speed (minimum)

-

Opening

2 m/s.

Guidance for specification option:

Standard.

Closing

1.5 m/s.

Format

Roll up (lateral).

Arrangement

Face fitted across opening.

Curtain material

Manufacturer's standard.

Guidance for specification option:

Polyester fabric, PVC-coated on both sides similar to RAL 1003 (Signal yellow), with vision element at a height of 1480 to 2000 mm; insert requirements).

Special variant.

Guidance for specification option:

Special colour, vision panel (custom height/ design), PVC-free, anti-static, food safe (comparable with FDA requirements), antistatic, hardly flammable (B1).


Consult manufacturer for details and insert requirements.

Frame and guides

-

Material

Manufacturer's standard.

Finish and colour

White.

Guidance for specification option:

RAL 9005.

Special order.

Guidance for specification option:

Insert requirement.

Operation

Automatic.

Accessories

None.

Airlock.

Guidance for specification option:

Reduces waiting times, accelerates processes.

Anti-crash protection.

Guidance for specification option:

For enhanced safety.

Combination.

Guidance for specification option:

Combined protection for highly frequented external doors (SPACELITE or SECTIOLITE doors).

Double skin.

Guidance for specification option:

A second skin for greater protection.

Escape route.

External light curtain.

Guidance for specification option:

For enhanced safety.

External photo eye.

Guidance for specification option:

For enhanced safety.

Imprinting.

Laser sensor.

Guidance for specification option:

For enhanced safety.

Optoelectronical.

Guidance for specification option:

sensor integrated into the door leaves, with power supply via energy chain or trailing cable.

Photoelectric barrier.

Pulse transmitter.

Guidance for specification option:

  • Pulse transmitter, mushroom button.
  • Pulse transmitter, non-contact radar switch.
  • Pulse transmitter, pull switch.
  • Pulse transmitter, radio control.
  • Pulse transmitter, reflection light scanner.
  • Pulse transmitter, induction loop.

Radar sensor.

Skin designs.

Switches.

Manufacturer guidance

Not all options can be combined with each other. Consult manufacturer for details.

Size (w x h)

Guidance for specification option:

Insert requirements.

Width: 3800–9000 mm.

Height: 2100–6000 mm.

Drive/ Control

Gear motor with double brake (with emergency release lever).

Guidance for specification option:

Manufacturer's standard; closed when de-energized.

Gear motor with double brake (without emergency release lever.

Guidance for specification option:

Open when de-energized.

Manufacturer guidance

4 kW frequency converter control 400 V/ 50 Hz.

Sustainability data

Contains Red List materials

No

Country of product manufacture

Germany

Material

Polyester

Guidance for specification option:

PVC-coated fabric.

BIM objects

Platform Compatible Version
Revit
 -

1
