NOVOSPRINT® Syncro Door - High Speed Door

Verified by manufacturer 3 days ago

Dortek Ltd

NOVOSPRINT high speed doors have two leaves that can be activated independently of each other in one opening.

Jump to:
+44 (0)1482 226848 Website

Application

High speed doors provide a passage for large motor and rail vehicles to get through. Suitable for the following applications:

  • Industrial.
  • Logistics.
  • Automotive.
  • Retail.
  • Food industries.
  • Cold rooms.
  • Pharmaceutical.
  • Distribution centres.

Description

High-speed, double-leaf, spring force door.

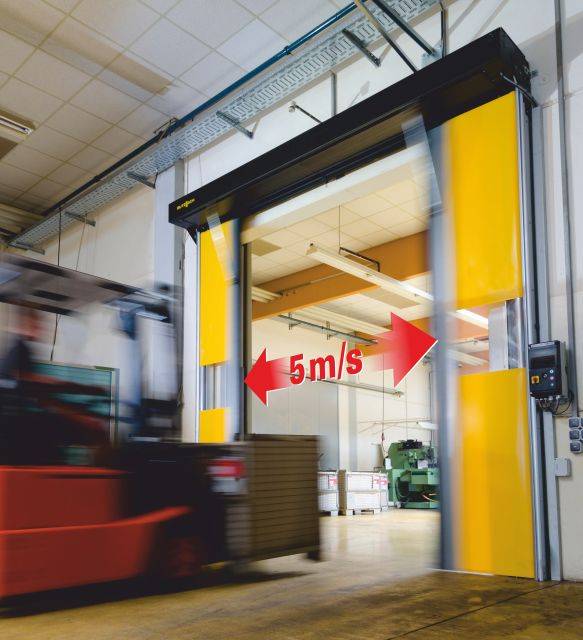

The Novosprint fast acting door has a horizontal opening principle, this high-speed door features the latest generation of technology. Both door wings open simultaneously by spring force, rolling up into a compact upright profile. Thanks to the “Sprint” add-on, the door achieves a top speed of up to 5 m/s. A reliable electric motor closes it immediately.


Features and benefits:

  • Dortek High speed doors can be combined with a large number of control and security options.
  • Spring force pulls both doors open at the same time and rolls them into a compact stand profile.
  • Width up to 4.5 m and height up to 4.5 m.
  • Can incorporate closing edge which is monitored by an optoelectronical sensor integrated into the door leaves, with power supply via energy chain or trailing cable.
  • Suitable for fast logistics processes in the hall, forklift traffic, entry air locks.
  • Opens at up to 5 m/s (with option Sprint). It closes again immediately via a reliable electric motor.
  • Designed for 350 000 operations annually.
  • Opening speed: 3.5 m/s (maximum).
  • Opening speed SPRINT (single skin only): 5 m/s (maximum).
  • Closing speed: 1.5 m/s (maximum).
  • Closing speed with light curtain: 2.5 m/s.
  • Operating forces/ safe opening according to EN 13241-1: Fulfilled.
  • Lintel height standard: 330 mm.
  • Lateral space required motor side/ non-motor side: 350/ 350 mm.
  • Total depth required: 420 or 520 mm.
  • Frame: Horizontal cross-beam, vertical jam and vertical profile sheet metal.
  • Emergency operation: With Bowden cable lever, self-opening.

General information

Color

White

Yellow

Material

Polyester

Guidance for specification option:

PVC-coated polyester fabric (door).

Shape

Square

Rectangle

Width

1000 mm

4500 mm

Manufacturer guidance

Minimum width, 1000 mm; maximum width 4500 mm.

Height

1700 mm

4500 mm

Manufacturer guidance

Minimum height, 1700 mm; maximum height, 4500 mm.

Warranty description

One year

Guidance for specification option:

Manufacturing and installation defeats 12 months in line with Dortek warranty (details available on request). Guaranteed 500 000 openings of the door’s springs (first set of springs, max 24 months).

Uniclass

Pr_30_59_24_38 High-speed doorsetsPrimary

CAWS

L20/570 High-speed doors

Product range

Doors / High Speed Doors

Specification data - High-speed doorsets

Speed (minimum)

-

Opening

3.5 m/s.

Closing

1.5 m/s.

Format

Roll up.

Curtain material

Manufacturer's standard.

Guidance for specification option:

Polyester fabric PVC coated on both sides similar to RAL 1003, with vision element at a height of 1480 to 2000 mm.

Special variant.

Guidance for specification option:

Special colour, vision panel, PVC-free, anti-static, food safe (comparable with FDA requirements), antistatic, hardly flammable (B1). Consult manufacturer for details.

Frame and guides

-

Material

Stainless steel.

Finish and colour

Yellow.

White.

Stainless steel.

Sendzimir galvanized.

Special order.

Guidance for specification option:

Insert requirement.

Operation

Automatic.

Accessories

None.

Guidance for specification option:

Not all options can be combined with each other. Consult manufacturer for details.

Airlock.

Anti-crash protection.

Combination.

Guidance for specification option:

Combined protection for highly frequented external doors (SPACELITE or SECTIOLITE doors).

Double skin.

Escape route.

External photo eye.

Ground closure.

Imprinting.

Laser sensor.

Optoelectronic safety light curtain.

Guidance for specification option:

Integrated in the door leaves, with power supply via energy chain or trailing cable.

Optoelectronical sensor.

Guidance for specification option:

integrated into the door leaves, with power supply via energy chain or trailing cable.

Photoelectric barrier.

Pulse transmitter.

Guidance for specification option:

  • Pulse transmitter, mushroom button.
  • Pulse transmitter, non-contact radar switch.
  • Pulse transmitter, pull switch.
  • Pulse transmitter, radio control.
  • Pulse transmitter, reflection light scanner.
  • Pulse transmitter, radar motion sensor.
  • Pulse transmitter, induction loop.

Radar sensor/ crash guard.

Skin designs.

Sprint.

Switches.

Transport rail.

Guidance for specification option:

In preparation for the unhindered flow of goods.

Size (w x h)

Guidance for specification option:

Insert requirements, width/ height up to 4500 mm.

Others are available, consult manufacturer for details.

Drive/ Control

Gear motor with double brake (with emergency release lever).

Guidance for specification option:

Manufacturer's standard. Closed when de-energized.

Gear motor with double brake (without emergency release).

Guidance for specification option:

Open when de-energized.

Manufacturer guidance

With BDC E800 F frequency converter control.

Sustainability data

Contains Red List materials

No

Country of product manufacture

Germany

Material

Polyester

Guidance for specification option:

PVC-coated polyester fabric (door).

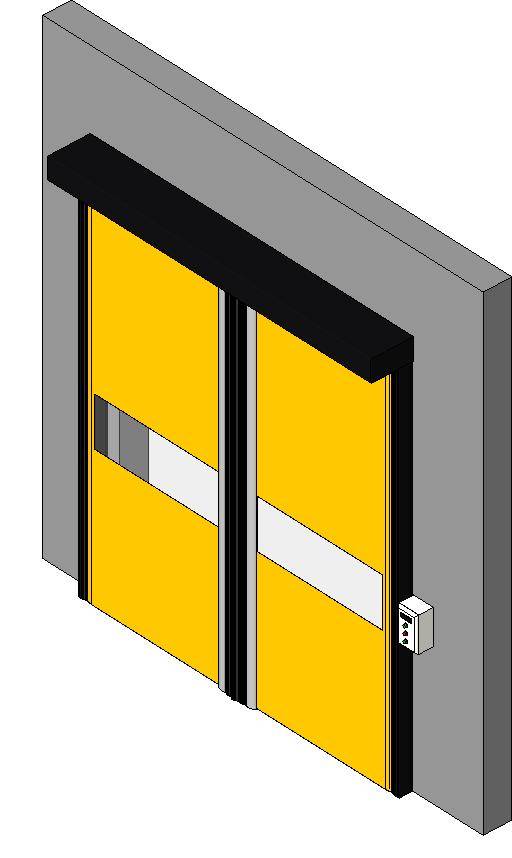

BIM objects

Platform Compatible Version
Revit
 -

1

Literature

4. Dortek Industrial Doors Brochure
