Overflow Detection System

Verified by manufacturer over a year ago

KWC DVS Limited

The Overflow Detection System is designed for companies with large numbers of WC's on site. The control system can monitor up to 20 cubicles and can be remote sited.

Jump to:
BOS
+44 (0)1246 458900 Website

Description

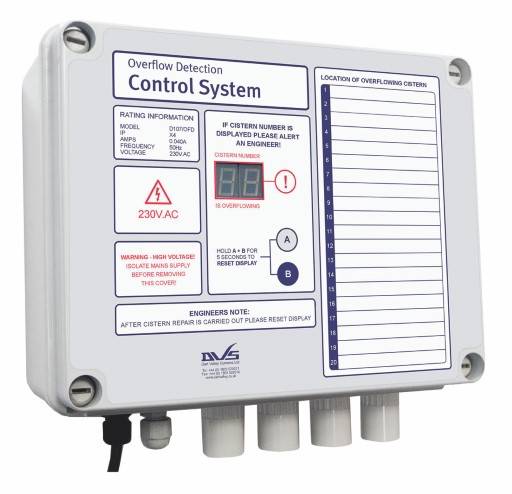

The control system can monitor up to 20 cubicles and is usually remotely sited; in the cleaner's cupboard at the end of a toilet block for example. The digital display on the front of the control box makes it easy to identify which cistern is overflowing. There is also the facility to have an additional warning light panel outside the cleaner's cupboard which will flash until the problem is rectified. You can also monitor the OFD control system from a BMS system if necessary.


This download contains BIM objects that represent the following products:

  • AC07-001


Features and benefits:

  • Overflow Detection System - Controls Box for Duct Mounting.

General information

Color

Grey

Finish

Gloss

Material

Plastic

Shape

Rectangle

Length

96 mm

Width

256 mm

Height

200 mm

Uniclass

Ss_75_70_52_96 Water supply control systemsPrimary

Specification data - Water supply control systems

Dimensions

96 x 256 x 200 mm.

Finish/ Colour

Semi-gloss, grey.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1
