Wave-On Sensor for Shower Control

Verified by manufacturer over a year ago

KWC DVS Limited

The Shower control sensor is to be used in conjunction with the 2 Channel Control System and fixed wall mounted or ceiling mounted showerhead.

Jump to:
BOS
+44 (0)1246 458900 Website

Application

Shower applications.

Description

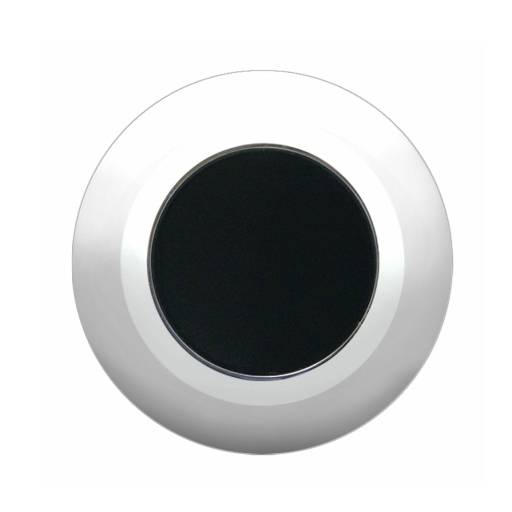

The Shower control sensor is to be used in conjunction with the 2 Channel Control System and fixed wall mounted or ceiling mounted showerhead. It is constructed from a 316 Stainless steel bezel making it robust and resistant to vandalism and ligatures.


This download contains BIM objects that represent the following products:

  • SH00-001.

General information

Color

Silver

Finish

Polished

Material

Copper

Shape

Other

Guidance for specification option:

Tubular with bezel.

Length

50 mm

Width

50 mm

Height

53 mm

Uniclass

Ss_75_70_52_96 Water supply control systemsPrimary

CAWS

N13/40 Shower units

N13/375 Shower units

N13/420 Proximity sensor control units

Specification data - Water supply control systems

Equipment interconnectivity

Wired.

Concealed installation

Required.

Control equipment power supply

Mains supply.

Mounting

Wall mounted.

Sustainability data

Contains Red List materials

No

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1
