Water Isolation System

Verified by manufacturer over a year ago

KWC DVS Limited

The Water Isolation System is designed to shut off water supply to washroom facilities when they are not occupied, preventing water wastage and possible damage from overflows.

Jump to:
BOS
+44 (0)1246 458900 Website

Application

To shut off water supply to washroom facilities when they are not occupied, preventing water wastage and possible damage from overflows.

Description

The Water Isolation System is designed to shut off water supply to washroom facilities when they are not occupied, preventing water wastage and possible damage from overflows. The water isolation system works by fitting the sensor above the entrance to the washroom facilities. The sensor is capable of detecting movement up to 6m from the control box. If the washroom is empty, the system will shut off the water supply, preventing wastage from leaks and overflows, avoiding flooding and damage to the washroom.


This download contains BIM objects that represent the following products:

  • AC04-001


Features and benefits:

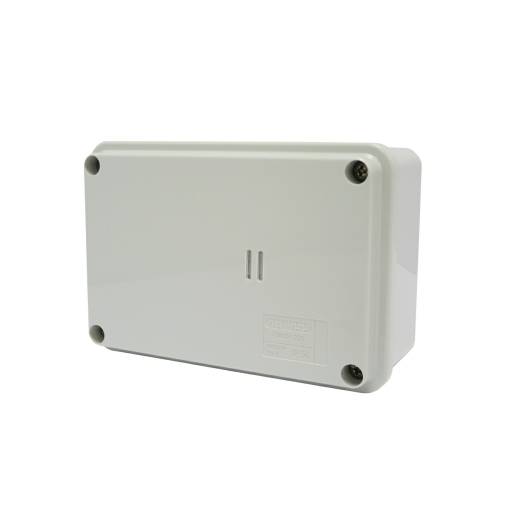

  • Water Isolation System - Controls Box for Duct Mounting.

General information

Color

Grey

Finish

Gloss

Material

Plastic

Shape

Rectangle

Length

55 mm

Width

128 mm

Height

88 mm

Uniclass

Ss_75_70_52_96 Water supply control systemsPrimary

Specification data - Water supply control systems

Finish:

Semi-gloss.

Colour:

Grey.

Dimensions

55 x 128 x 88 mm.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1
