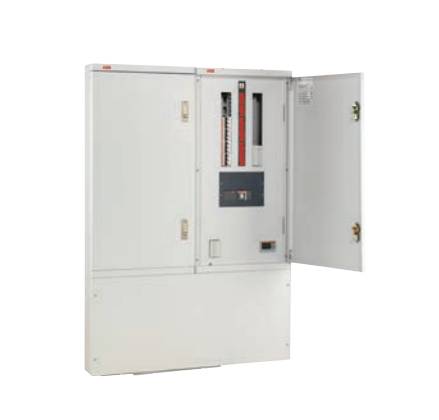

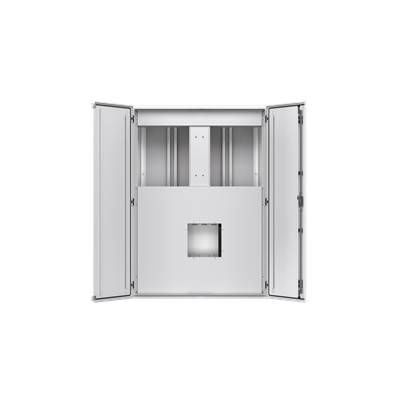

Panel Board MCCB – Protecta Power - Distribution Board

Verified by manufacturer 28 days ago

1400 mm panel board EPX-PB408

ABB Ltd Variant:

Panel board supporting the transformation of smart electrical distribution within commercial, institutional, infrastructure and industrial buildings.

Jump to:
+44 (0)24 7636 8500 Website

Application

For smart electrical distribution within:

  • Commercial buildings.
  • Mixed residential/ multi-dwelling.
  • Industrial/ transportation.
  • Institutional buildings.

Description

Features and benefits:

  • Designed to handle demands of high-power applications, ensuring stable and reliable power distribution up to 800 A.
  • Rigorous testing and inspection to ensure compliance with quality requirement.
  • Easy to install, operate, and maintain.
  • User-friendly features such as pluggable circuit breakers and clear labelling and marking.
  • Wide range of accessories and add-ons available.
  • Can be fitted with different types of meters, Real-time monitoring of power usage, status.

General information

Finish

Painted

Material

Steel

Shape

Rectangle

Length

300 mm

Width

1000 mm

Height

1400 mm

1700 mm

2000 mm

Warranty description

One year

Uniclass

Pr_60_70_22_22 Distribution boardsPrimary

CAWS

V90/320 Distribution boards

Specification data - Distribution boards

Rated operational voltage (Ue)

Guidance for specification option:

Customized layout; consult manufacturer for options and insert requirements.

Incoming device

Guidance for specification option:

Customized layout; consult manufacturer for options and insert requirements.

Outgoing devices

-

Type

Guidance for specification option:

Customized layout; consult manufacturer for options and insert requirements.

Quantity

Eight.

Busbars and connections

-

Type

Guidance for specification option:

Customized layout; consult manufacturer for options and insert requirements.

Rated current (InA)

400 A.

Rated short-time withstand current (Icw)

50 kA for one second.

Neutral and earth bars

Guidance for specification option:

Customized layout; consult manufacturer for options and insert requirements.

Neutral terminations

Guidance for specification option:

Customized layout; consult manufacturer for options and insert requirements.

Spare ways

Guidance for specification option:

Customized layout; consult manufacturer for options and insert requirements.

Enclosure

-

Ingress protection (minimum)

Manufacturer's standard.

Material

Manufacturer's standard.

Finish

Manufacturer's standard.

Colour

Manufacturer's standard.

Locking mechanism

Manufacturer's standard.

Accessories

Guidance for specification option:

Customized layout; consult manufacturer for options and insert requirements, or omit.

Dimensions

1400 x 1000 x 300 mm.

Sustainability data

Material

Steel
