Pendock Washroom - Classic Cubicle & Washroom Systems - Washroom & Cubicle System

Verified by manufacturer 4 months ago

Pendock Third party certifications:
  • Constructionline Gold

    Constructionline Gold

    Certificate type

Cubicle and washroom system.

Jump to:
+44 (0)1952 580 590 Website

Application

Suitable for low traffic applications.

Description

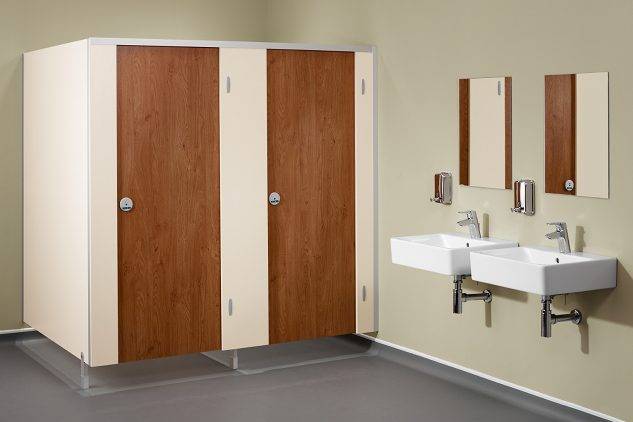

Manufactured from UKTR compliant 18 mm thick, moisture-resistant MFC (melamine-faced chipboard) with 2 mm PVC edging, the Classic range is particularly suitable for use in washroom schemes where economic considerations and simplicity are key factors during specification or installation.


Featuring a range of standard finish options and durable ironmongery, Classic MFC cubicles provide a versatile and easy fix solution for single and multiple cubicle installations in corner, island or between walls configurations.


The cubicles should be specified in low traffic applications, and they are not recommended for use in high humidity or wet conditions.


Features and benefits:

  • A range of finish and colour options.
  • Durable ironmongery.
  • Highly versatile.
  • Economic option.
  • Standard and bespoke options.
  • Aluminium ironmongery as standard and the option of stainless steel for increased durability.
  • UKTR compliant and sustainably sourced moisture-resistant chipboard with a melamine facing to each side.
  • 2 mm PVC edging.
  • DDA and Approved Document M compliant cubicles and fittings are available as part of the Classic range.

General information

Color

Other

Finish

Laminated

Material

MFC

PVC

Shape

Rectangle

Length

Bespoke

Width

850 mm

Guidance for specification option:

Standard.

Bespoke

Height

1950 mm

Guidance for specification option:

Standard.

Bespoke

Uniclass

Ss_25_12_60_60 Panel cubicle systemsPrimary

CAWS

K32/120 Panel cubicles

K32/10 Panel cubicles

Specification data - Panel cubicle systems

Panels

Melamine-faced chipboard (MFC).

Panel supports

Aluminium support foot.

Aluminium low support foot.

Stainless steel support foot.

Doors

Melamine-faced chipboard (MFC).

Hardware

Aluminium indicator bolt 'standard'.

Guidance for specification option:

Consult manufacturer for details.

Aluminium indicator bolt 'optional'.

Guidance for specification option:

Consult manufacturer for details.

Stainless steel indicator bolt.

System accessories

Not required.

Vanity units.

Solid surface wash troughs.

IPS duct panels and back panels.

Coat hooks.

Toilet roll holders.

Grab rails.

Ambulant cubicle accessories.

Thickness (overall)

18 mm.

Edge sealing

2 mm thick PVC.

Brackets

Aluminium channel bracket.

Stainless steel channel bracket.

Hinges

Aluminium 'D' hinge.

Stainless steel 'D' hinge.

Stainless steel dual bolt hinge.

Stainless steel gravity hinge.

Headrail

Aluminium 'D' header rail.

Stainless steel 'D' header rail.

Stainless steel channel header rail.

Overall size

-

Manufacturer guidance

Consult manufacturer and insert requirements.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

95 %

Third party certifications

Constructionline Gold

Constructionline Gold

Constructionline Gold
